Rockwell Automation Allen-Bradley IMPACT 1336 Series

6–6 Replacement Parts List
Publication 1336 IMPACT-6.8 – November, 2002

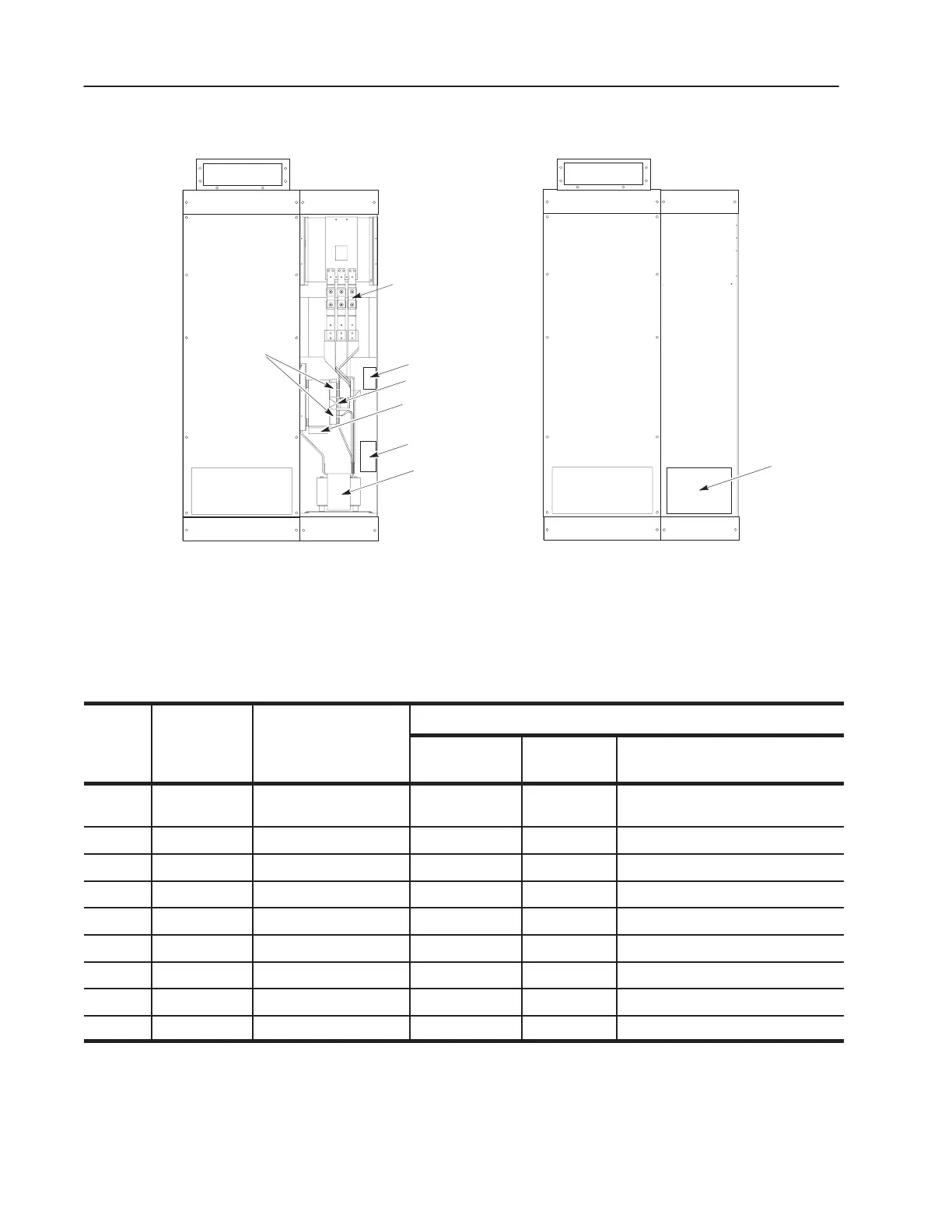

Figure 6.5
Typical Converter Bay Replacement Parts
51
52, 53
59
58
54
55
56
57
Important: This listing is typical. See the schematics supplied for
configured systems for the spare parts list for the
Converter Bay and the enclosure fan.
Table 6.E
Typical Converter Bay Replacement Parts
Callout
Symbol on
Job elate
escr pt on
Procedures
Callout
S mbol on
Job Related
Schematics
Description
Access
1
(Ref: Ch. 3)
Test
(Ref: Ch. 4)
Replacement
(Ref: Ch. 5)
51 F1 – F3,
F1A – F3A
Fuse DNA DNA DNA
52 EA11 Line Loss Relay DNA DNA DNA
53 MOV MOV DNA DNA DNA
54 EA10 Thermal Switches DNA DNA Replacing Converter Thermal Switches
55 – Converter Fans DNA DNA Replacing Converter Fans
56 EA12 DC Snubber Board DNA DNA DNA
57 CH10 DC Bus Inductor DNA DNA DNA
58 – Converter Bridge Diodes DNA DNA Replacing Converter Diodes
59 – Door Fan DNA DNA Replacing Converter Bay Door Fan
1. Access always requires the procedure: Opening the Drive Enclosure.
