5–45Part Replacement Procedures
Publication 1336 IMPACT-6.8 – November, 2002

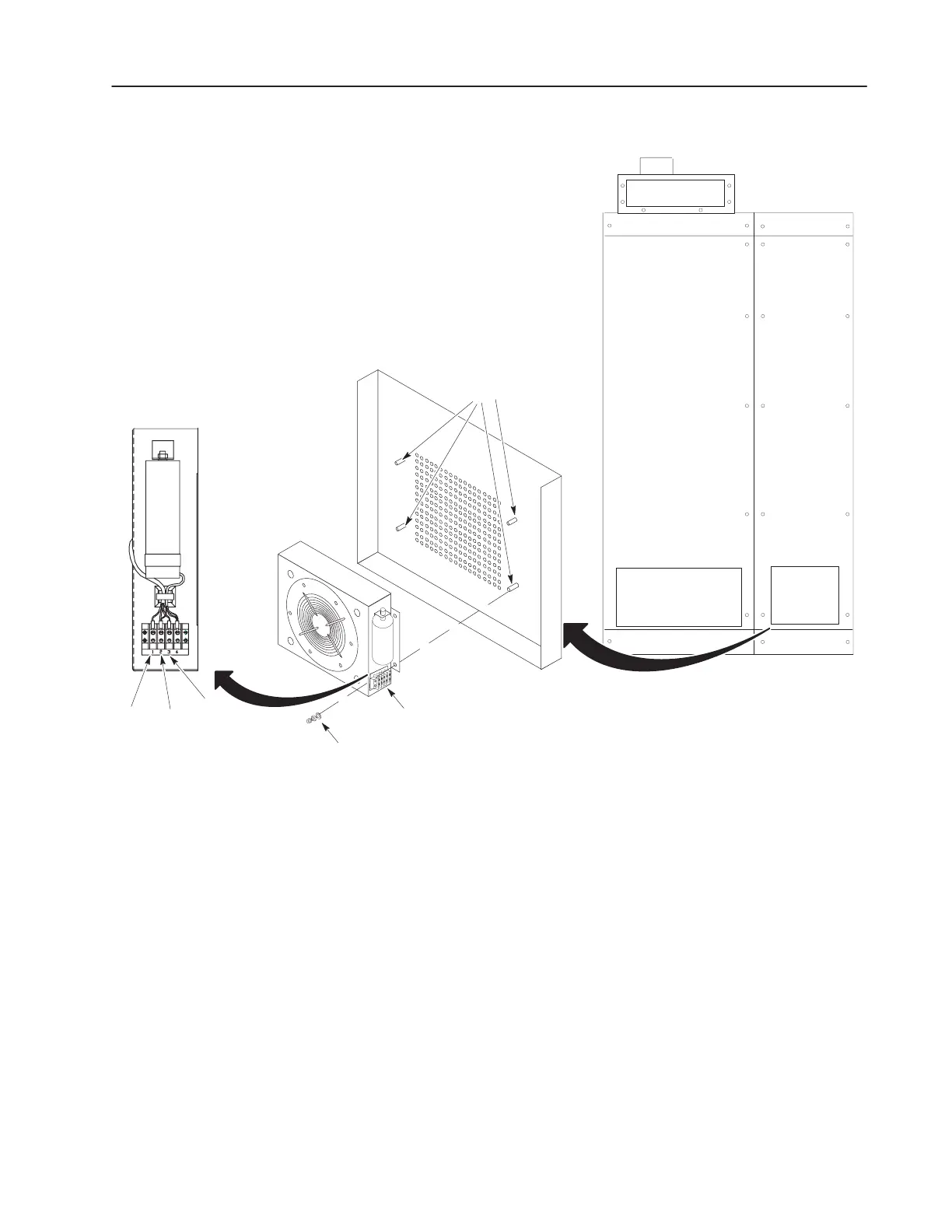

Figure 5.25
Converter Bay Door Fan
Weld Studs
Terminal Block
10-32 Nut, Lock Washer, Flat Washer
Red
White
Green
AB1098
3. Attach the wires to the terminal block located on the side of the
fan assembly as follows:
• The red (or yellow/red) wire goes to terminal 1.
• The white (or yellow/white) wire goes to terminal 2.
• The green wire goes to terminal 3.
Refer to Figure 5.25 for the locations of the terminal block and weld
studs and for the wiring information.
