3–21Access Procedures
Publication 1336 IMPACT-6.8 – November, 2002
3. Remove the capacitor mounting bolt at the top center of the
capacitor frame.
4. Remove the wheel chocks at the bottom of the Capacitor Bank
Assembly.
!
ATTENTION: Hazard of tipping and severe injury
exists. This process requires two people. The platform
must be able to support 900 kg (2,000 lbs).
5. Using the Motor Buses as a handle, pull the assembly onto a
user-supplied platform. Refer to Figure 3.13.

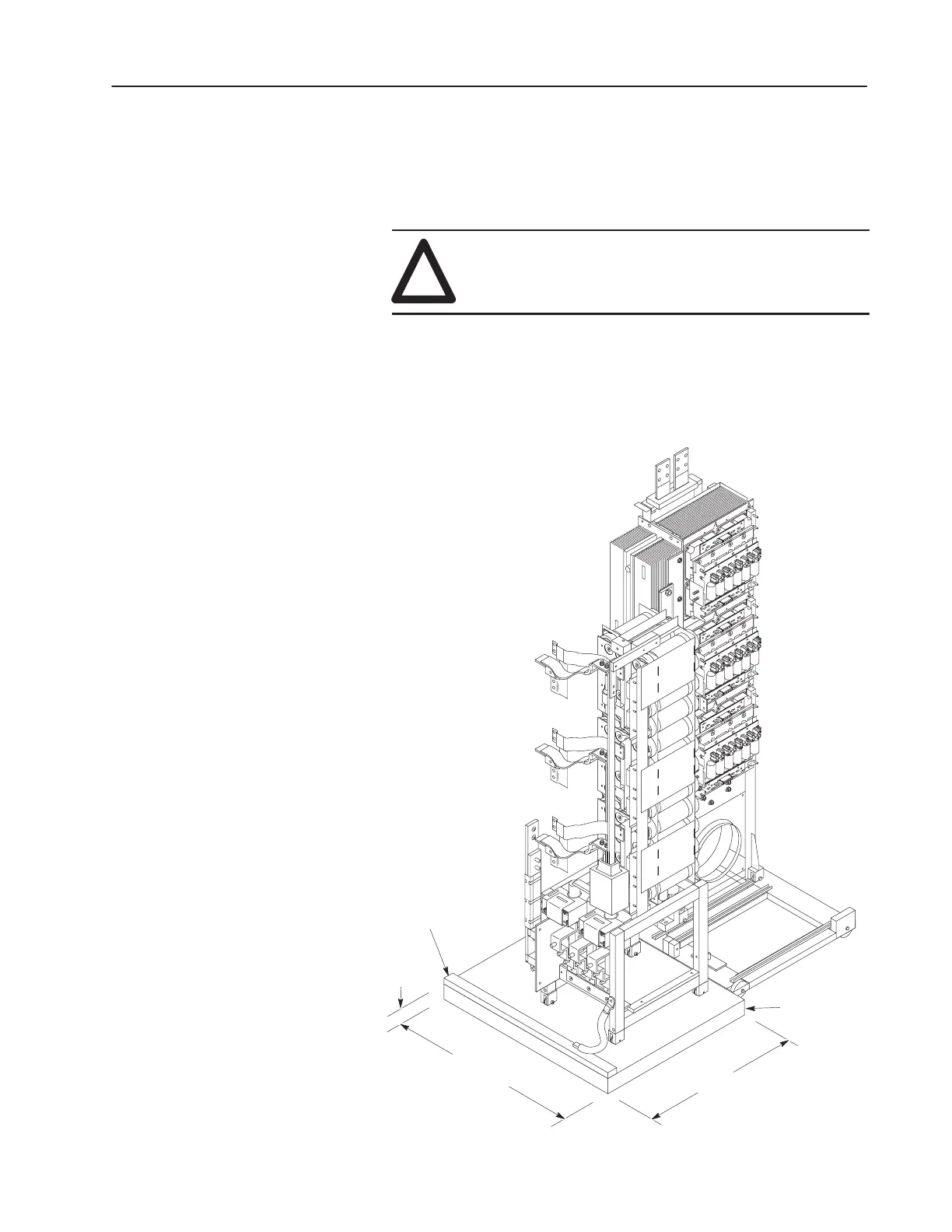

Figure 3.13
Capacitor Bank Assembly on Service Platform
AB0986A
46 to 76 cm
(18 to 30 in.)
64 cm
(25 in.)
Height to
Suit Installation
Stop Block
User Supplied
Platform
