176 Rockwell Automation Publication 2099-UM001G-EN-P - December 2022
Appendix B Interconnect Diagrams
Customer-supplied 24V DC Power Supply Notes (Kinetix HPK motors)
• Kinetix HPK motors require a customer-supplied 460V AC single-phase
supply, rather than a 24V DC supply. However, the brake current ratings
required by Kinetix HPK motors are higher than the contact rating of the
GPR connector. Therefore, if using an Kinetix HPK motor with a brake, it
is recommended that a customer-supplied, external interposing relay or
equivalent circuit be used. See Figure 86
below.
• The contact connected to GPR1+ and GPR1- is rated 2 Amps inductive
@ 250V AC/30 VDC maximum.
• See the Kinetix Motion Control Selection Guide, publication
KNX-
SG001 for Kinetix HPK motor brake ratings.

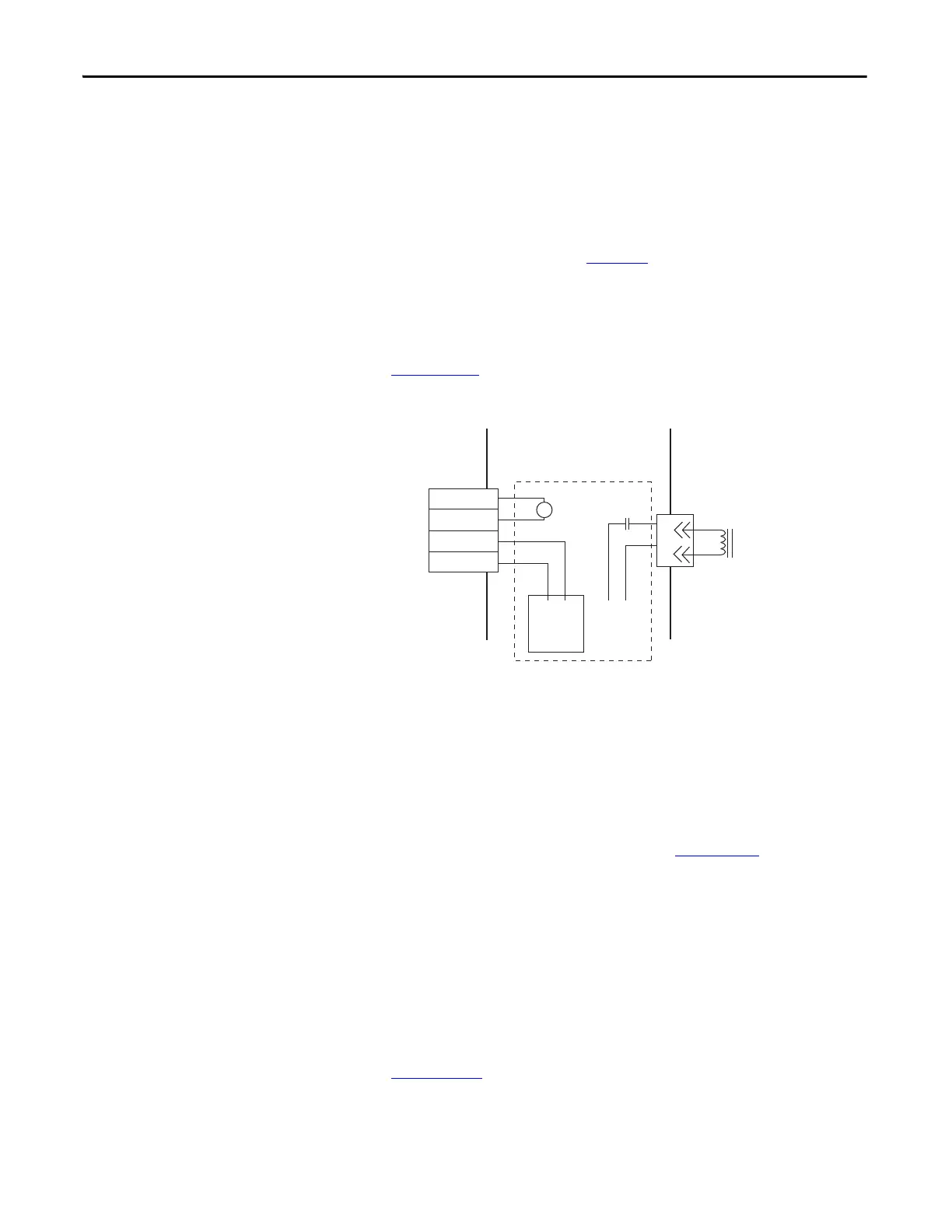

Figure 86 - Customer-supplied Kinetix HPK Motor Brake Wiring Example
Kinetix HPK Motor Blower Connections
• The Kinetix HPK motor blower must be used to ensure proper motor
performance.
• The blower connections can use either a Star (460 V AC) or Delta (230V
AC) three-phase configuration. See the Kinetix HPK Asynchronous Servo
Motor Installation Instructions, publication HPK-IN001
, for connection
diagrams.
• Kinetix HPK Motors with a brake and without a brake have different
blower assemblies and, therefore, have different connection and electrical
characteristics.
• The Kinetix HPK motor has a conduit box with terminals/leads for
external power connections.
• See the Kinetix Motion Control Selection Guide, publication
KNX-
SG001 for Kinetix HPK motors blower voltage and current
specifications.
BR+
BR-
A
C
3
2
4
1
GPR1-
GPR1+
COM
24VDC
24V DC
Supply
+ -
C1
C1
*Dashed lines
denote customer
supplied components.
L1 L2
Kinetix 7000
Drive
Kinetix HPK Motor
460V AC
Supply
To Next Page
