Chapter 6 Configure the Module for a SmartGuard Controller
9. Click Add.
This limits the packet size for normal communication. If detailed status is
required when a fault occurs, that data can be read explicitly via MSG
instructions.
10. Repeat steps 3…9
for each connection, being sure to assign input and
output connections.

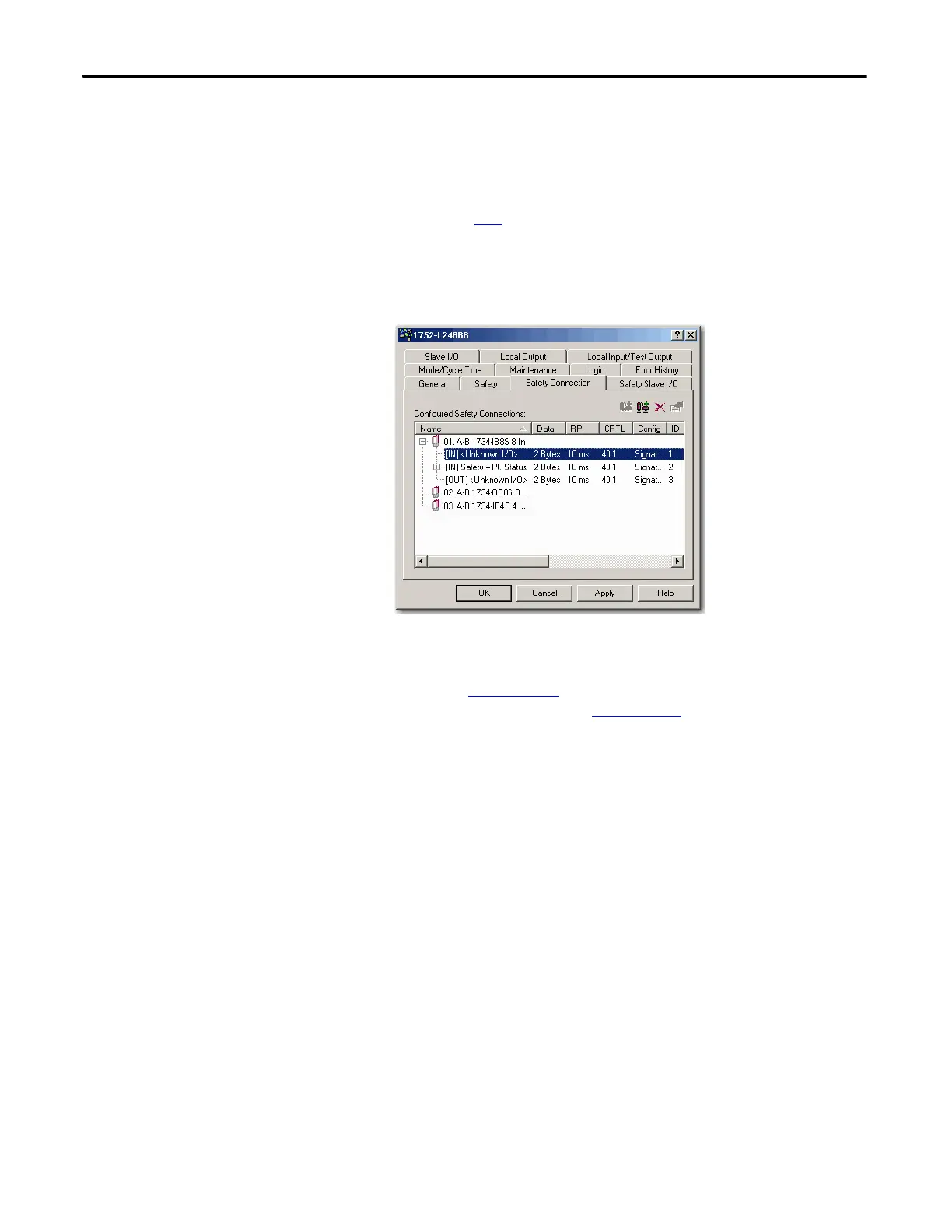

Notice that the connections for the 1734-IB8S module have 2 bytes. If you
had selected individual point status, the input connection would be
5 bytes.
11. Click Apply.
For further details, see the SmartGuard 600 Controllers User Manual,
publication 1752-UM001
, and SmartGuard 600 Controllers Safety
Reference Manual, publication 1752-RM001
.
