114 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 6 Frame 7 Components

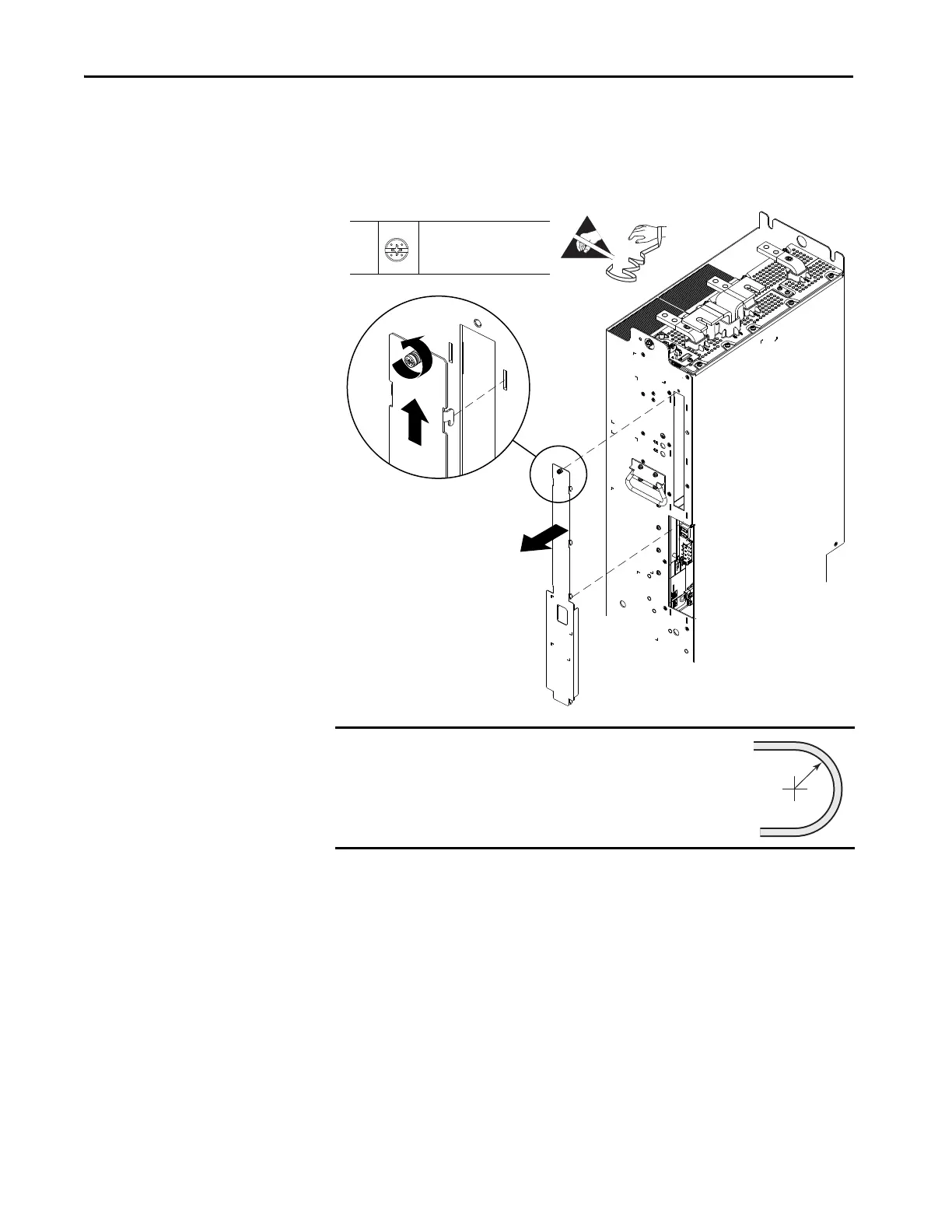

5. Loosen the thumbscrew that secures the connection cover to the front of
the power module.
6. Use the screw to lift the connections cover up and off the power module
chassis.
IMPORTANT
Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
5
–
P2 or F - 6.4 mm (0.25 in.)
1.8 N
•m (16 lb•in)
=
6
50 mm
(2 in.)
