162 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 7 Control Bay and Control Pod Components

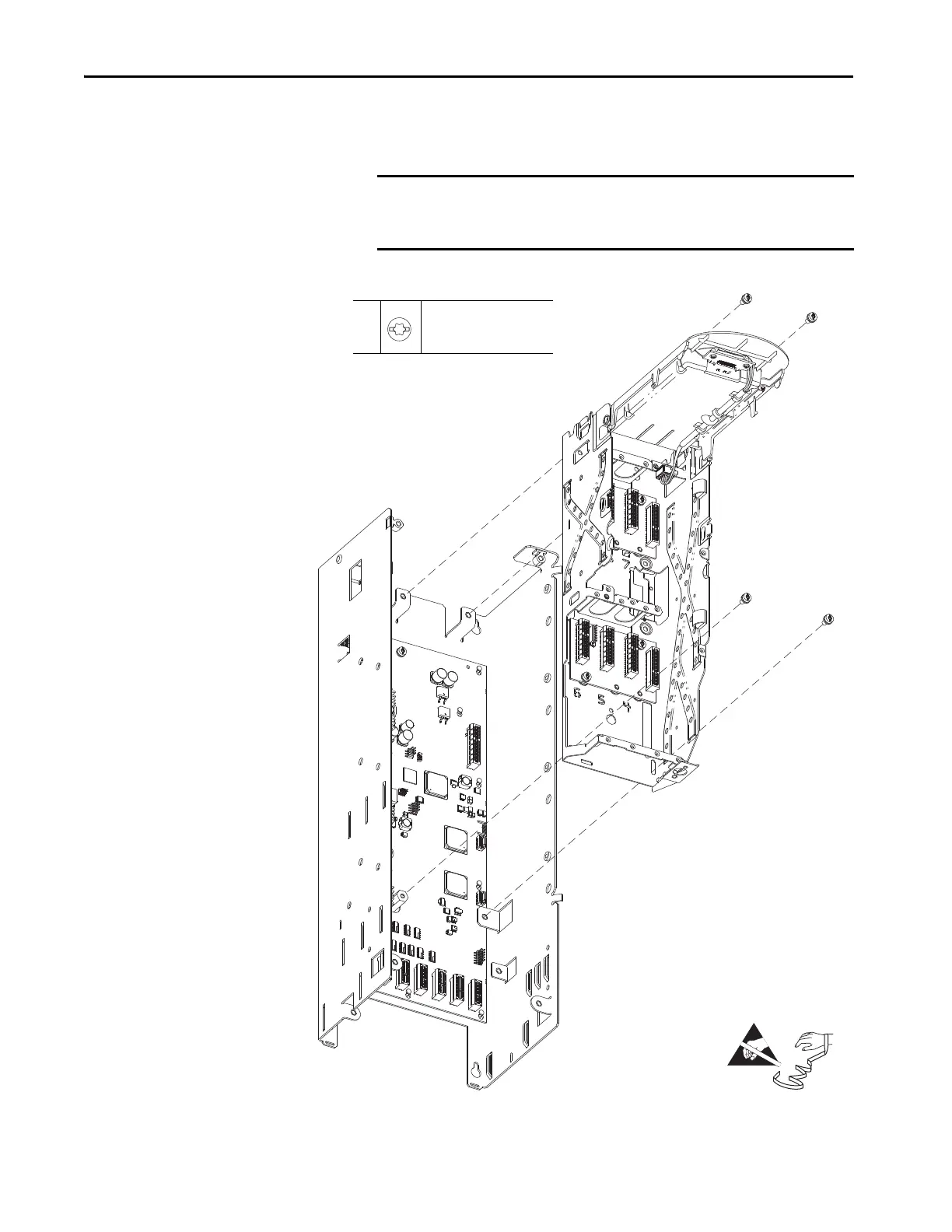

20. Remove the four M4 x 8-mm screws that secure the control pod chassis to
the standoffs on the control panel, then remove control pod chassis.
IMPORTANT The four M4 x 8-mm screws that secure the control pod chassis to the
control panel are not retentive. Take steps to be sure that the screws do
not fall into the drive below.
20
M4 x 8 mm
T20 or F - 6.4 mm (0.25 in.)
2.6 N
•m (23 lb•in)
=
