296 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 11 Start Up After Repairs

3. For drives and bus supplies, measure the 240V AC control voltage at the

appropriate terminals:

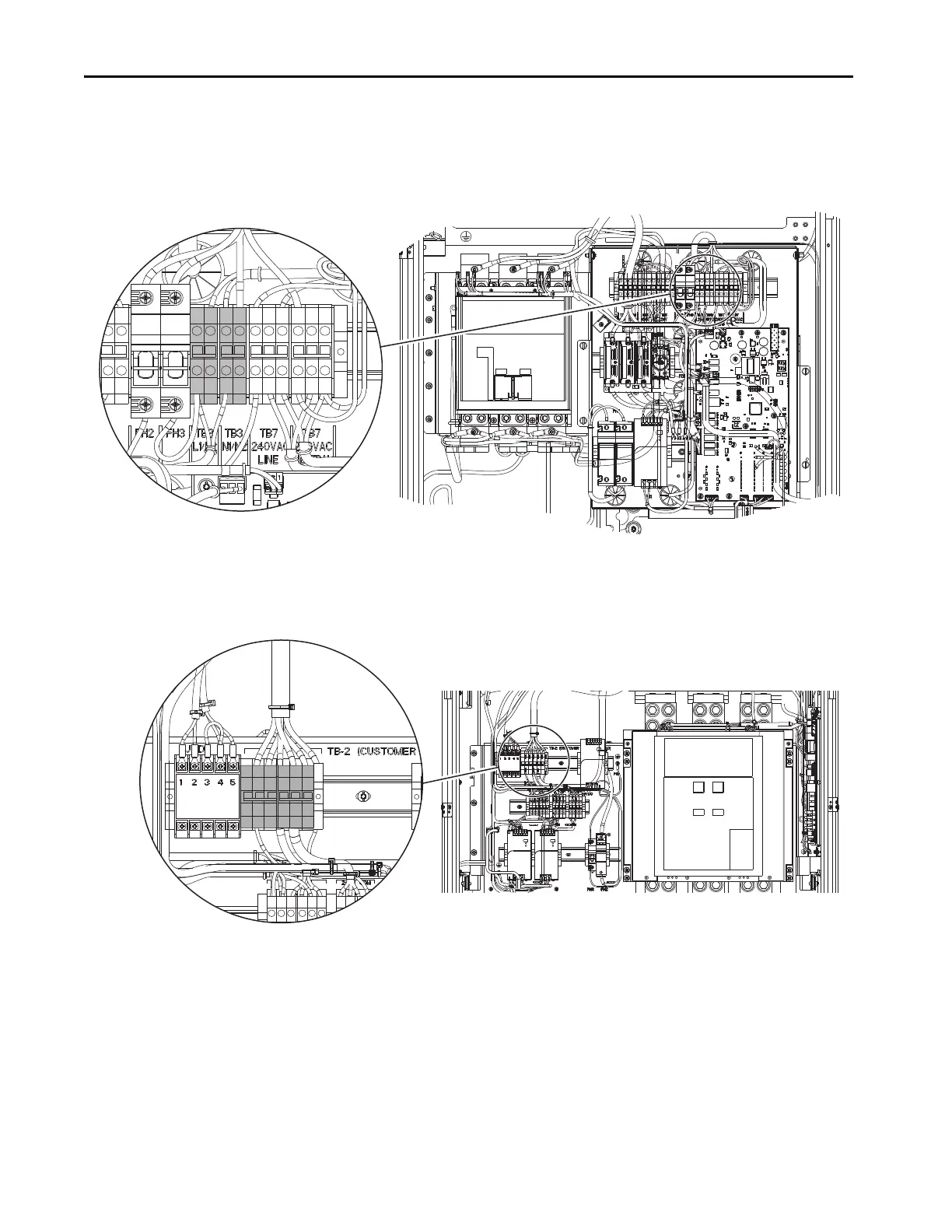

• For frame 7 drives and bus supplies, measure terminals L and N on

terminal block TB3.

• For frames 8…15 drives and bus supplies, in the input bay, measure

terminals L and N on terminal block TB2.

Frame 10 Input Bay Shown
