Rockwell Automation Publication 750-TG100B-EN-P - June 2019 49

Component Inspection and Test Procedures Chapter 3

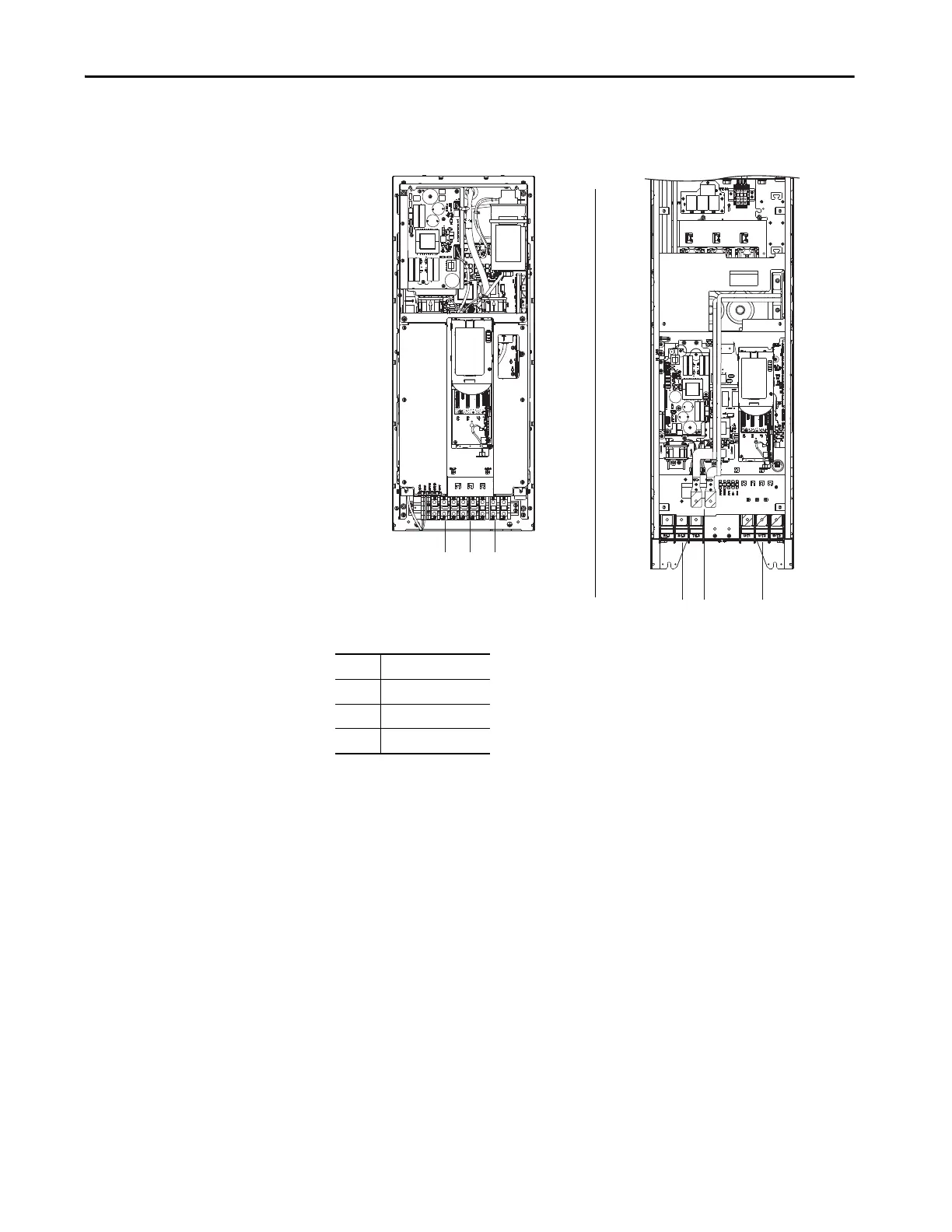

Figure 5 - Frames 5 and 6 Power Terminal Locations

Item Name

1 R/L1, S/L2, T/L3

2DC+, DC–

3 U/T1, V/T2, W/T3

Frame 5 Frame 6

12 3
