Rockwell Automation Publication 750-TG100B-EN-P - June 2019 79

Frame 6 Components Chapter 5

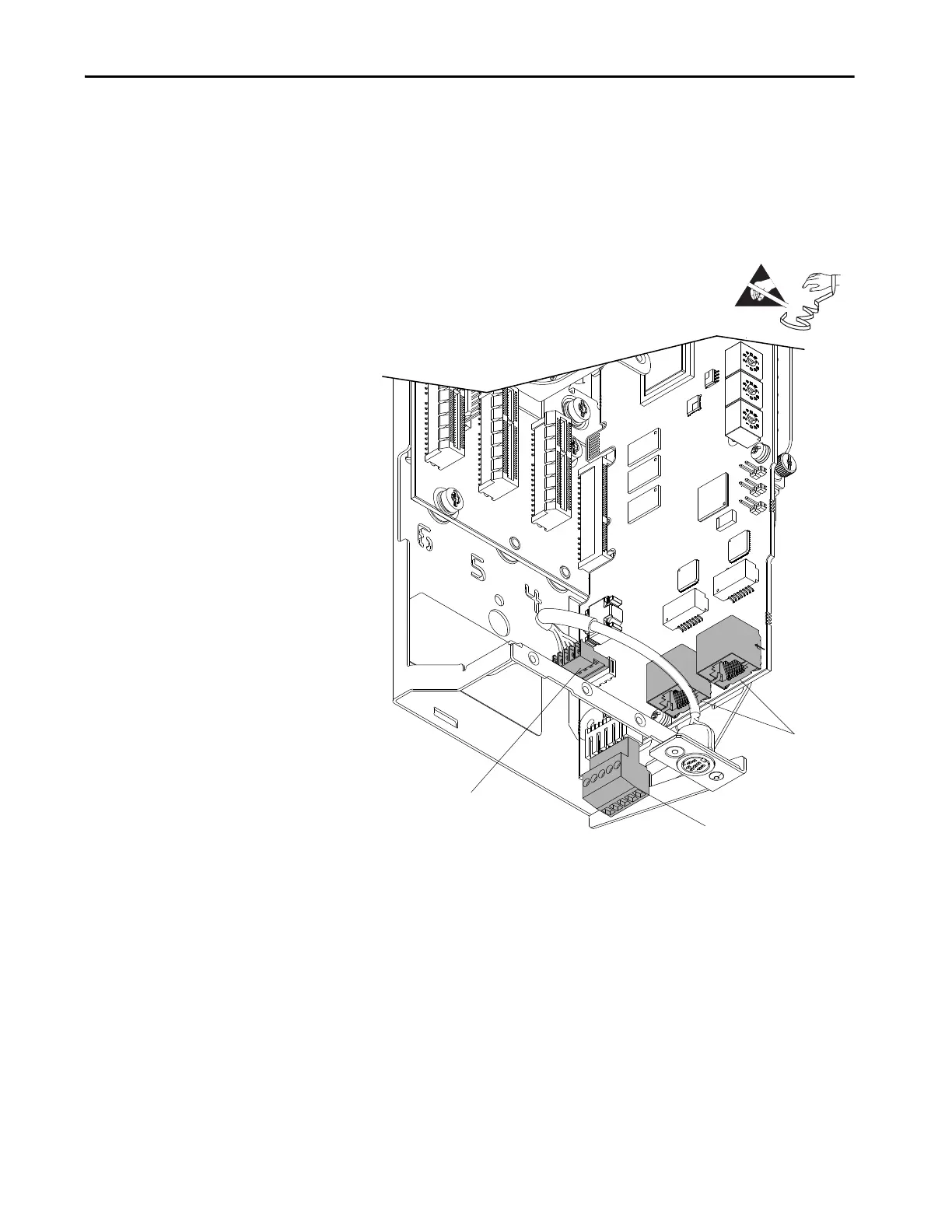

6. Disconnect any Ethernet cables from the ports on the bottom of the main

control board.

7. Disconnect the plug-in terminal block (TB1) on the bottom of the main

control board.

8. Disconnect the HIM plug-in terminal block for the mini-DIN (port 2)

connector on the control board.

Control Pod Shown Removed

from Drive for Clarity Only.
