Design Guidelines

Transport System Design

116 MagneMotion

Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

Guideway Examples

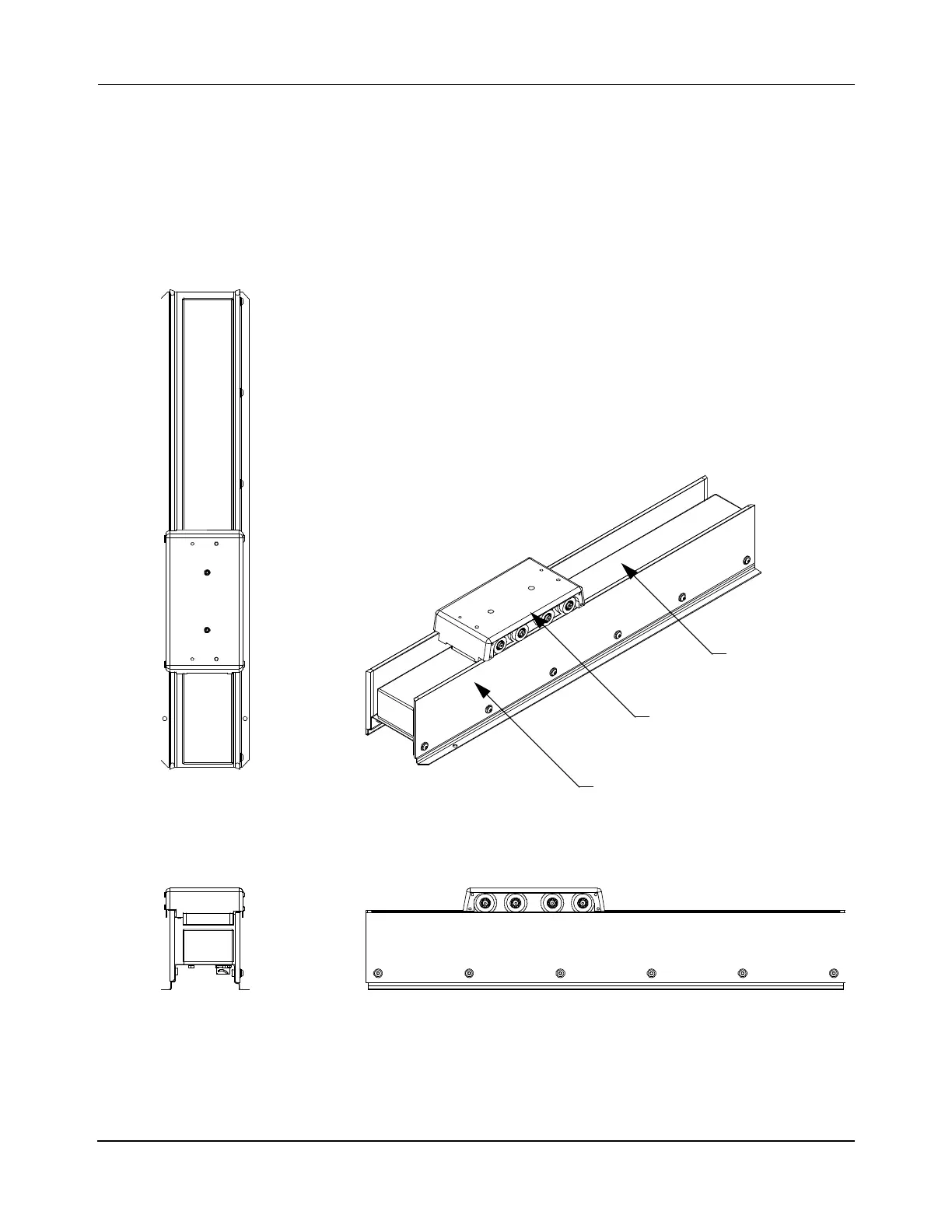

Figure 3-40 provides an example of a guideway and vehicle where the guideway is con-

structed of stiff steel sides and a sheet metal base. The vehicle has flanged wheels that ride on

the top of the side plates, which holds the vehicle and magnet array in the correct relationship

to the motors.

NOTE: Vehicles are not held in place if power is removed.

Figure 3-40: Guideway Example #1

Vehicle

Motor

Guideway
