Rockwell Automation MagneMotion QuickStick HT User Manual

Design Guidelines
Transport System Configuration
122 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Moving Path Configuration

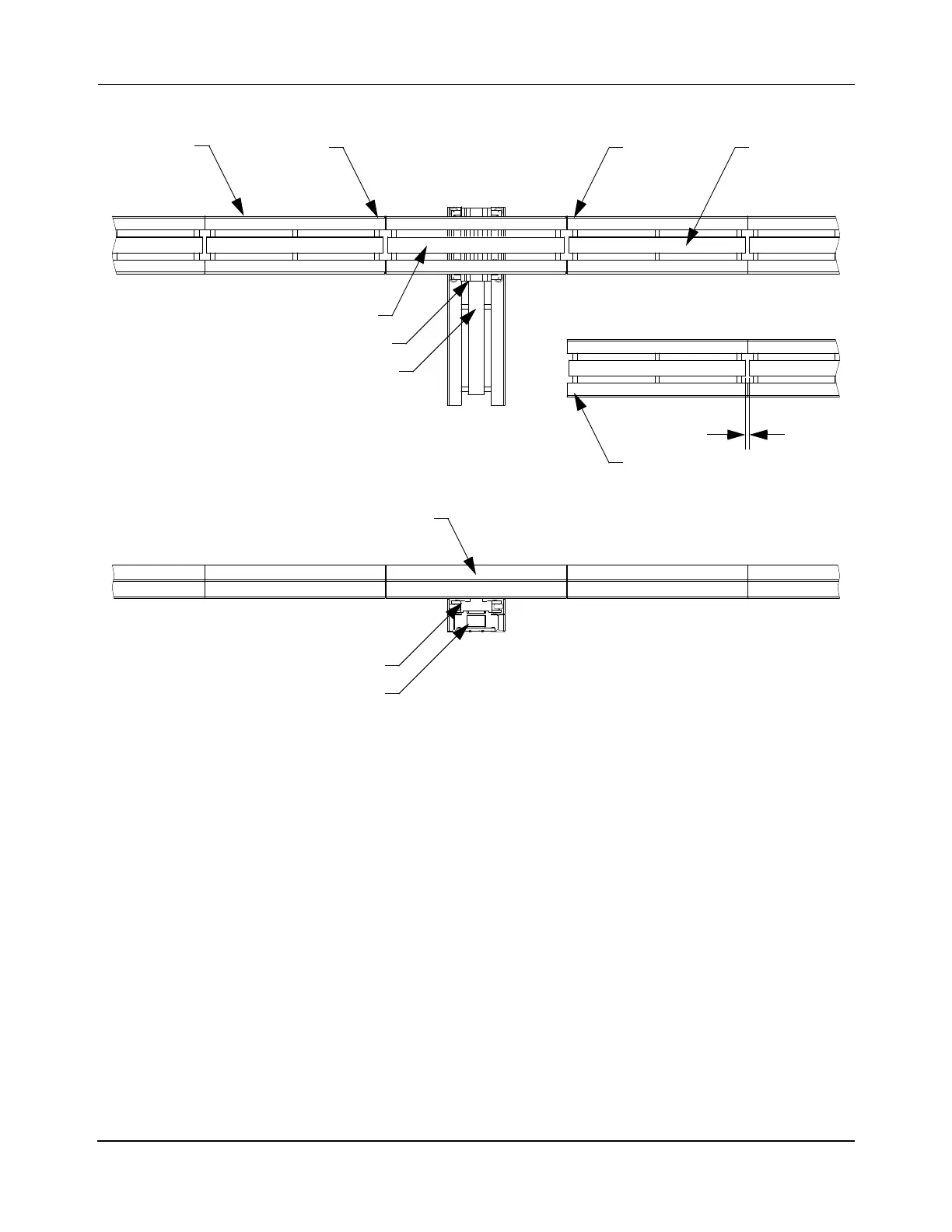

Figure 3-46: Moving Path Configuration
• Node type: Moving Path.
• Provides single or multiple moving paths.
• Provides multiple entries and exits (total of twelve).
• QuickStick HT motor can be used to provide movement of the moving path.
• Moving path can consist of multiple motors.
• Motor Gaps can vary from section to section of the guideway (entry, exit), but keep the
motor gaps consistent in each section of the guideway.
NOTE: Different size gaps between motors must be identified in the Node Controller
Configuration File (see the QuickStick Configurator User Manual,
MMI-UM009).
Guideway
QSHT Motor
Motor Gap
Entry/Exit
Side View
Top View
Drive Mechanism
Entry/Exit
Motor on Moving Path
Entry/Exit
Shuttle
Drive Mechanism
Shuttle
Moving Path
