Rockwell Automation MagneMotion QuickStick HT

Specifications and Site Requirements
Mechanical Specifications
124 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Mechanical Specifications
All drawings within this manual are generic and do not reflect specific configurations of the
QuickStick HT components. To obtain current drawings, contact ICT Customer Support.
1 Meter Motor

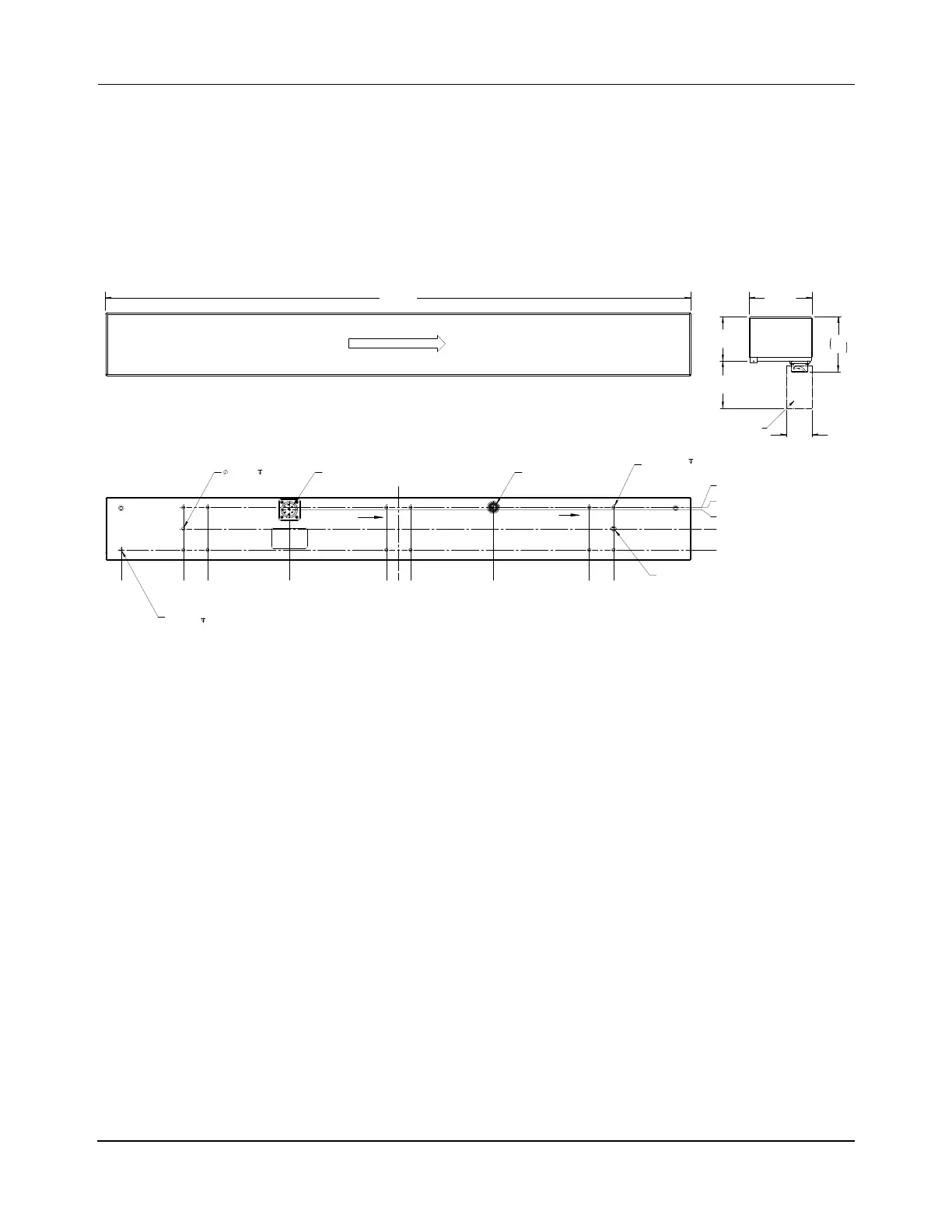

Figure 4-1: 1 Meter Motor Mechanical Drawing
NOTE: QuickStick HT motors have an external motor drive (see Figure 4-4 and Figure 4-7).
The exclusion zones that are shown are for the QSHT motor only. Additional exclu-
sion zones may be required based on the design of the vehicle and the material being
transported.
Ingress Protection Rating: IP67 (IP68 optional).
See Motors (Stators) on page 133 for the electrical specifications.
Contact ICT Customer Support for current detail drawings.
Exposed Materials
• 302, 304 Stainless Steel.
• 300 Series Corrosion Resistant Steel.
• Aluminum alloy with chromate over cadmium plating.
• Nickel plated brass.
• Nitrile.
• Neoprene.
0
0
20.00
[0.79]
20.00
[0.79]
156.7
[6.17]
315.00
[12.402]
355.00
[13.976]
315.00
[12.402]
355.00
[13.976]
35.3
[1.39]
180.0 [7.09]
457.7
[18.02]
35.00
[1.378]
35.00
[1.378]
31.5
[1.24]
C
L
C
L
DRIVE CONNECTOR
CABLE DIRECTION
FORWARD DIRECTION OF TRAVELUPSTREAM DOWNSTREAM
SENSE CONNECTOR
ALIGNMENT SLOT
MAX ALLOWABLE TORQUE = 4.8 Nm (42 IN-LBS)
12X M6X1.0 - 6H 8
5.05±0.05 6.0
GND HOLE
M6X1.0 - 6H
8.0
(FOR CUSTOMER PROVIDED
ALIGNMENT PIN)
(SENSE CONN)
(DRIVE CONN)
42
[1.7]
78
[3.1]
2X CLEARANCE FOR DRIVE & SENSE
RIGHT ANGLE CABLE CONNECTOR
73.0 ±0.7
[2.87 ±0.03]
104 ±1
[4.1 ±0.04]
91
[3.6]
966.5 ±0.5
[38.05 ±0.02]
CABLE DIRECTION
All Dimensions in Millimeters [Inches]Weight: 37.6 kg [83.0 lb]
700-1483-00
