Specifications and Site Requirements
Electrical Specifications
QuickStick HT User Manual 137
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Motor/QSMC Sense Cable
The QSMC motor controllers are supplied with motor (stator) sense cables, which provide
feedback from the motor. This cable is available in lengths from 2 m to 20 m. Contact Magne-
Motion for replacement cables. The motor sense cable connects directly to the QSMC motor
controller and to the related motor.

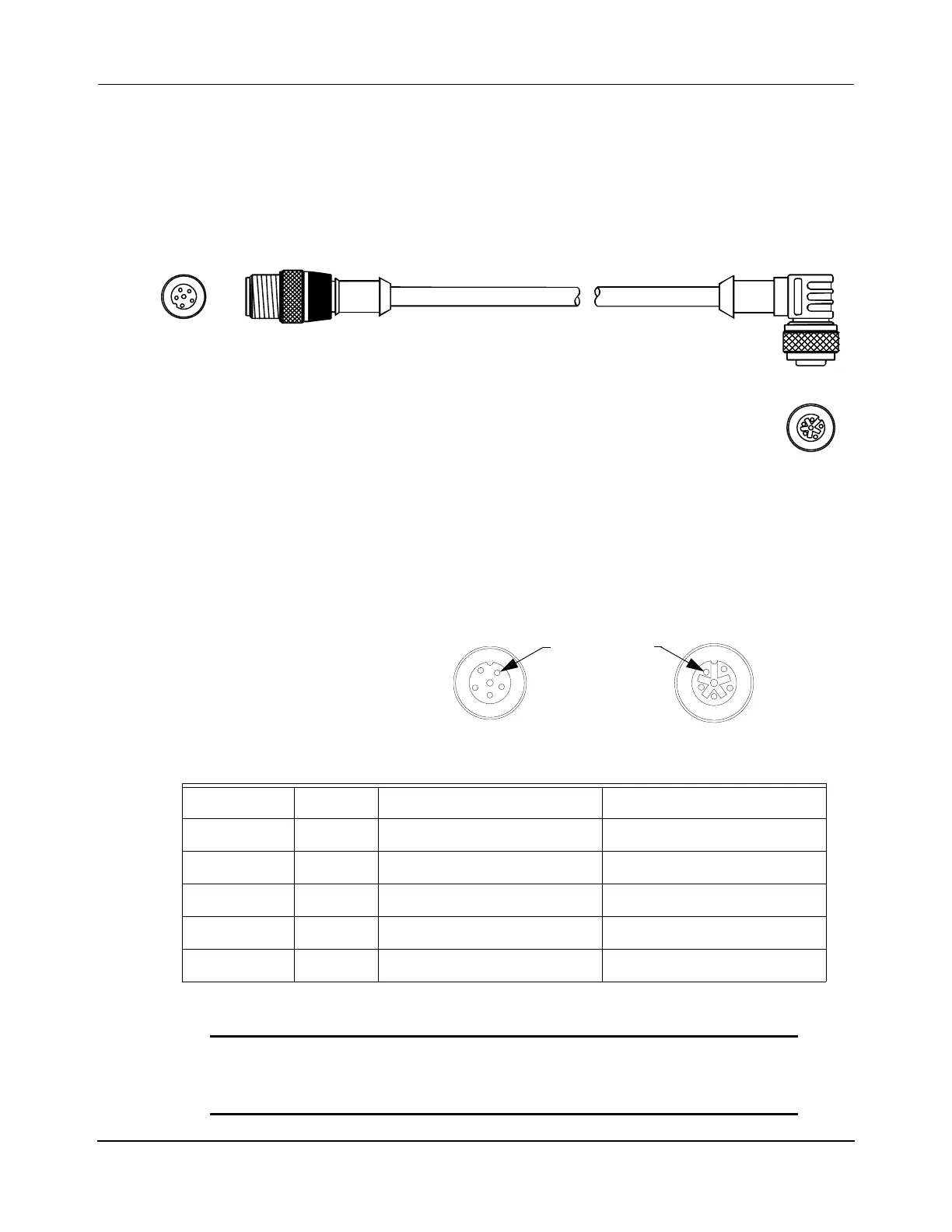

Figure 4-12: QSMC to Stator Sense Cable
Table 4-7: QSMC to Stator Sense Cable Pinouts
Wire
Gauge
Motor Controller
M12 Eurofast, 6-Pin,
Male
Motor
M12 Eurofast, 6-Pin,
Female
+V 24 AWG 1 1
GND 24 AWG 2 2
RS-422 24 AWG 3 3
RS-422 24 AWG 4 4
RS-422 24 AWG 5 5
RS-422 24 AWG 6 6
NOTICE Modifications to the MMI motor to motor controller cables,
or using custom cables, violates the UL conditions of accept-
ability.
Motor
Motor Controller
700-1685-xx
1
1
