Rockwell Automation MagneMotion QuickStick HT User Manual

Specifications and Site Requirements
Electrical Specifications
150 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

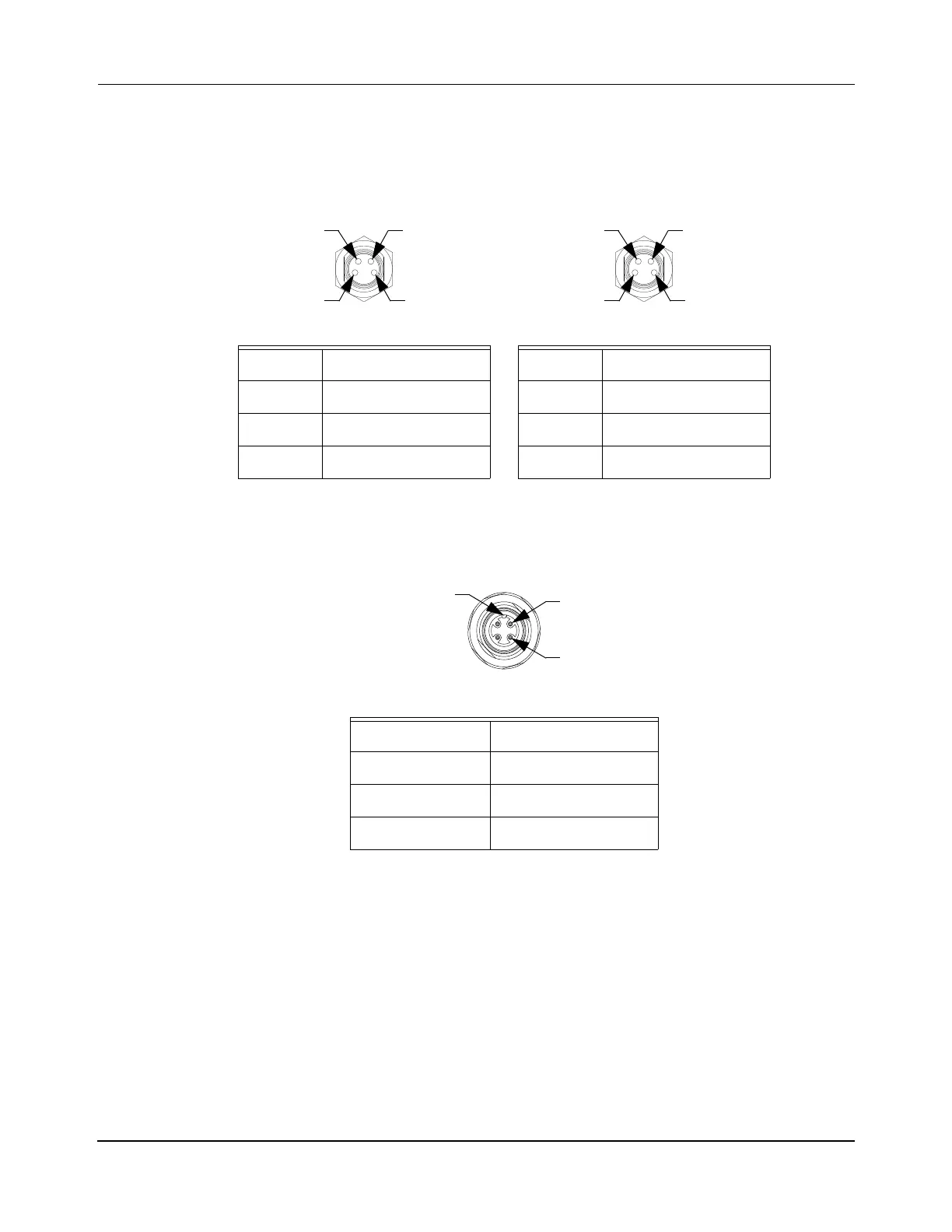

Table 4-26: QSMC-2 Motor Controller RS-422 Connector Pinouts
UP STREAM DOWN STREAM
M8, Nano-Mizer, 4-Pin, Male M8, Nano-Mizer, 4-Pin, Male
RxD+ 1 RxD+ 1
RxD- 2 RxD- 2
TxD+ 3 TxD+ 3
TxD- 4 TxD- 4
Table 4-27: QSMC-2 Motor Controller LVDC Power Pinout
M12 Eurofast, FSFD 4.4, Male
PWR 1
—2
—3
GND 4
3
4
1
2
3
4
1
2
Key
1
4
