Operation
Controls and Indicators
250 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Controls and Indicators
The control application on the host controller must provide any needed controls or indicators
that are related to transport system operation. Additional controls and indicators can be con-
figured as described in this section. The controls and indicators of the QuickStick HT compo-
nents are identified in the Electrical Specifications on page 133.
Track Display
The NCHost TCP Interface Utility can be used to display the Graphics Window, which is
shown in Figure 6-12. The Graphics Window shows the transport system layout and all vehi-
cles in the transport system for real-time monitoring of transport system operation. This dis-
play can only be used if there is a Track file for the specific configuration (created by
MagneMotion). See the NCHost TCP Interface Utility User Manual, MMI-UM010 to use the
Graphics Window.

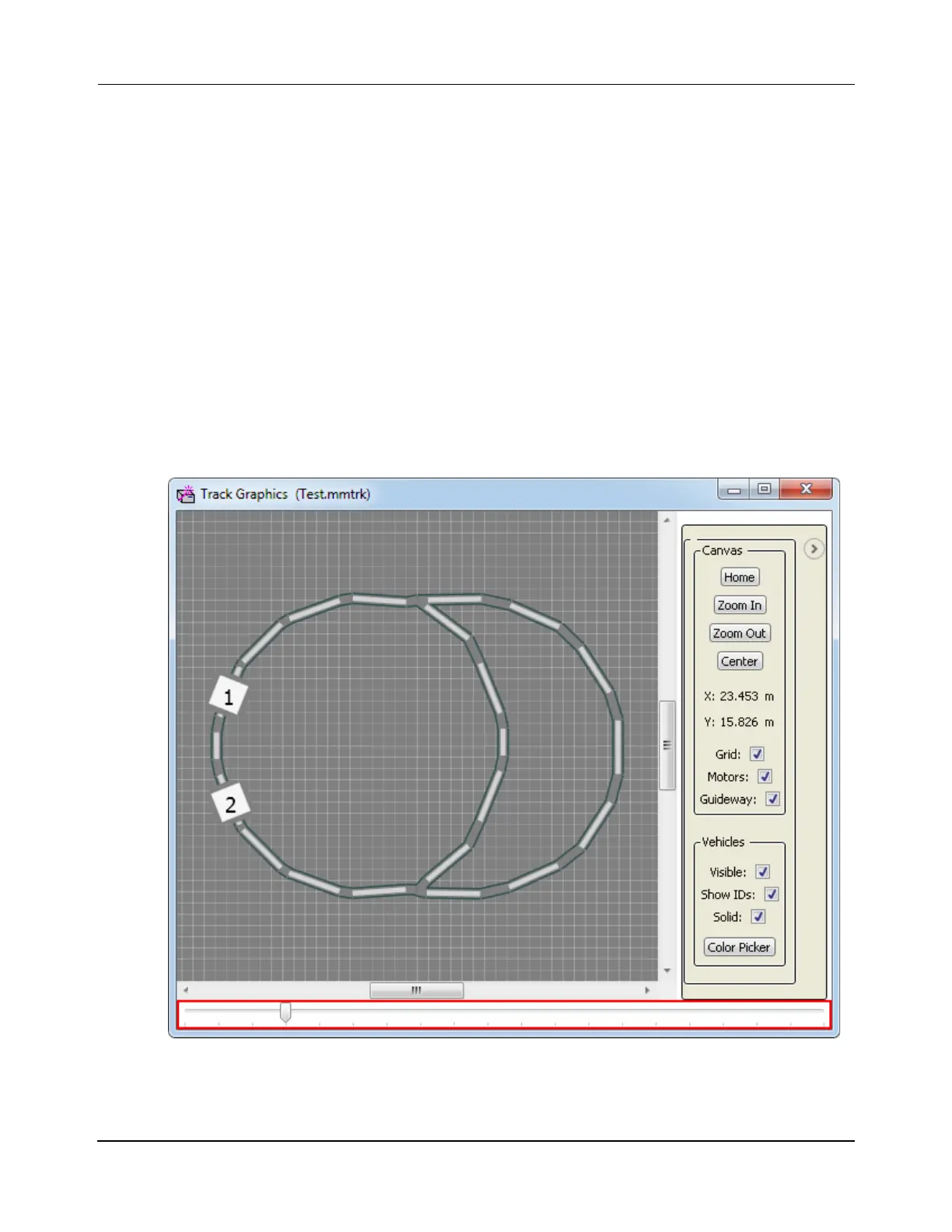

Figure 6-12: The Graphics Window
