Specifications and Site Requirements
Mechanical Specifications
130 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
QuickStick HT 5700 Inverter
The QSHT 5700 inverter is an external motor drive for the QSHT motors. One inverter can
control one 1 m motor, or one or two consecutive 1/2 m motors, or one 1/2 m double-wide
motor.

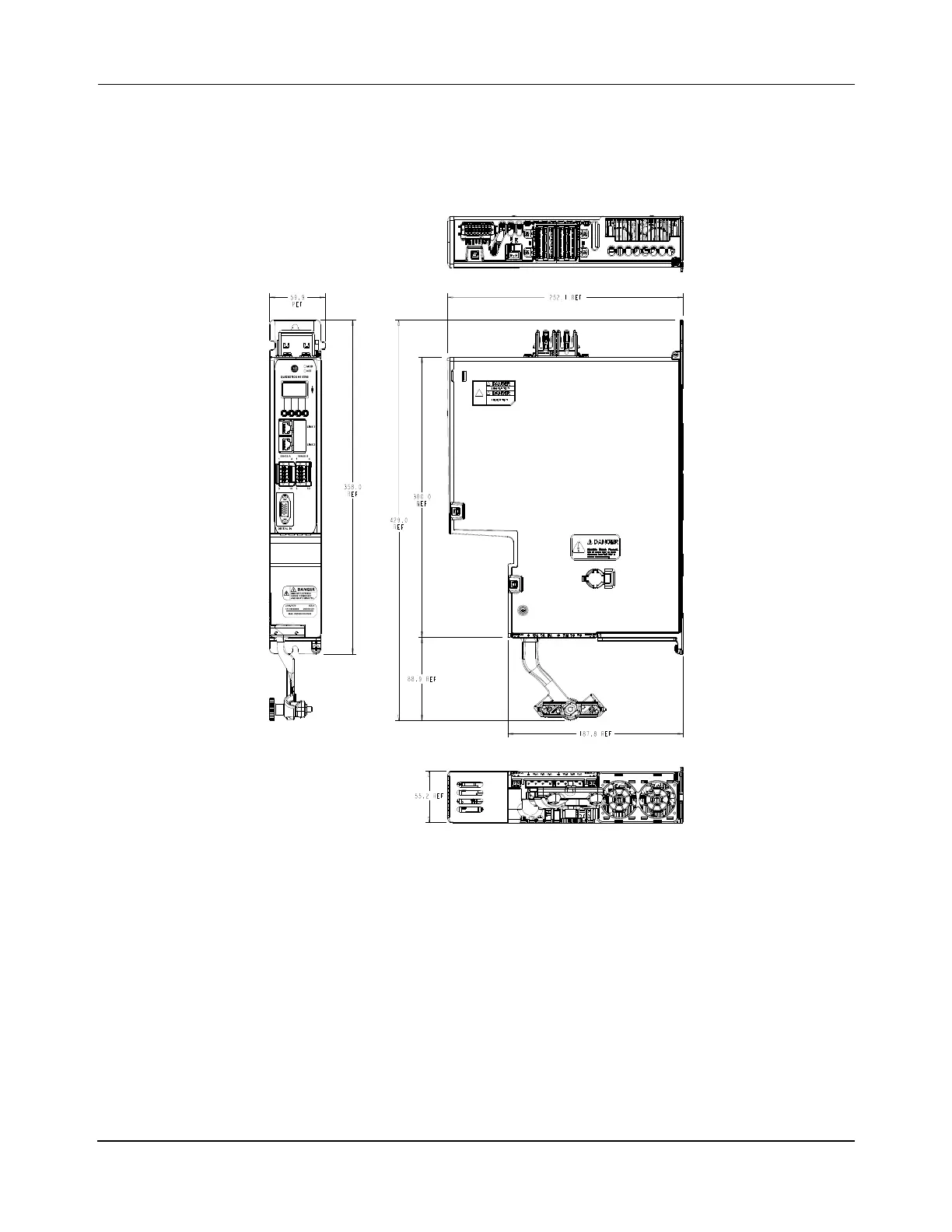

Figure 4-7: QuickStick HT 5700 Inverter Mechanical Drawing
NOTE: Each vent must be clear for unobstructed airflow.
Ingress Protection Rating: IP20.
See QuickStick HT 5700 Inverter on page 154 for the electrical specifications.
Contact ICT Customer Support for current detail drawings.
Exposed Materials
The inverter provides openings for airflow and must not be installed where harsh conditions
exist.
All Dimensions in Millimeters [Inches]Weight: 3.6 kg [7.9 lb]
MMI-HT-C2198-D032
