Specifications and Site Requirements

Electrical Specifications

146 MagneMotion

Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

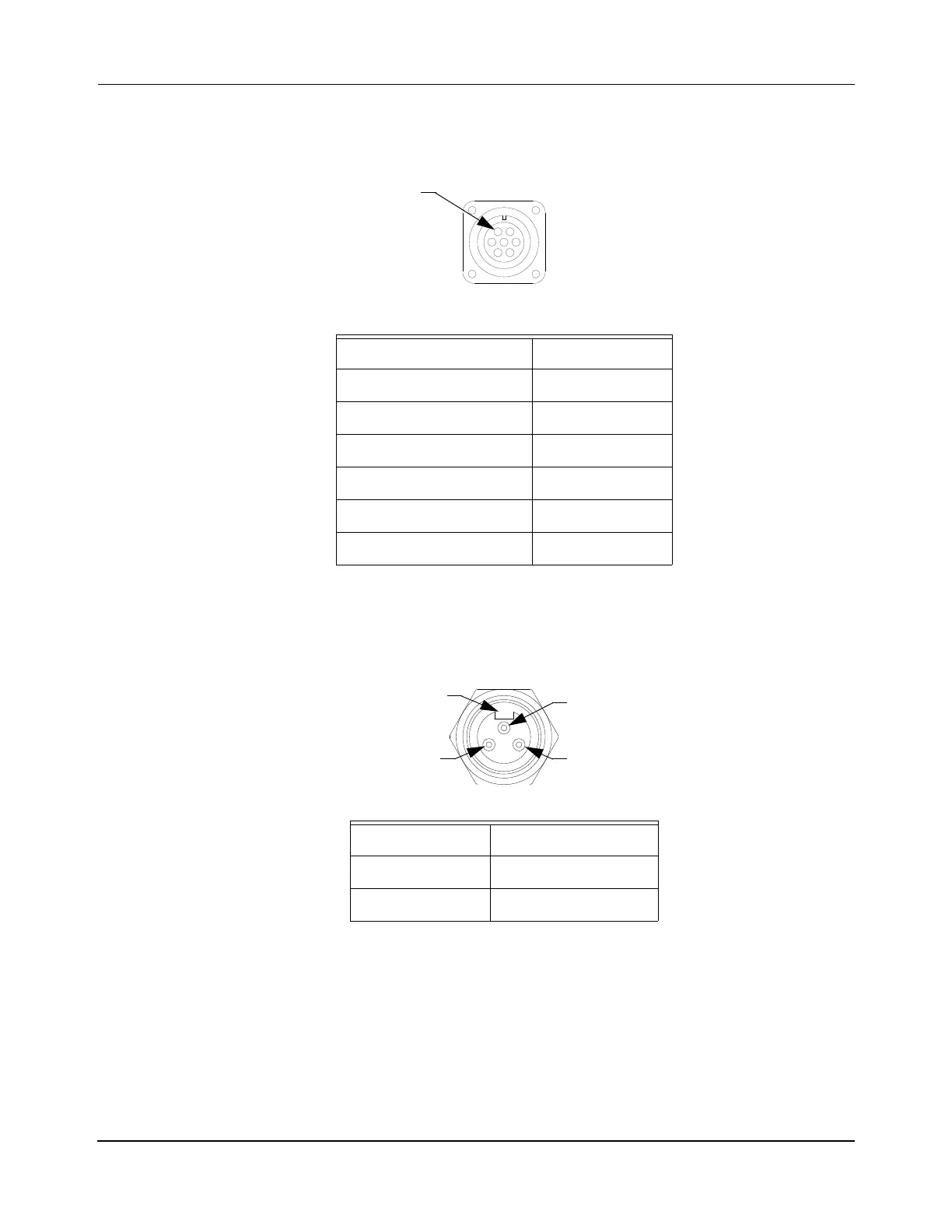

Table 4-19: QSMC Motor Controller Stator Drive Connector Pinout

16S-1S, 7-Pin, Female

Stator Block 1, Phase A A

Stator Block 1, Phase B B

Stator Block 1, Phase C C

Stator Block 2, Phase A D

Stator Block 2, Phase B E

Stator Block 2, Phase C F

GND G

Table 4-20: QSMC Motor Controller HVDC Power Connector Pinout

Powerfast, 3-Pin, Male

GND 1

PWR RTN 2

PWR HI 3

Key
