Specifications and Site Requirements
Mechanical Specifications
QuickStick HT User Manual 131
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Magnet Array, High Flux
High flux magnet arrays (see High Flux Magnet Arrays on page 102) are available in lengths
from 2 cycles to 8 cycles. Contact ICT Customer Support for detailed information on specific
magnet arrays. Figure 4-8 shows a 104.0 mm wide 8 cycle array for reference, the number,
quantity, and locations of the mounting holes vary based on the size of the array. Contact ICT
Customer Support for information on the availability of other widths.

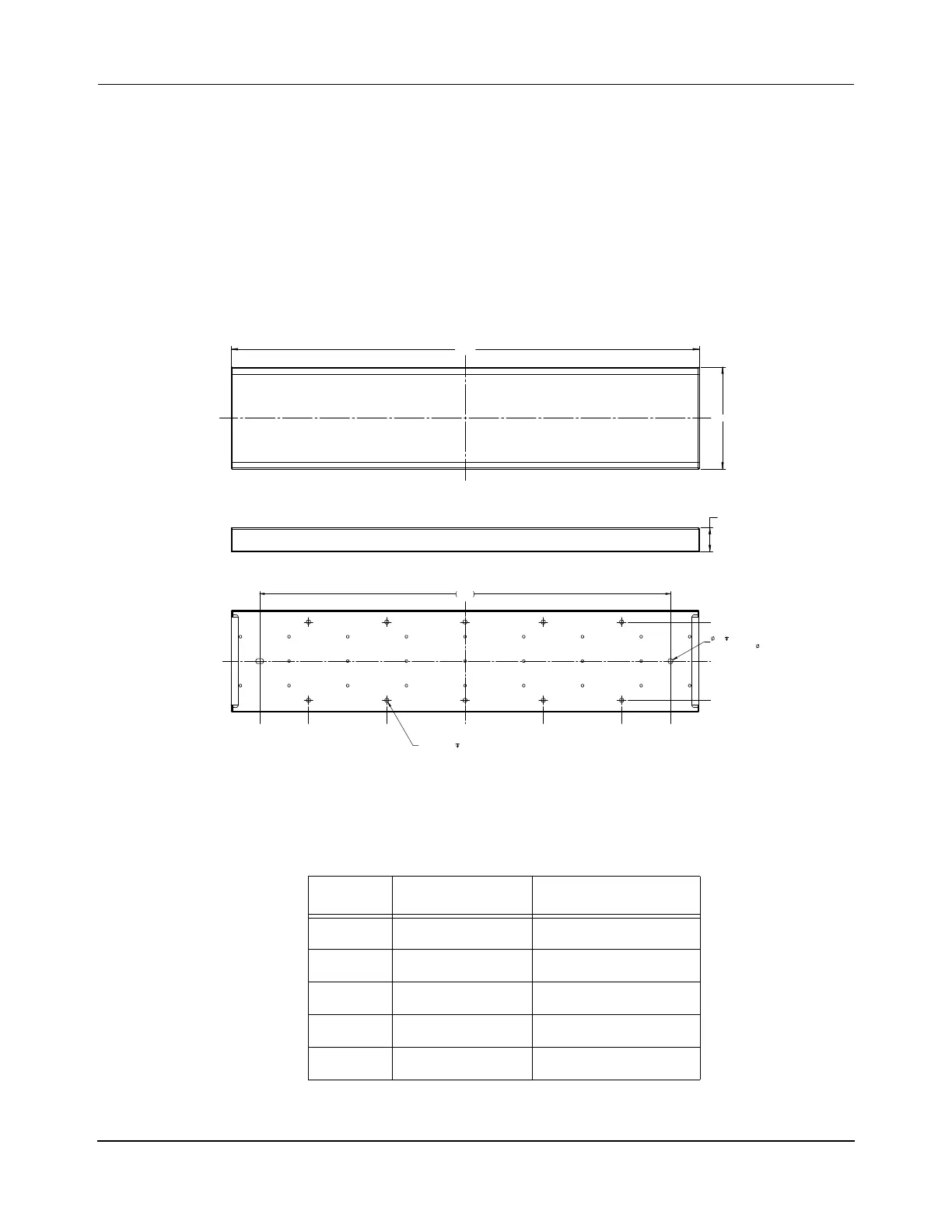

Figure 4-8: High Flux Magnet Array Mechanical Drawing
Table 4-1: High Flux Magnet Array Weights
Cycles Length Weight
*
2 238 mm [9.4 in] 4.4 kg [9.7 lb]
3 358 mm [14.1 in] 6.6 kg [14.6 lb]
4 478 mm [18.8 in] 8.8 kg [19.4 lb]
5 598 mm [23.5 in] 11.0 kg [24.3 lb]
6 718 mm [28.3 in] 12.7 kg [28.1 lb]
All Dimensions in Millimeters [Inches]Weight: Varies by length
Standard: 700-1618-xx
Wide: 700-1616-xx
High Temperature: 700-1642-xx
24.5±0.7
C
L
C
L
478±1
104±1
2X 160.00
0
0
5X 40.00
5X 40.00
2X 80.00
2X 160.00
2X 80.00
210.00
420.00
210.00
C
L
SECTIONA-A
SCALE 1 : 1.5
(FOR LOCATINGTO M5 DOWELPIN
5.15
5.02
5.0
10X M5X0.8 - 6H
6.5
