User Manual Roth EnergyLogic Touchline/Wireless
Electrical connections
44 P100011294 E

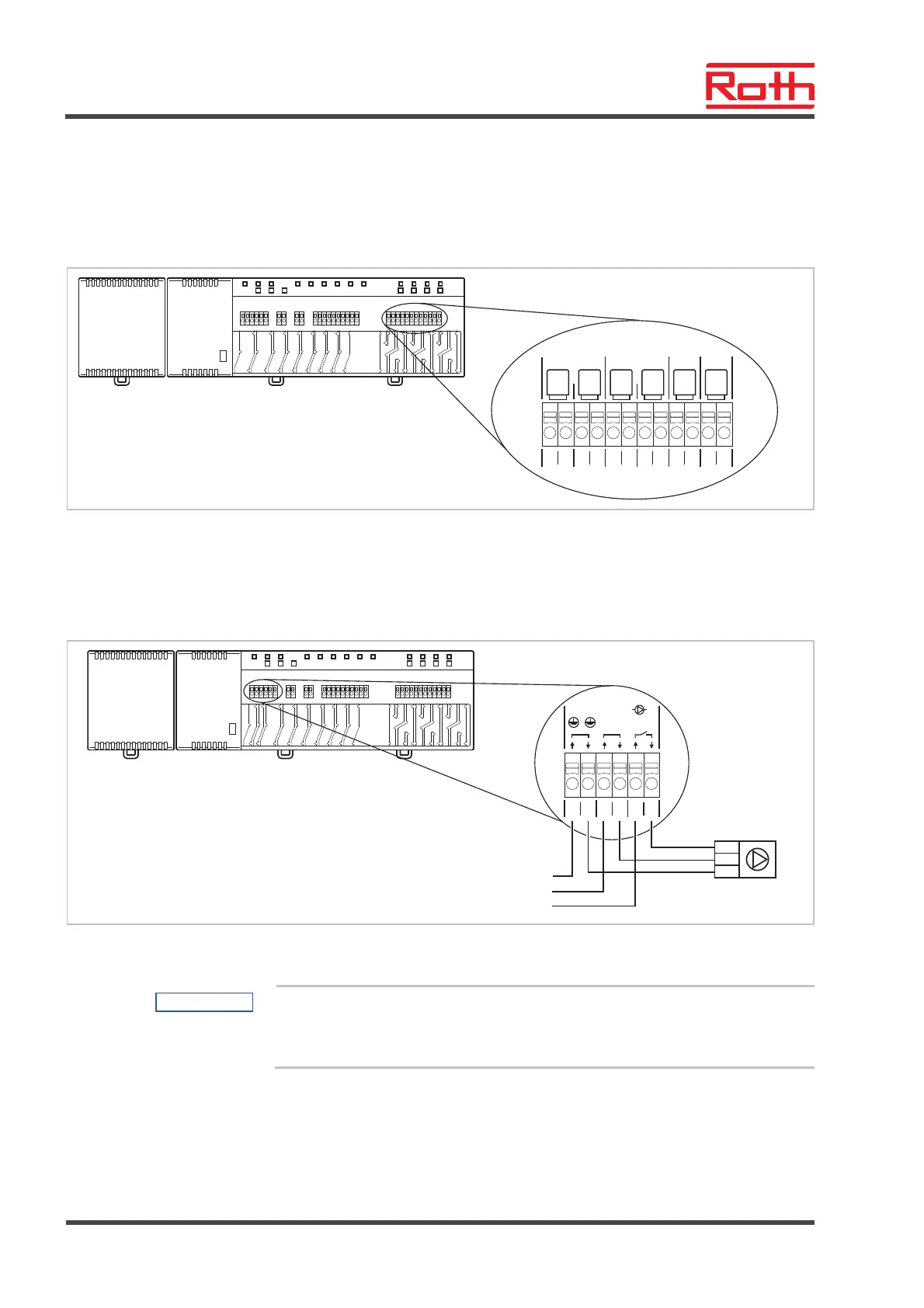

Connect thermal actuators
► Connect the thermal actuators to the following terminals:
– 4-channel version: terminals 25 to 36 for max. 6 actuators
– 8-channel version: terminals 25 to 56 for max. 12 actuators
– 12-channel version: terminals 25 to 76 for max. 18 actuators
B12295a
CH 1 CH 3CH 2
27
25
26
28 29 30 31 32 33 34
CH 4
35 36
24V 24V 24V 24V 24V 24V
Fig. 31: Connect thermal actuators
Connect 230 V pump
► Connect the pump to terminal 04, 05 and 06.
Contact rating: 230 V, 2.5 (1) A
B12294a
03
01
02
04 05 06
N LLN
L
N
PE
Pump230 V
PE
L
N
Fig. 32: Connect pump, 230 V
NOTE
To save energy and on demand, the pump command is released only after
2 minutes in any setting.
