User Manual Roth EnergyLogic Touchline/Wireless
Electrical connections
P100011294 E 43
Connect transformer
► Connect the transformer to the 24 V input terminals 11 and 12.
ATTENTION
Malfunctioning due to improper connection!
Improper connection may cause malfunction of the system.
– Each wireless connection module must have a separate transformer.
B12247a
24 V
11
12
13
Trafo
in
10
≤ 70 °C

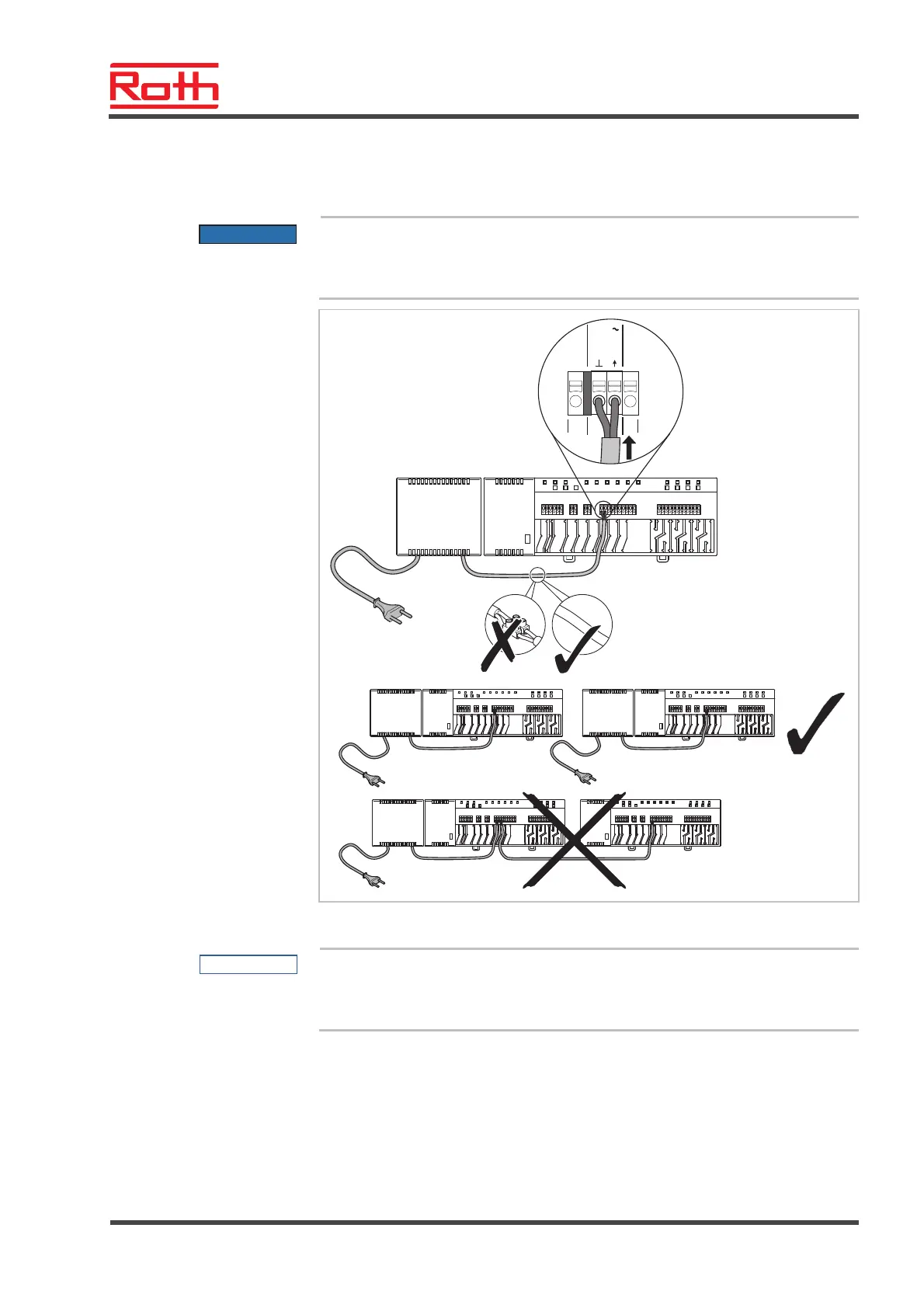

bb. 30: Connect transformer
NOTE
The 24 V output is used only as support voltage for a dew-point sensor or
as a voltage signal to the TB input (temperature limit).
