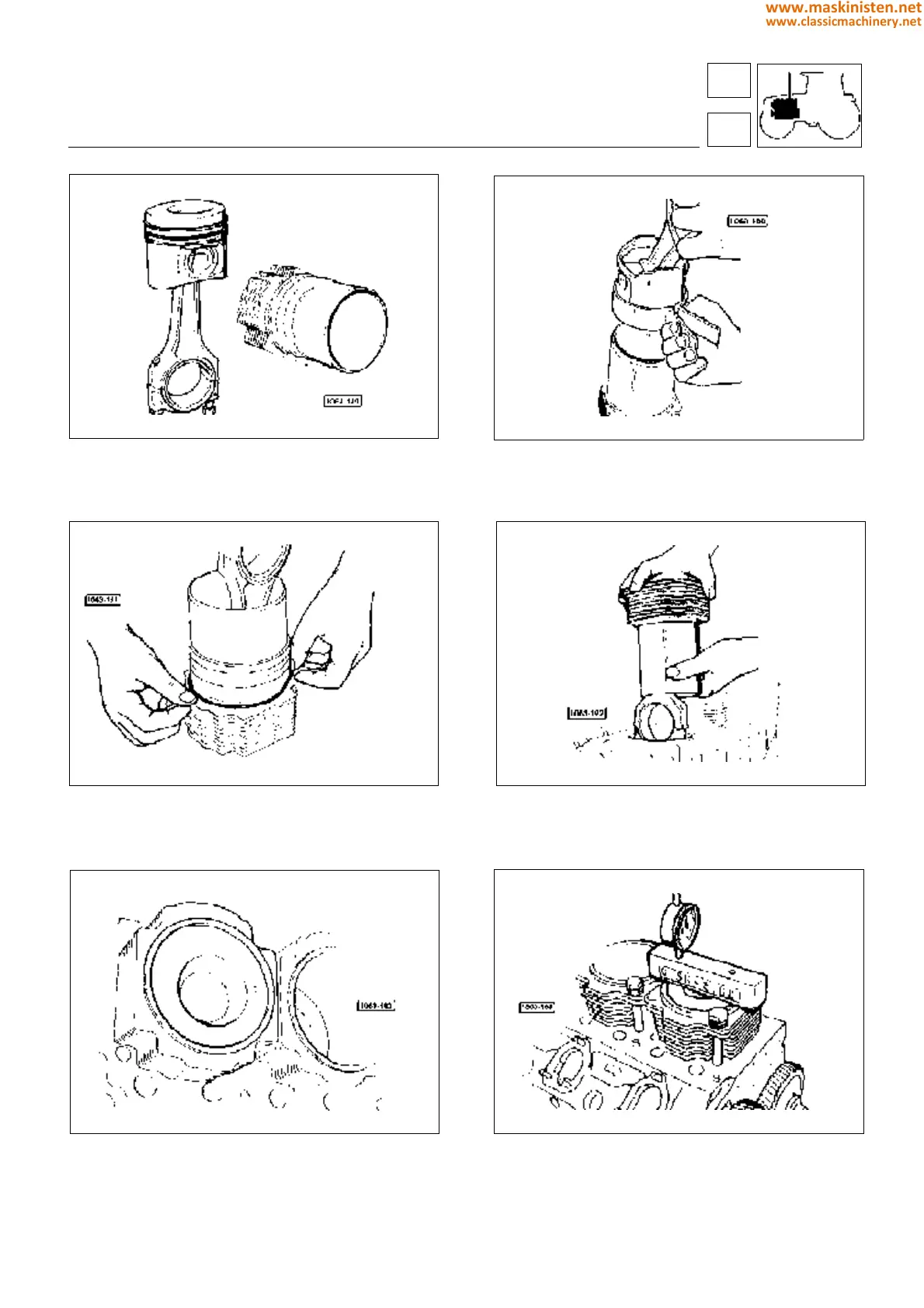

Fig. 5 - Install the piston rings on piston and then connect
piston to connecting rod;
Fig. 7 - Fit the O-rings on the cylinder;
Fig. 9 - Orient the piston combustion chamber towards the
injection pump side, secure the piston-connecting rod assem-
bly by means of no. 5.9030.631.4/10 equipment, then turn the
engine upside down;
Fig. 6 - Fitting the piston-connecting rod assembly into the
cylinder;
Fig. 8 - Installing the cylinder-piston-connecting rod assembly
in the engine block;
Fig. 10 - Checking for correct cylinder and assembled piston
positioning at T.D.C. Measure the piston protrusion from
cylinder and select the suited gasket type to be fitted between
cylinder and cylinder head as shown on page 27;
engine
assembly
1
93
