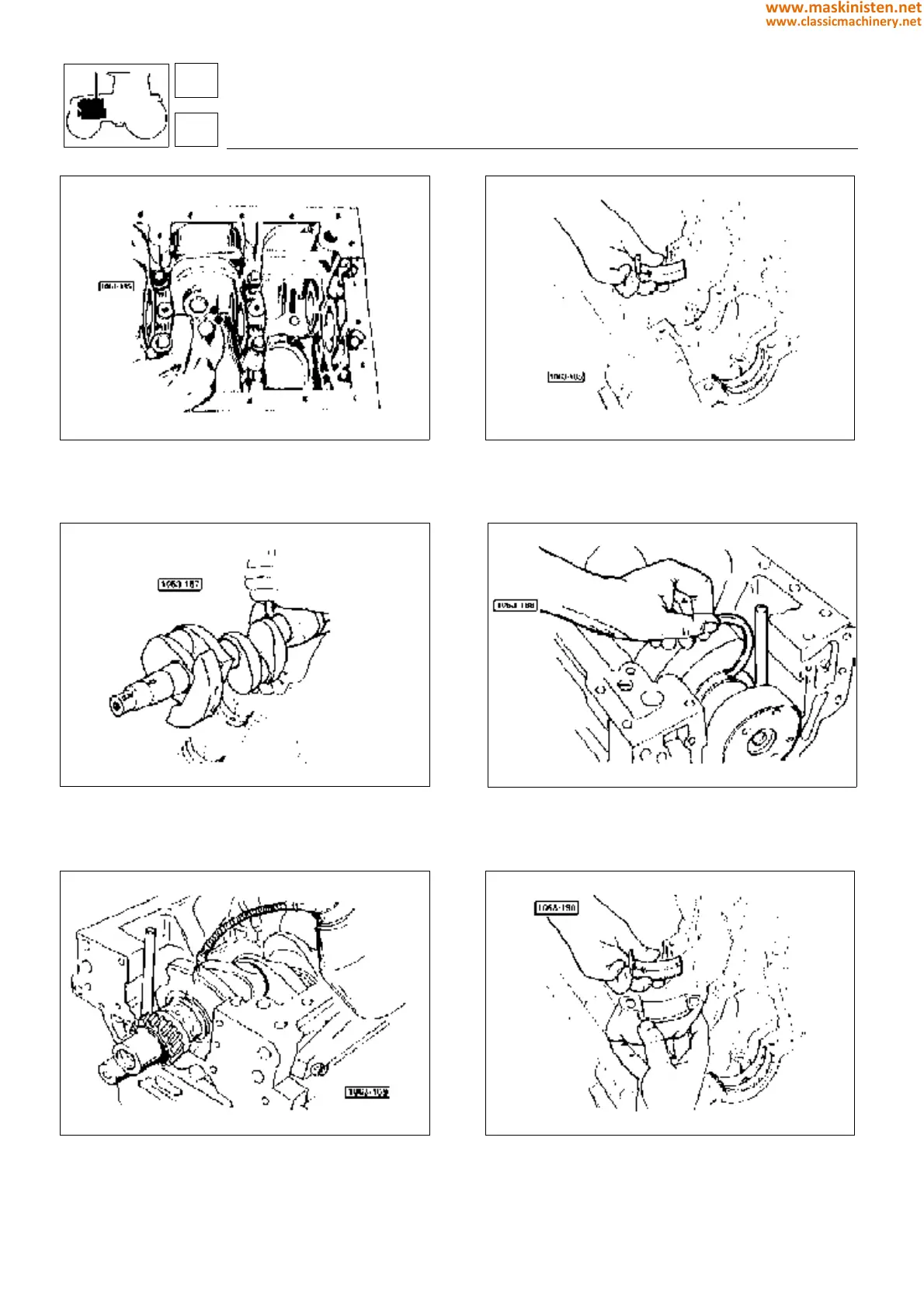

Fig. 11 - Fit the tappet plates into their seats in the block after
lubricating with engine oil;
Fig. 13 - Install the crankshaft in the engine block. We
recommend using a hoist for accomplishing this operation;
Fig. 15 - Oil the crankshaft main journals and big end journals;
Fig. 12 - Place the upper crankshaft main bearing shells in
their seats in the engine block. These main bearing shells are
distinguished from the lower shells as they are provided with
a lubricating hole;
Fig. 14 - Fit the two crankshaft half shoulder rings into the rear
block support;
Fig. 16 - Fit the main bearing shells into the crankshaft main
bearings. (All main bearing shells are provided with a ratchet.
This ratchet should be completely engaged in its seat);
engine
assembly
