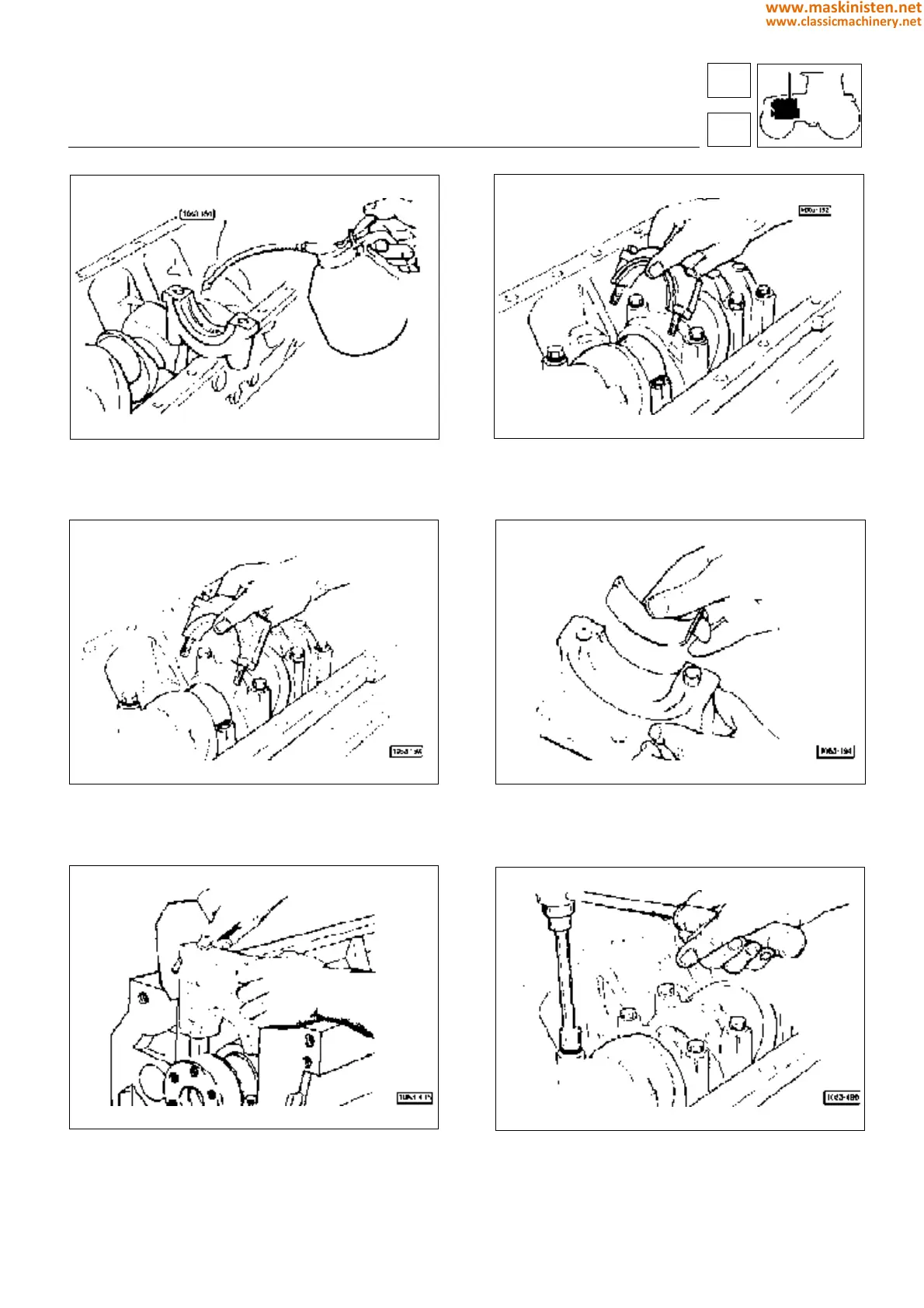

Fig. 17 - Oil the crankshaft main bearing shells;
Fig. 19 - Install the intermediate crankshaft main bearing
taking care the numbers stamped on the bearing correspond
to those stamped on the crankcase. (Numbers should all be
oriented in the same direction);
Fig. 21 - Install the gaskets in the front and rear main bearings;
then fit bearings easing them into the engine block using
sheet metal slides and tapping gently;
Fig. 18 - Fit the big end cap bearing shells in the related seats
and then install the big end caps;
Fig. 20 - Install the main bearing shells in the front and rear
crankshaft bearings. Shoulder half rings shall be secured in
the rear bearing after applying some grease;
Fig. 22 - The main and big end bearings securing screw
threads should be covered with LOCTITE 242. Thereafter
tighten the securing screws using tool no. 5.9030.640.0;
following the instructions on pages 32 - 33 - 34;
engine
assembly
1
95
