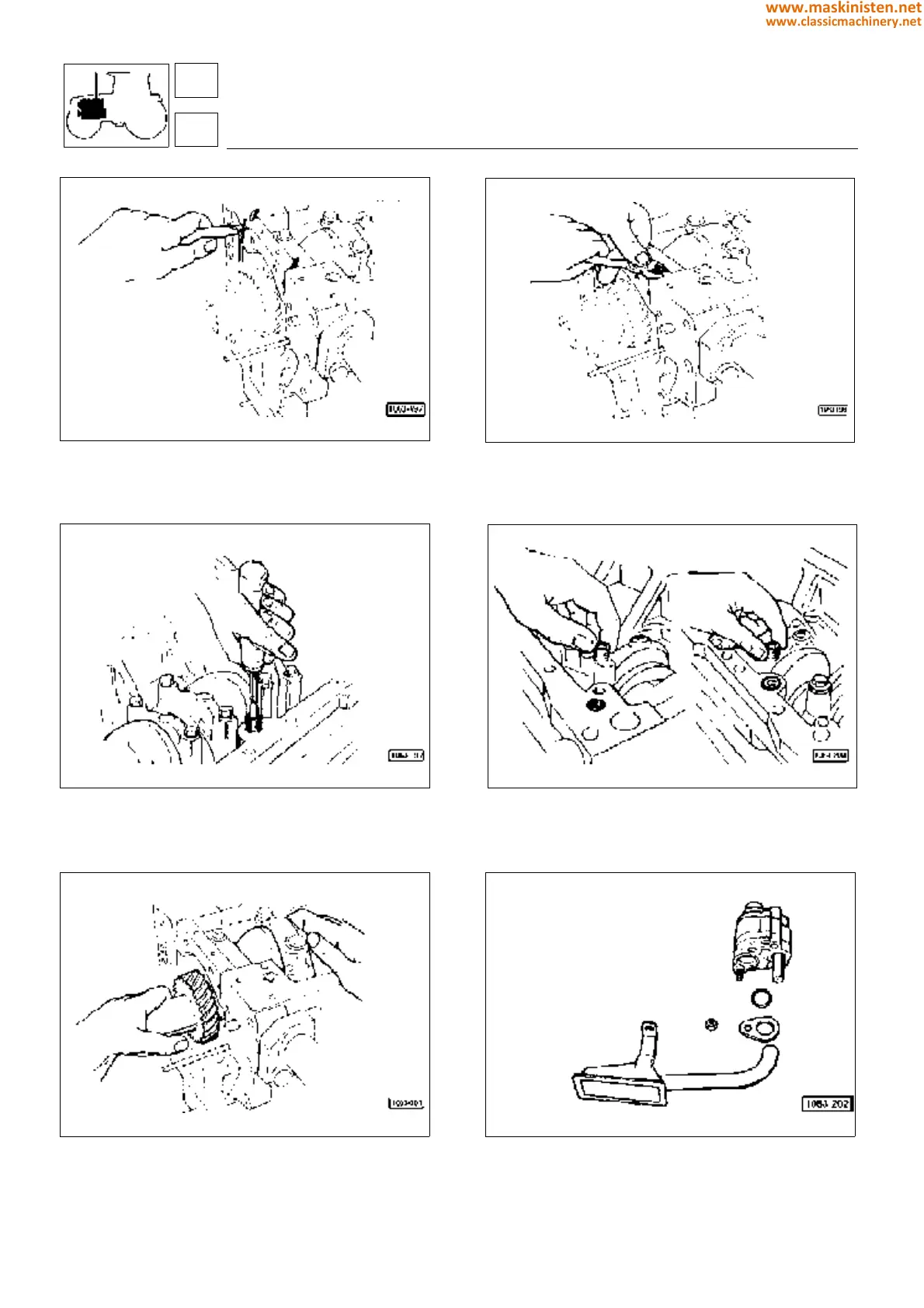

Fig. 23 - Protruding gaskets should be cut flush with the
engine block at the front and rear side;
Fig. 25 - Use a screwdriver to fit the screw plug in the position
shown in figure;
Fig. 27 - Turn the crankshaft and make sure it can rotate freely
and no interference between pistons and spray nozzles oc-
cur, then measure the crankshaft end play;
Fig. 24 - Using a suitable tool cut the rubber gaskets protru-
ding from block oil sump face according to specifications
given on page 33. Smear some sealant on the rubber gaskets
in the block;
Fig. 26 - Install the socket head screw plugs in the positions
shown in figure;
Fig. 28 -
SILVER 80-90-100.4
- ONLY - Fit the oil pump and
after securing to engine block check gears for free sliding.
Install the oil pipe rose;
engine
assembly
1
96
