SATO CG2 Series - Positions of Sensors and Options

Section 8: Appendix
Page 8-6 CG2 Series Operator Manual

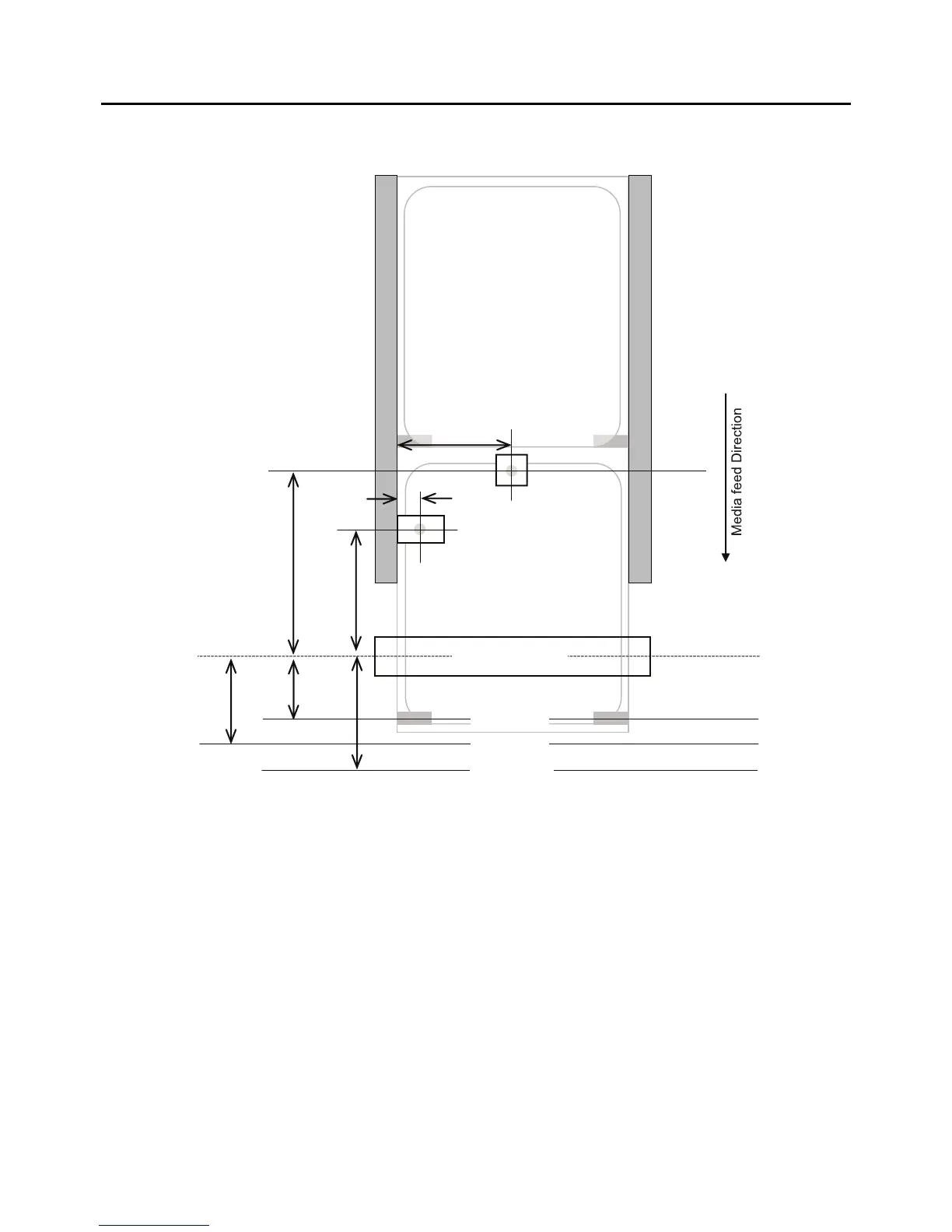

8.3 POSITIONS OF SENSORS AND OPTIONS
Only Center hole sensor and Gap sensor are in common use. No sensors interfere with one another.
7.5mm~31.5mm (0.29”~1.24”)
5.5mm (0.22”)
47.8mm
(1.88”)
I-Mark sensor
(paper end)
Gap sensor
(Center hole)
32.3mm
(1.27”)
12.9mm
(0.51”)
18.0mm
(0.71”)
21.4mm
(0.84”)
Print head
Dispenser
Cutter
Tear-off
