8.7 OFFSET POSITION ADJUSTMENT
This setting adjusts the option (Cutter, Dispenser, Tear off) stop position after a print out.
By using VR3 potentiometer, the stop position can be adjusted within the range of ±3.75mm (±0.15”).
A positive value moves the leading edge of the label forward (away from the print head) while a negative
value moves the leading edge of the label back toward the mechanism.
In addition to the above setting, the Offset position can also be adjusted by using SATO Utilities Tool
application or by send
ing command <PO> from the host
. The setting range is within ±99 dots.(One exception is for the Tear off mode; for the Tear off mode, the range is -60 dots to +99 dots). This setting is normally not
necessary. Use VR3 potentiometer on the printer for permanent setting.
-3.75mm
(-0.15”)
+3.75mm
(+0.15”)
Label feed direction
Stop position for
cutting,dispense
or tear-off
+ Adjustment
(Turn VR3 to the right)
zero
Adjustment
- Adjustment
(Turn VR3 to the left)

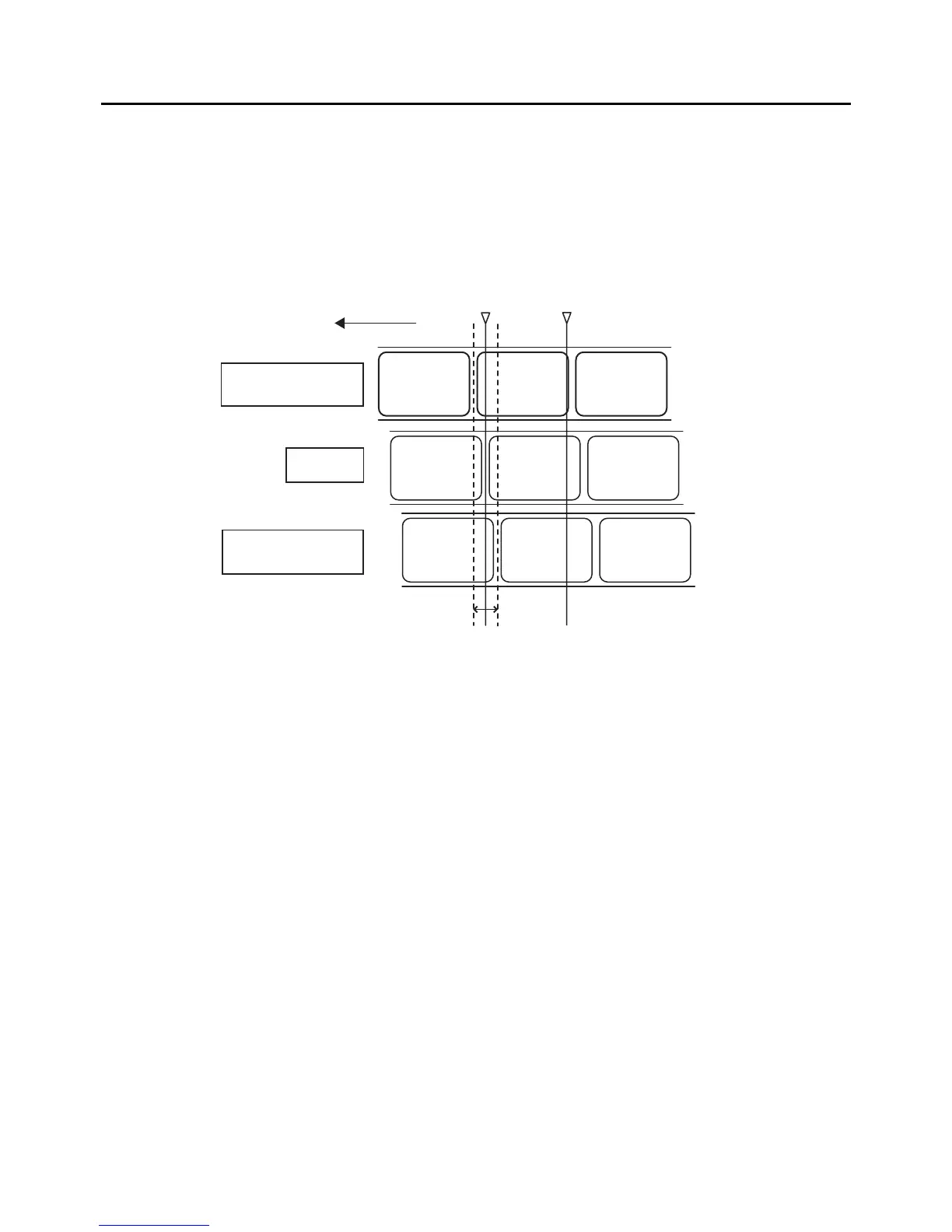

Adjustment of Offset setting
Reference position
for printing
