SATO CG2 Series - 15 Mm (0.6) Wide Wristband

Section 8: Appendix
CG2 Series Operator Manual Page 8-7
8.4 15MM (0.6”) WIDE WRISTBAND

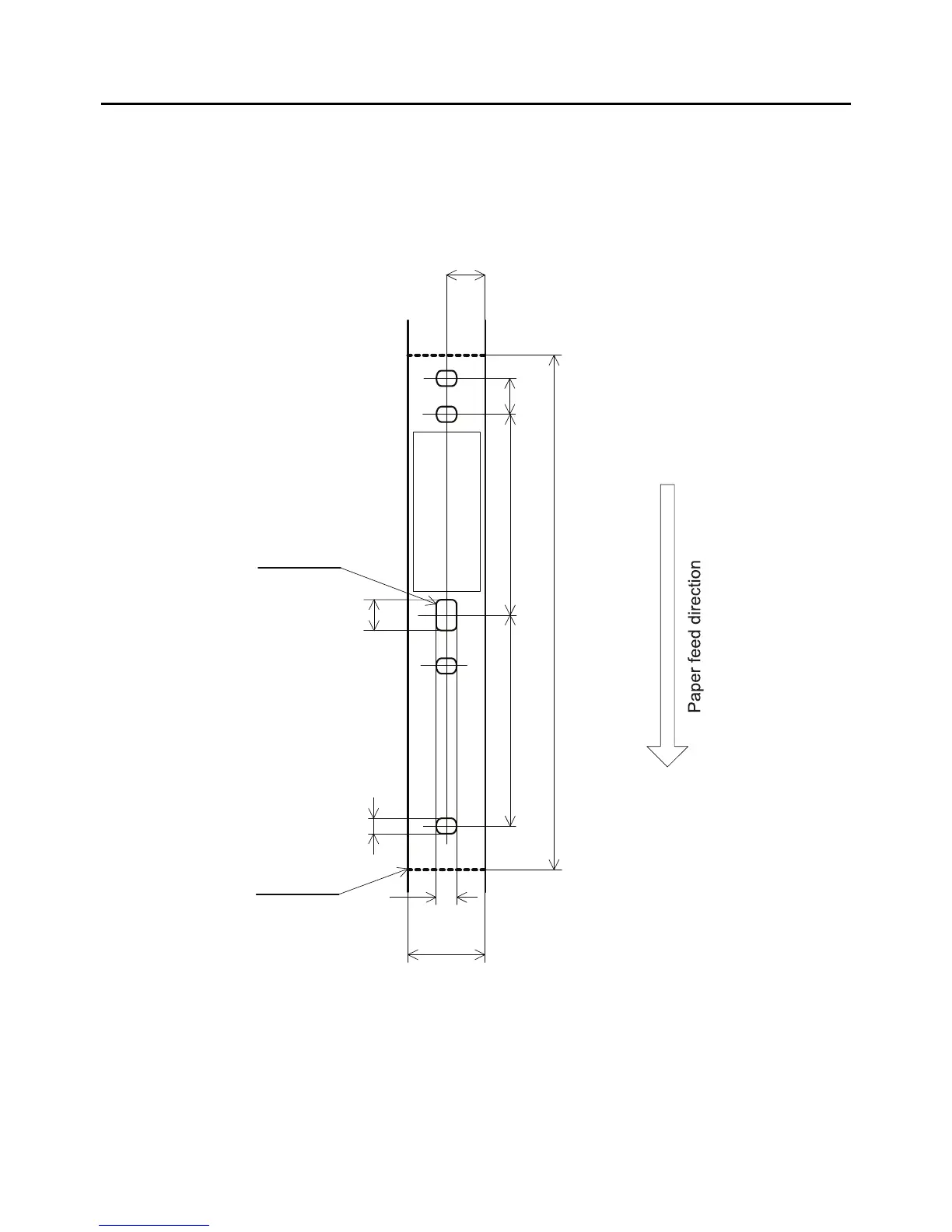

To distinguish the fastening hole of wristband (1) and tag hole (2), the length of tag hole (2) is designed to be
6mm (0.23”).
The top of tag hole (2) becomes the print reference position.
When using this type of wristband, please set the Sensor Type to Transmissive sensor 2 (for Wrist band, no
die cutting).
The usage of this wristband is similar to the one with I-Mark (Die cutting).
䊶
䊶
䊶
䊶
䊶
䊶
7.5mm [0.3”]
6mm
[0.23”]
9mm
[0.35”]
123mm
[4.8”]
126mm
[4.9”]
Print
area
292.1mm
[11.5”]
(2)
3mm
[0.12”]
(1)
4mm
[0.16”]
Wristband 15mm [0.6”]
Perforation
4-R 0.5~1
Tag hole
