SATO CG2 Series User Manual

Section 8: Appendix
CG2 Series Operator Manual Page 8-9

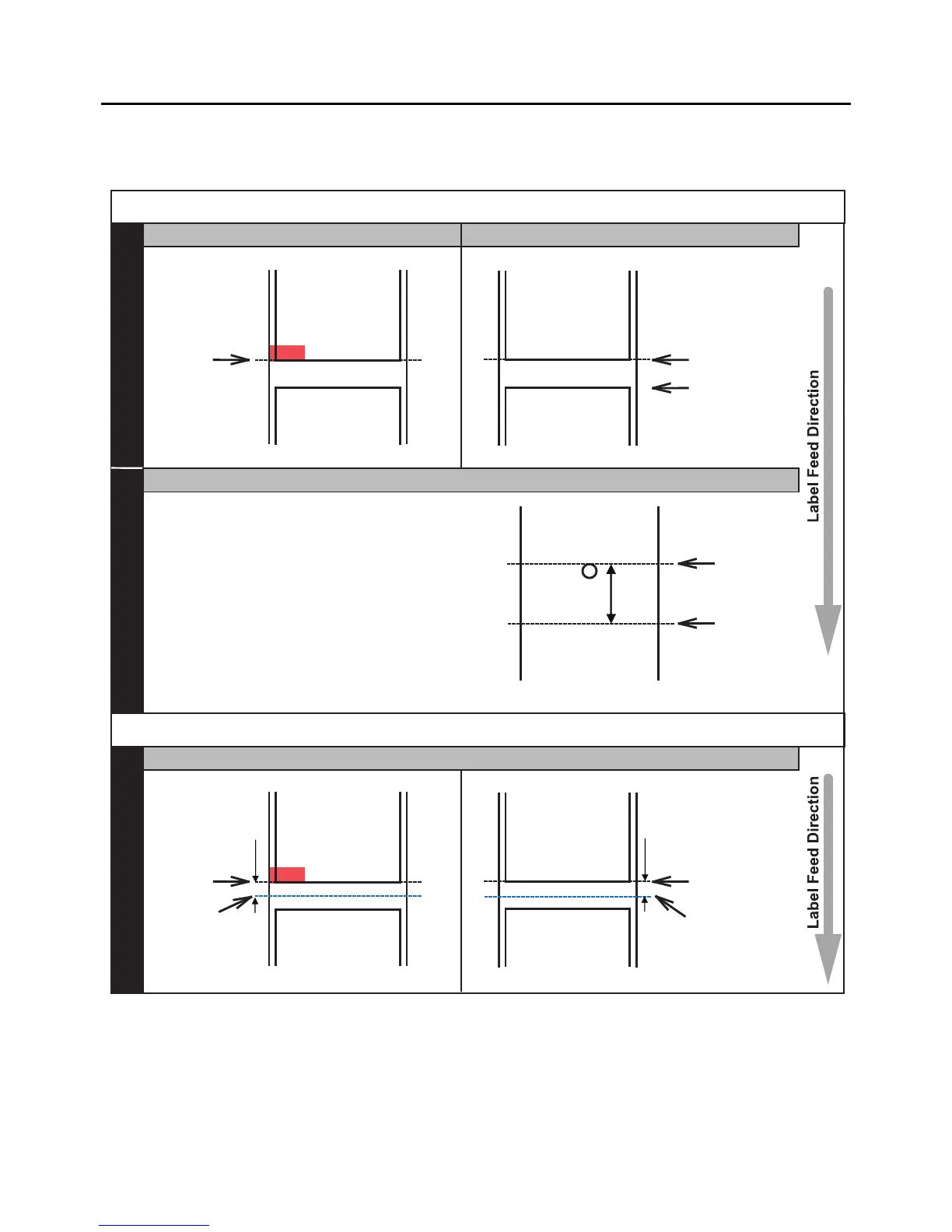

8.6 BASE REFERENCE POINT
The base reference point is the point at which one determines the print and cut positions.
The base reference position differs, depending on the print mode or the label pitch sensor to be used.
I-Mark
Label
Tag
Gap
Print
reference
position
<A3>V+048H0
Continuous Mode
Center-hole
Gap end
(Print reference
position)
Gap start
Print reference
position
(before correction)
Print reference
position
(after correction)
<A3>V0H0
6mm
(0.23”)
• When using the center hole tag, the
top of the tag hole becomes the print
reference position. When the head
density is 8 dots/mm, specify
<A3>V+048H0. When the head
density is 12 dots/mm, specify
<A3>V+072H0 to correct 6mm in the
print reference position.
I-Mark
Label
Gap
Print
reference
position
Print reference
position
Tear off
reference
position
1.5mm
(0.06”)
1.5mm (0.06”)
Tear off
reference
position
Tear off Mode
