Section 8: Appendix
Page 8-2 CG2 Series Operator Manual
8.1 OPTIONAL ACCESSORIES - CUTTER
The cutter should only be installed by SATO qualified servicing personnel.
8.1.1 To route the media when the cutter is installed
Loading of the media for cutter unit is similar to the usual procedure as explained in Section 2.3 Loading
Labels or Tags.
8.1.2 Cut position Adjustment
• Cutting of Labels
The correct cutting position is at the label gap. Cutting
onto the label must be avoided because the label
adhesive that accumulates on the blade will affect cutter
sharpness.
• Cutting Media with Perforation
As for media with perforation, cutting on or in front of
the perforated lines is prohibited. Cutting in those
locations could cause the media to jam and the printer to
malfunction.
The perforated line +1 mm (+0.04”) is the cut prohibited
zone (see Figure 1).
The folded perforated line +4 to +25 mm (+0.15” to
+0.98”) of fan-folded paper is the cut prohibited zone
(see Figure 2).

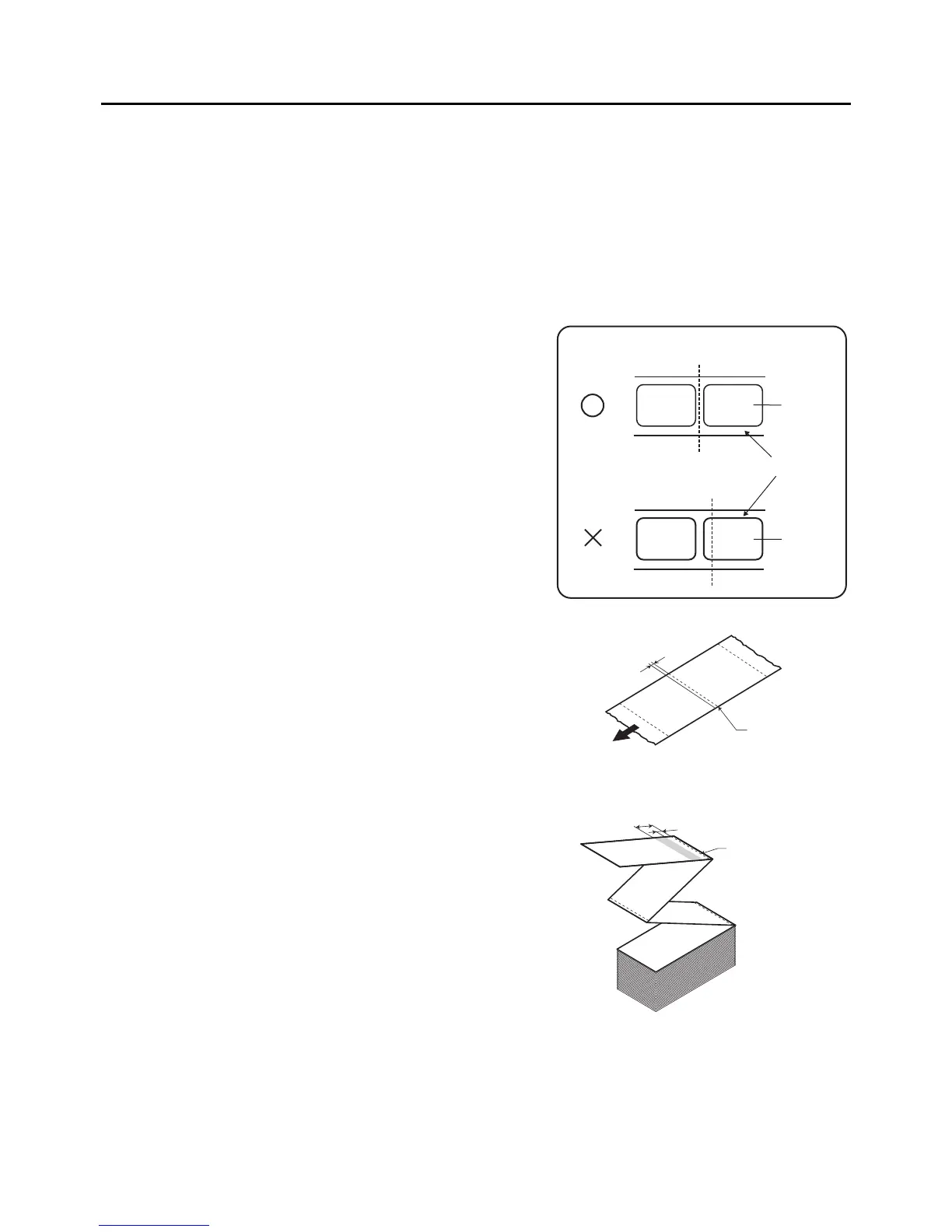

Backing paper
Cut Position
Label
Cut Position
Label
Figure 1
Cut prohibited zone
(1mm, 0.04”)
Perforated line
Figure 2
Fold perforation
25 mm, 0.98”
4 mm, 0.15”
