SATO CG2 Series - Loading Labels or Tags

Section 2: Installation
CG2 Series Operator Manual Page 2-3

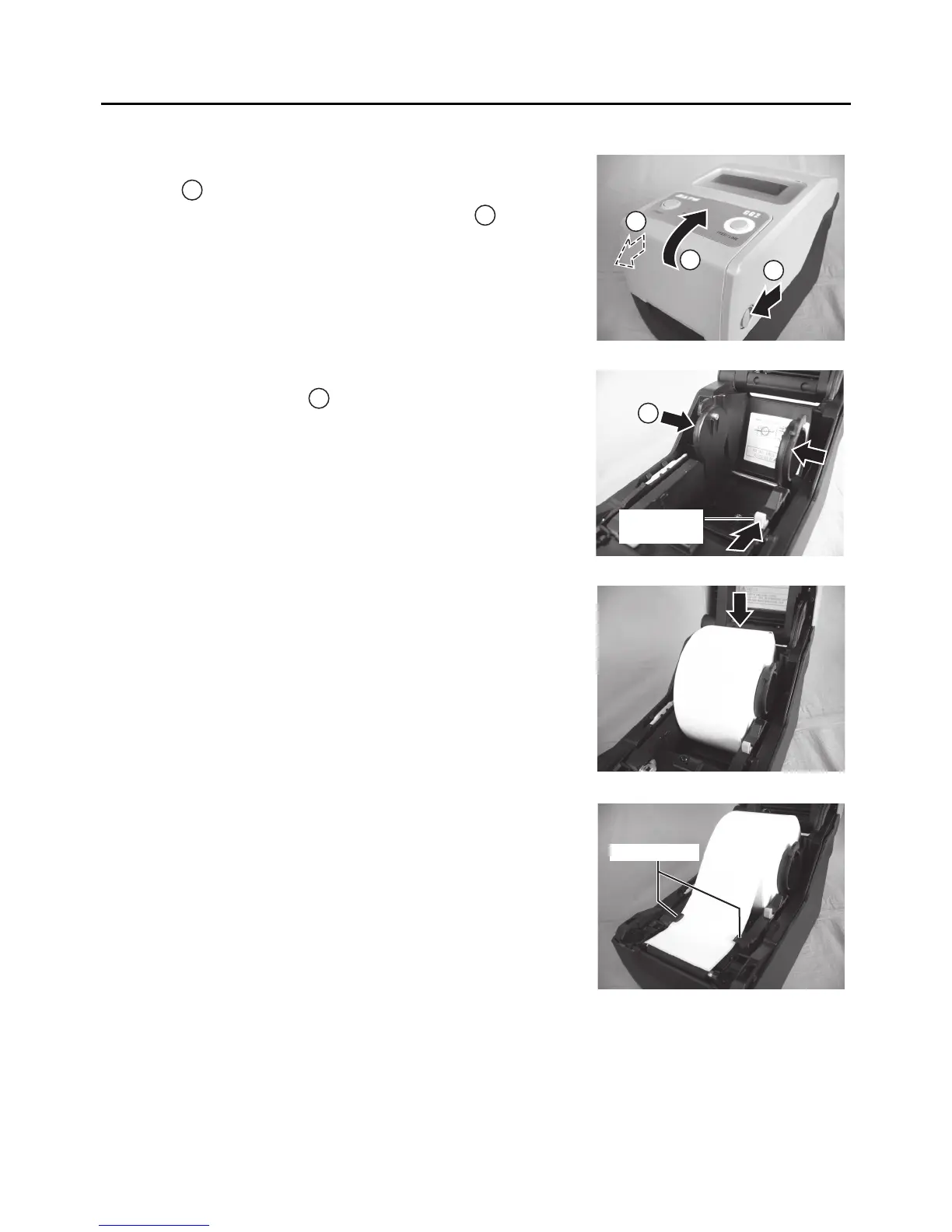

2.3 LOADING LABELS OR TAGS
2.3.1 Loading Roll media
1.
With the power supply off, pull the cover open/close
latches on both sides of the printer toward you to
unlock the top cover, and then open the top cover .
Note:
Make sure that the cover rests firmly so that it will not fall
forward and injure your hands.
2. While holding the media guide slide lever, adjust the
width of the media holder to match the media size.
3. Load the media onto the media holder.
4. After pulling out the media, pass the media through the
media guides and place the leading edge of the media
on top of the platen roller.
Note:
Make sure the printed side of the media is facing
upwards.
1
1
2
1
2
1
Media guide
slide lever
1
Media guides
Printed side should face
upwards
