SATO CG2 Series User Manual

Section 8: Appendix
Page 8-10 CG2 Series Operator Manual

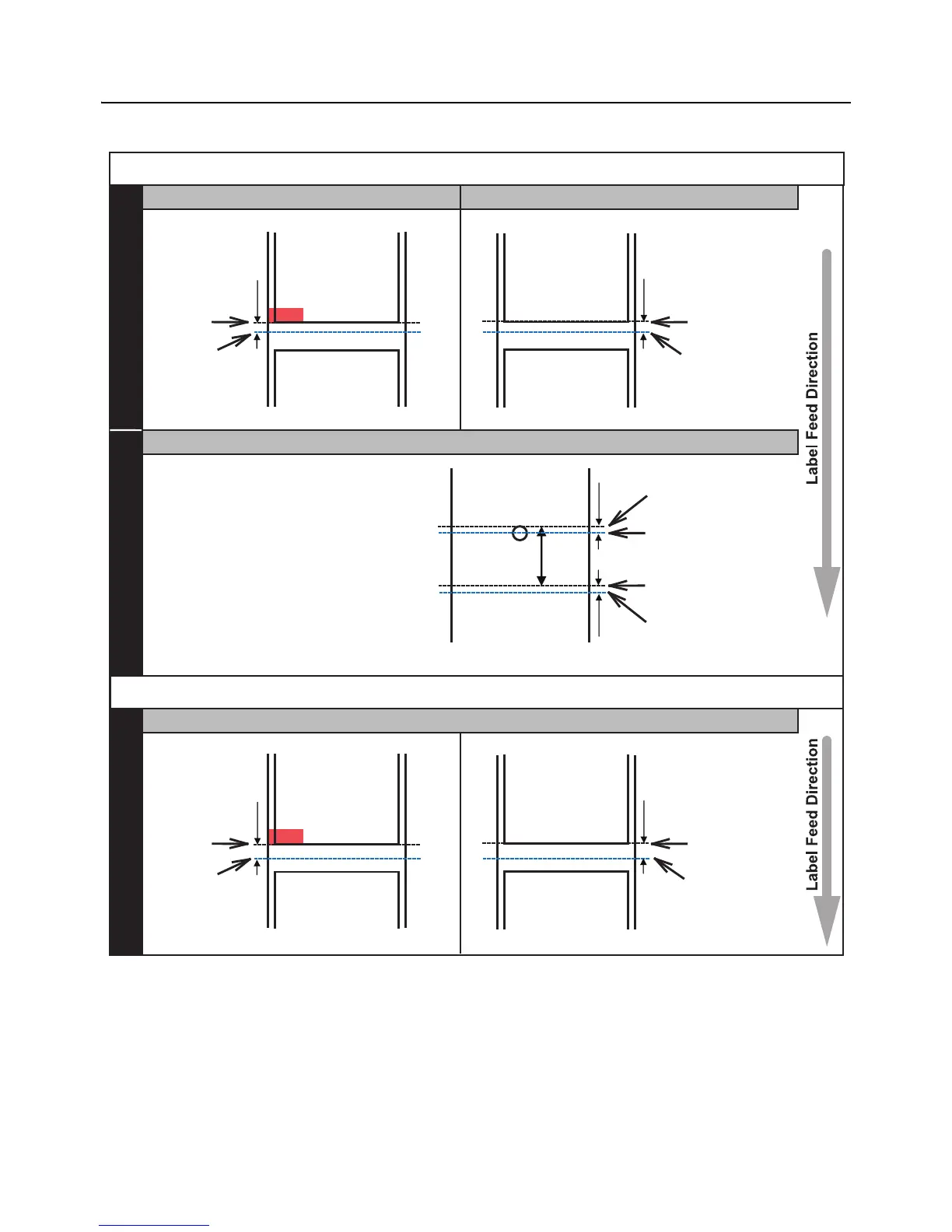

8.6 BASE REFERENCE POINT (cont’d)
I-Mark
Label
Tag
Gap
<A3>V+048H0
Cutter Mode
Center-hole
<A3>V0H0
6mm
(0.23”)
• When using the center hole tag,
the top of the tag hole becomes
the print reference position, and
1mm (0.04”) before this point
becomes the cut reference
position. When the head
density is 8 dots/mm, specify
<A3>V+048H0. When the
head density is 12 dots/mm,
specify <A3>V+072H0 to
correct 6mm (0.23") in the print
reference position.
I-Mark
Label
Gap
Print
reference
position
Print reference
position
Peel off
reference
position
1.5mm
(0.06”)
1.5mm (0.06”)
Peel off
reference
position
Dispensing Mode
Print
reference
position
1mm
(0.04”)
Print reference
position
1mm (0.04”)
Cut reference
position
Cut reference
position
Print reference position
(before correction)
Print reference position
(after correction)
Cut reference position
(before correction)
Cut reference position
(after correction)
1mm (0.04”)
1mm
(0.04”)
