Section 1: Introduction
CG2 Series Operator Manual Page 1-3

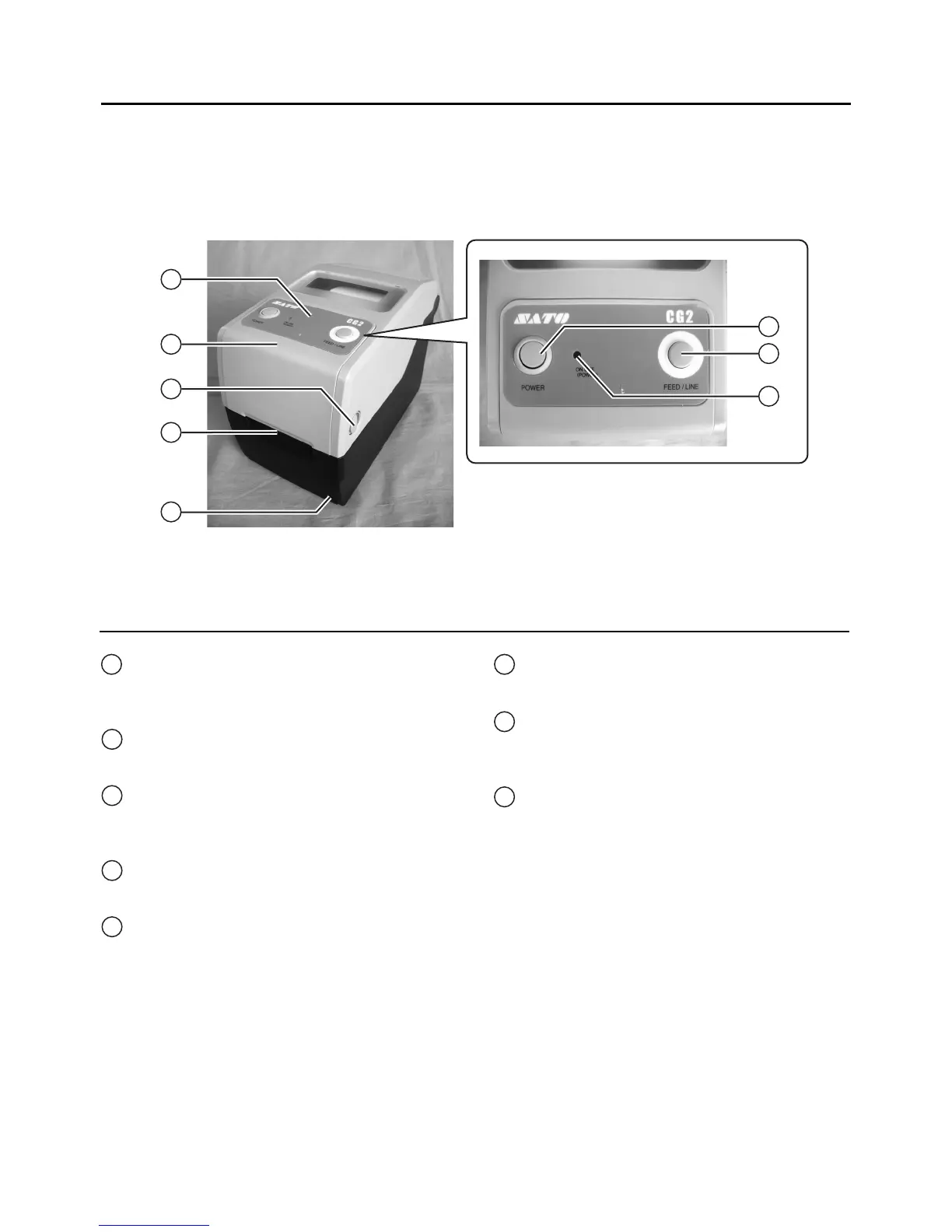

1.3 PARTS IDENTIFICATION
Operator panel
It consists of two contact buttons and one
two-color (red and green) LED indicator.
Top cover
Open this cover to load the media and ribbon.
Cover open/close latch
Pull these latches on both sides of the printer
forward to open the Top cover of the printer.
Media ejection slot
Opening for media output.
VR3 potentiometer (Offset/ Pitch)
This potentiometer adjusts the option (Cutter,
Dispenser, Tear-off) stop position (offset
position).
Pitch position adjustment is also available in
the Pitch adjustment VR mode of Factory
Adjustment mode.
POWER button
Press this button to turn the power on or off.
FEED/LINE button
Press this button to select the printer status
(online/ offline) or to feed the paper.
ON LINE (POWER) LED indicator
The LED lights green when the printer is online
and blinks green when the printer is offline.
