SATO CG2 Series User Manual

Section 1: Introduction
Page 1-4 CG2 Series Operator Manual
1.3 PARTS IDENTIFICATION (cont’d)
9
10
Type1:
USB and RS232C on-board
Type2:
USB and LAN on-board
11
12
13
15
14
11
12
13
15
16

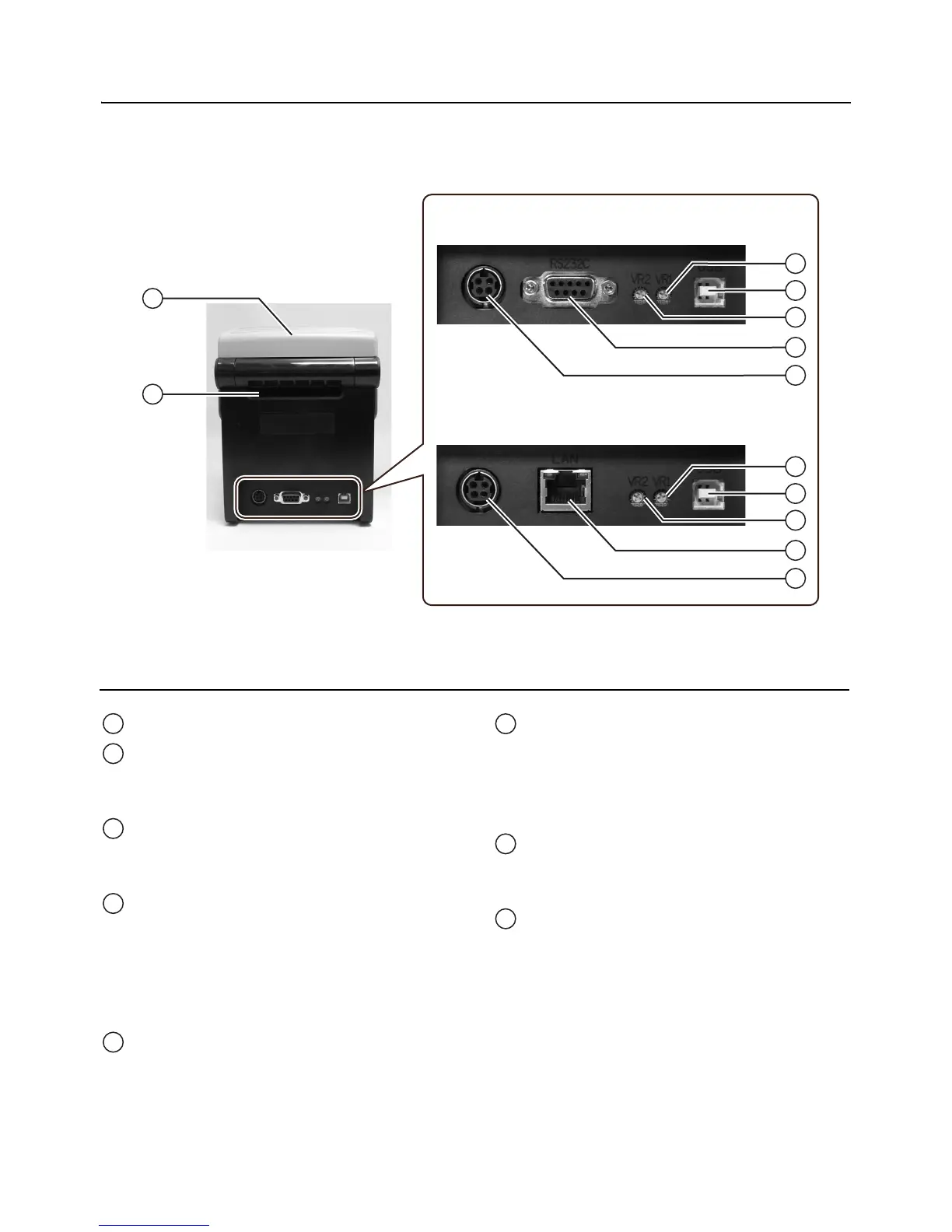

Back view
Top cover
Media inlet
An opening for Fan-folded media or media
from unwinder to feed in to the printer.
VR1 potentiometer (Gap)
This potentiometer is used to adjust the
sensing level for the gap sensor.
USB interface terminal
To connect printer to the host computer using
the USB interface.
Or, to connect the optional wireless LAN
interface unit to the printer (This applies only to
the Type 1 board).
VR2 potentiometer (I-Mark)
This potentiometer is used to adjust the
sensing level of the I-Mark sensor.
RS-232C interface terminal
To connect printer to the host computer using
RS-232C interface.
Or, to connect the optional Keypad to the
printer.
DC input power terminal
Supplies power to the printer by inserting the
power cable via the AC adapter.
LAN interface terminal
To connect printer to the host computer using
LAN interface.
9
10
11
12
13
14
15
16
