SATO CG2 Series User Manual

Section 1: Introduction
CG2 Series Operator Manual Page 1-5

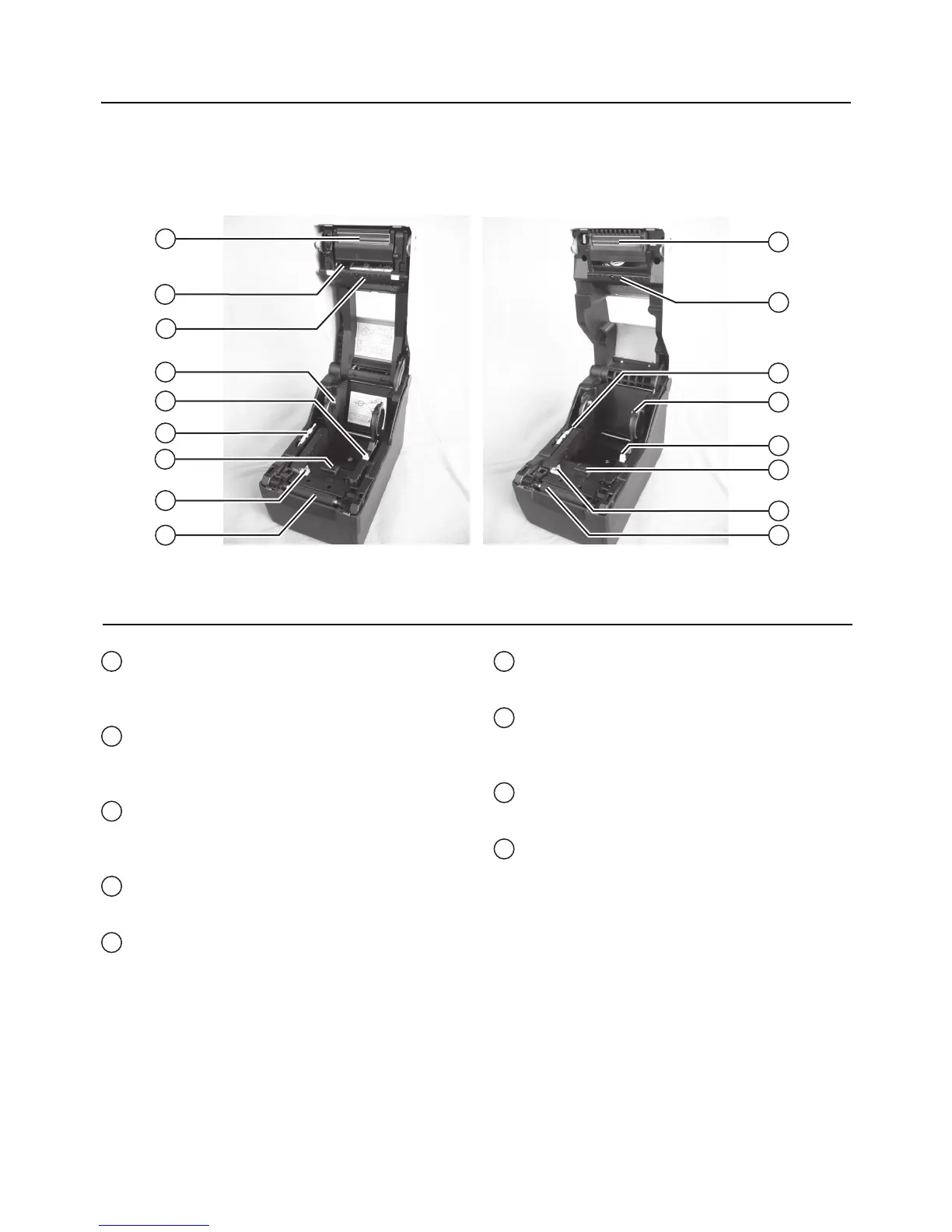

1.2 PARTS IDENTIFICATION (cont’d)
CG208DT/ CG212DT CG208TT/ CG212TT
17
22
18
19
20
21
23
24
25
17
22
19
20
21
23
24
25
Internal view when Top cover is opened
Print head
This component is used to print on the paper.
Perform maintenance at regular intervals.
Ribbon unit
Used to load the ribbon and wind up the used
ribbon.
Upper Gap sensor
Detects the gap of the label or center-hole in
the tag stock.
Roll media holder
To hold the roll media.
Media guide slide lever
Set to meet the size of the media used.
Supplied yellow microdriver
Used to adjust the potentiometers.
Lower Gap sensor
Detects the gap of the label or center-hole in
the tag stock.
I-Mark (Paper) sensor
Detects the I-Mark on the media.
Platen roller
This roller feeds the paper. Perform
maintenance at regular intervals.
17
18
19
20
21
22
23
24
25
