SATO CG2 Series User Manual

Section 8: Appendix
Page 8-4 CG2 Series Operator Manual
8.2 OPTIONAL ACCESSORIES - DISPENSER
Dispenser should only be installed by SATO qualified servicing personnel.

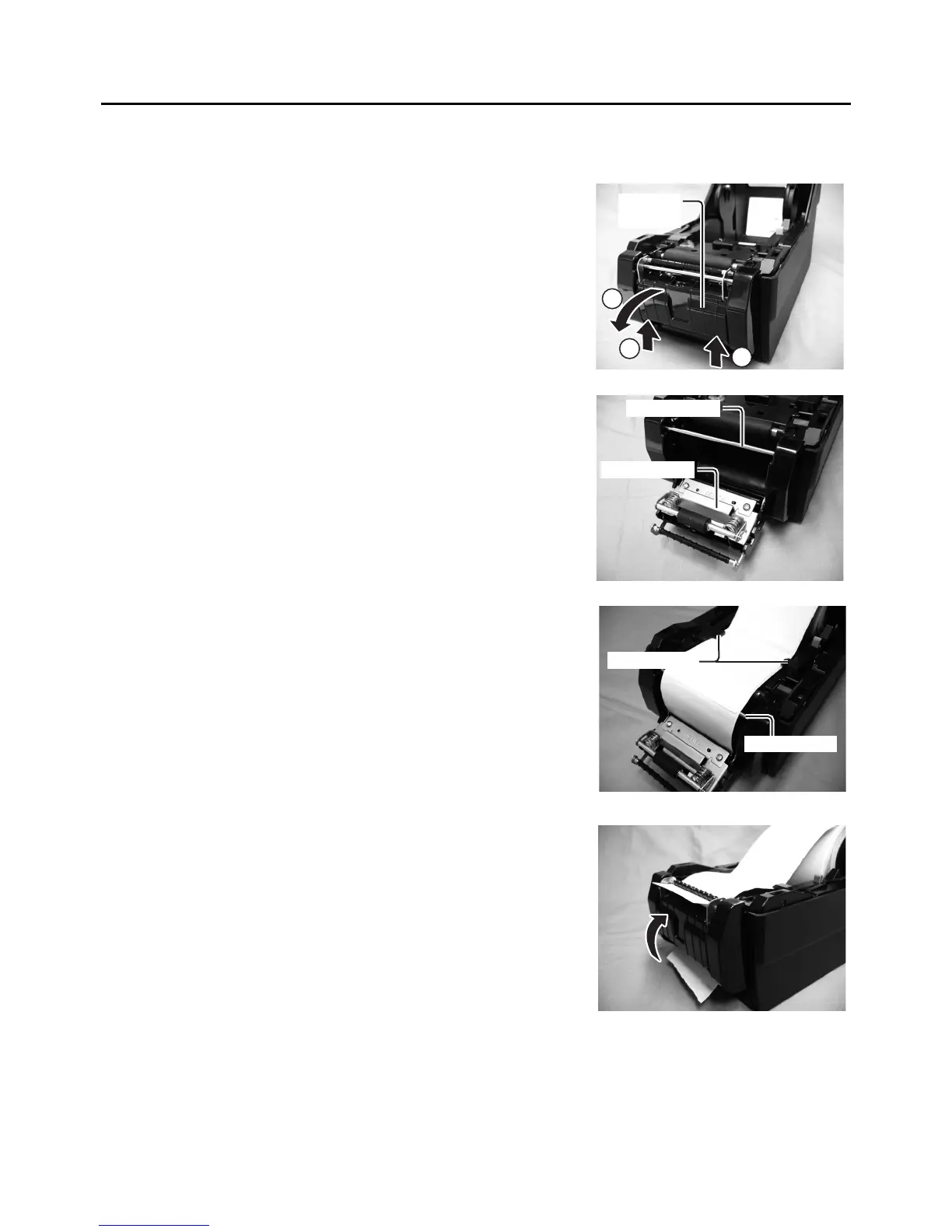

8.2.1 To route the label when the dispenser is installed
1.
With the power supply off, pull the cover open/close
latches on both sides of the printer toward you to unlock
the top cover, and then open the top cover. Make sure
that the cover rests firmly so that it will not fall forward
and injure your hands.
2. With your thumbs positioned on the two corners of the
pressure bracket, push the pressure bracket up and
pull it forward to open the pressure bracket.
3. Peel off the first two leading labels from the liner (back-
ing paper) and then load the label roll on the media
holder.
After pulling out the leading liner (backing paper), pass
the liner (backing paper) through the media guides and
then pass over the dispenser bar so as to cover it. Then
pass the liner (backing paper) under the pressure
bracket as shown.
4. If the paper is not taut, roll the paper on the media
holder so that the paper is taut.
Next, tightly close the pressure bracket with the liner
(backing paper) passing through it.
1
2
1
Pressure
bracket
Dispenser bar
Dispenser unit
Media guides
Dispenser bar
