3.3. Analogue sensor connection

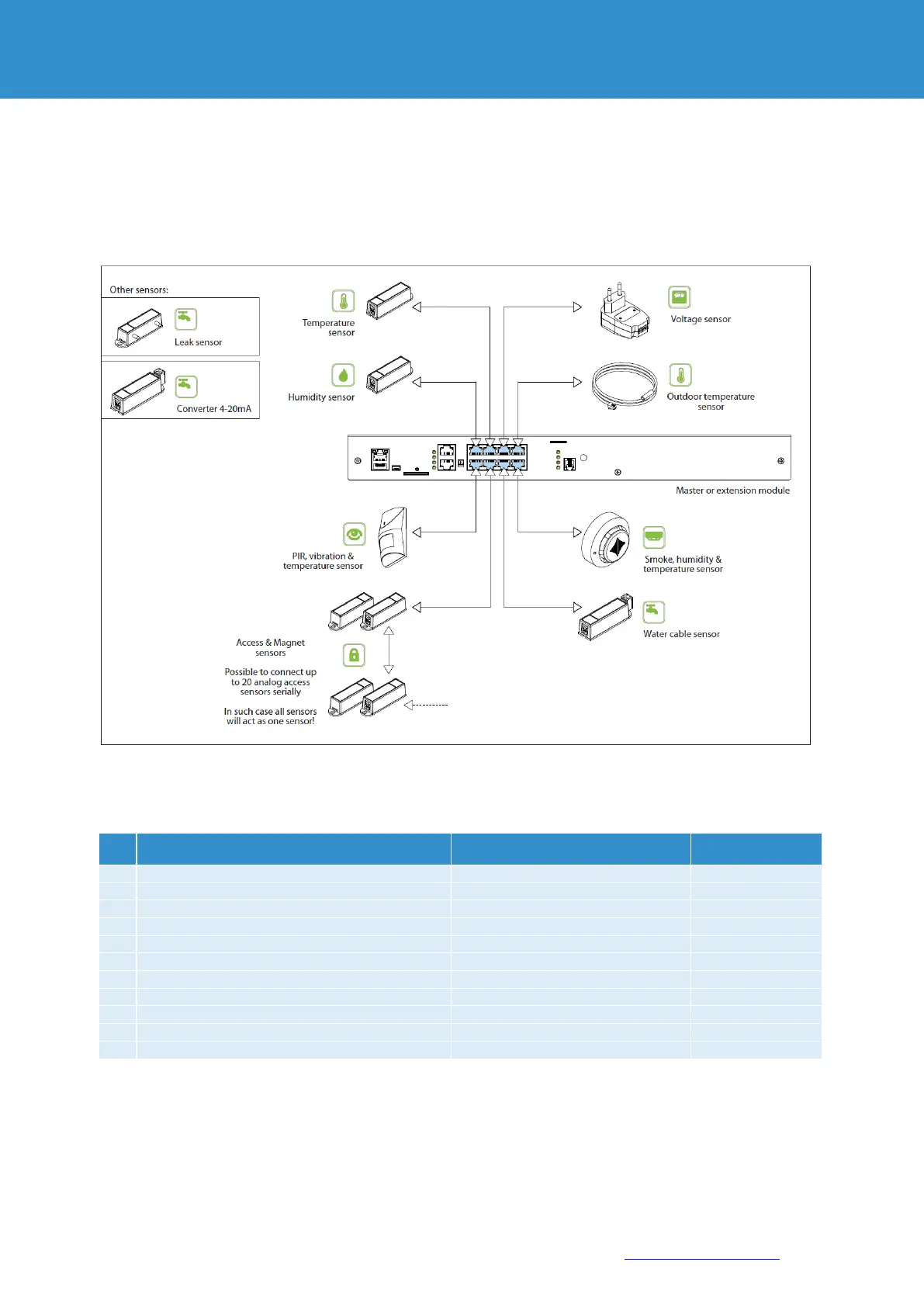

Connect analogue sensors to any analogue connection "A1 ..A8" or "sensor" using the supplied RJ-11 (6P4C)
cable. The sensor type and connection on the device are determined automatically. The sensor type and
connection on the device are determined automatically.
The following sensors are connected to the analogue port of the RMS:
Analogue sensor
Article number
Cascadable:
1
iQdata RMS temp. probe
7808200

2
iQdata RMS humidity probe
7808210

3
iQdata RMS door probe
7808220
4
iQdata RMS leak probe
7808230

6
iQdata RMS leak cable probe
7808240

7
iQdata RMS vibration probe
7808260
8
iQdata RMS IR probe
7808270

9
iQdata RMS AC monitor probe
7808280

10
iQdata RMS 4-20mA probe
7808620
11
iQdata RMS 0-75VDC probe
7808630
12
iQdata RMS smoke probe
7808250
