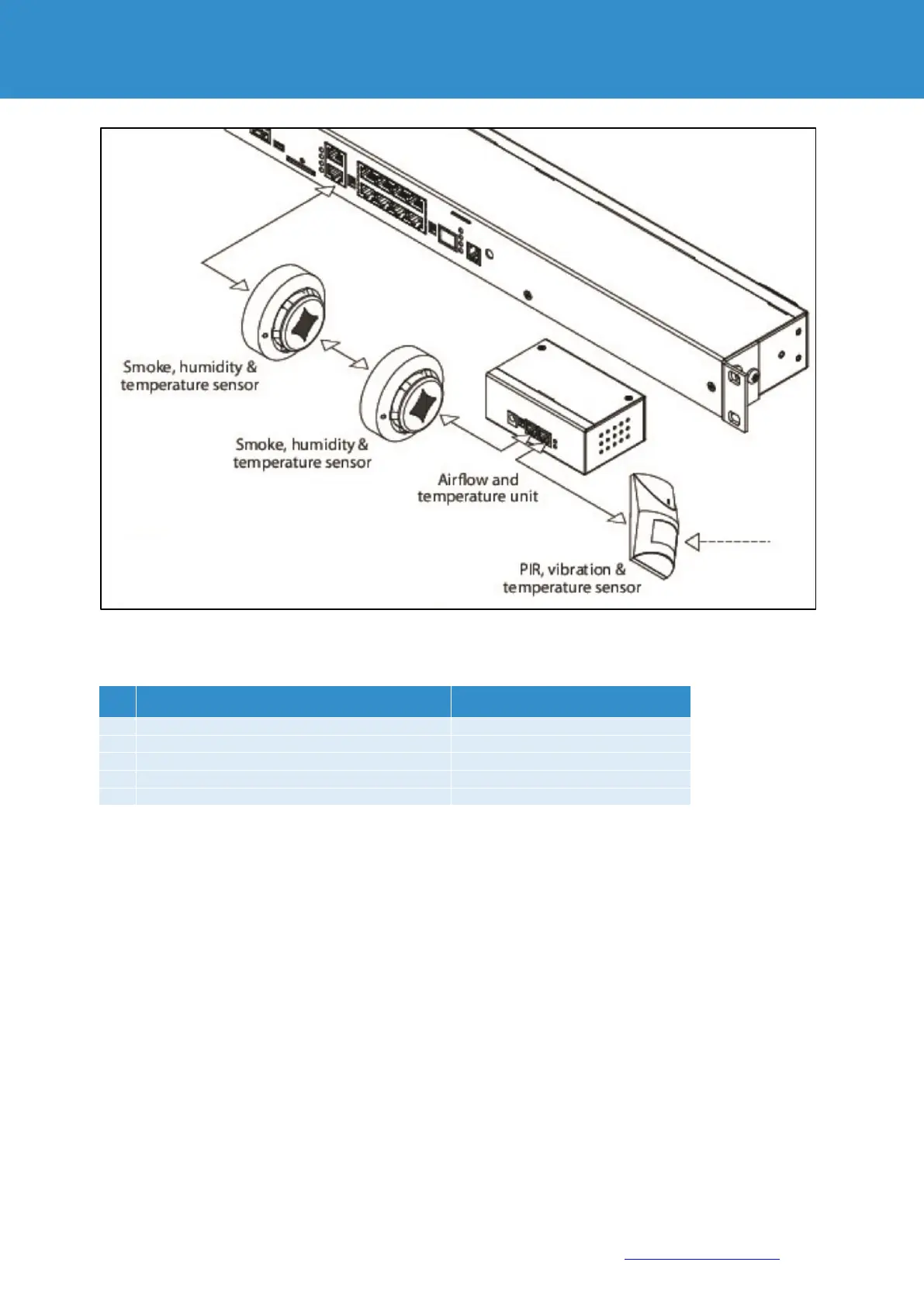

This procedure applies to the following sensors, which are supported by the device and connected to
the CAN ports:
Analogue sensor
Article number
1
iQdata RMS extension unit
7808100
2
iQdata RMS 64DI unit
7808110
3
iQdata RMS smoke- hum. - temp. probe
7808400
4
iQdata RMS pir – vibr. – temp. probe
7808410
6
iQdata RMS humi. & temp. probe
7808420
5.1. CAN connection
5.1.1. Cable and line length
The maximum length of the CAN line of the monitoring systems is 305 m.
It is recommended to use two or three pairs of UTP Cat3.5.6 cables with 24AWG copper wire.
It is also possible to use 4- or 6-wire TRONIC or UTP-CCA cables, however the maximum length of the
CAN line is reduced.
