User Manual
Smoke detector spacing
Ceiling height (m)
Detection area of a
detector
Recommended distance
between detectors
Distance of a detector
from the wall
Up to 3.5m
Up to 85
9.0m
4.5m
From 3.5 to 6.0m
up to 70
8.5m
4.0m
From 6.0 to 10.0m
up to 65
8.0m
4.0m
From 10.0 to 12.0m
up to 55
7.5m
3.5m

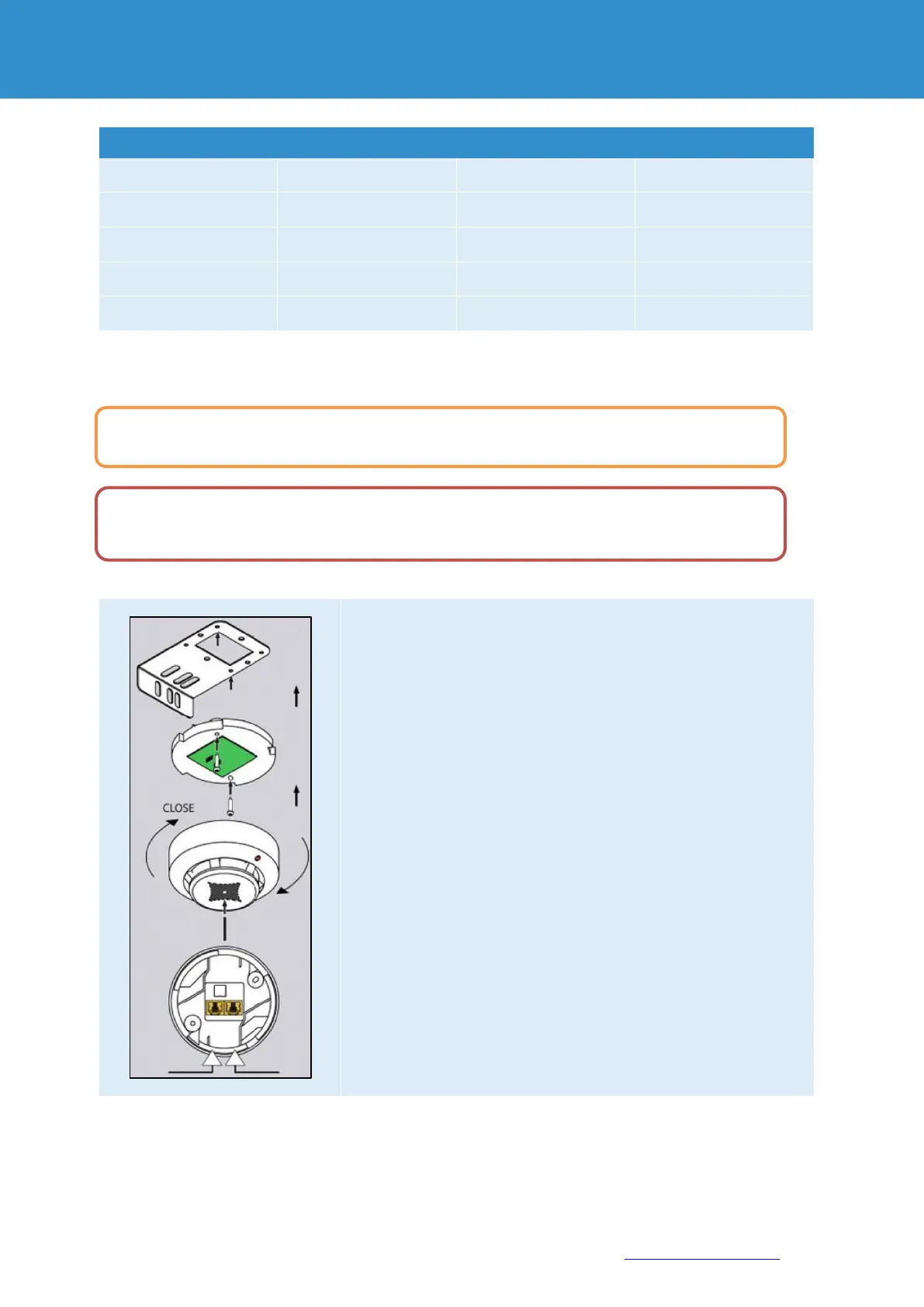

5.4.4. Installation
1)
The smoke sensor is installed using the supplied mounting plate.
 Remove the smoke sensor head from the base.
 Attach the smoke sensor base to the mounting plate using the
M4 x 10 screws provided.
 Put the sensor head back on the base and secure it by turning it
until it clicks into place.
 Attach the mounting plate to the housing frame using the 4.8 x
19 screws.
 Remove the red protective cap!
To install extensions, switch the device off, disconnect it from the socket or at the voltage input.
It is essential to ensure that the smoke sensor is always installed with the sensor head down and that the
slots are not covered. In all other positions, the smoke cannot be reliably detected.
