User Manual
Weight:
0.6kg

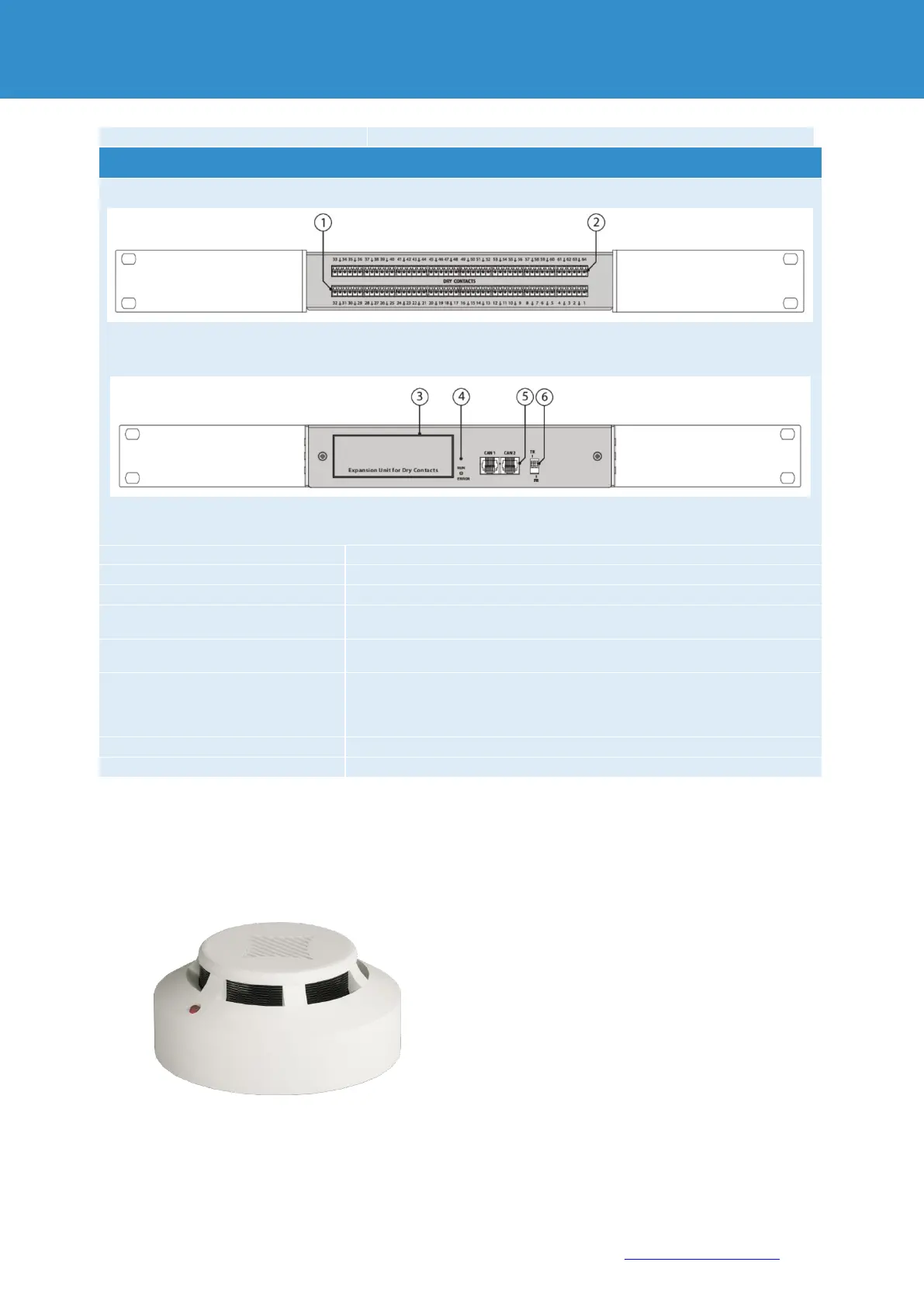

Connections 64DI unit
1. “1…32”
32x potential-free inputs
2. “33. 64”
32x potential-free inputs
3. "Label"
Product description
4. LEDs: “RUN”
shows the connection status of the device to the main module
LEDs: “ERR”
"ERR" - indicates that the device has lost the connection to the main
module
5. “CAN”
"CAN" - digital connector RJ12 for connection to the master module, CAN
sensors or CAN extensions
a CAN bus, with auto-sensing.
6. “TR”
Termination switch at the end of a CAN chain
“FR”
Memory switch for reprogramming the module
5.4. smoke - hum. - temp. probe
Combination sensor for recording
temperature, humidity as well as smoke.
Sensor unit for indoor installation for
monitoring critical areas such as
server rooms or offices.
All detectors can be connected in series
and thus a network of up to 10 detectors
can be set up. The sensor is detected
automatically by the system.
If a fire is detected, the sensor must be
reset manually in the WEB GUI.
If a fire is detected, the sensor must be
reset manually in the WEB GUI.
