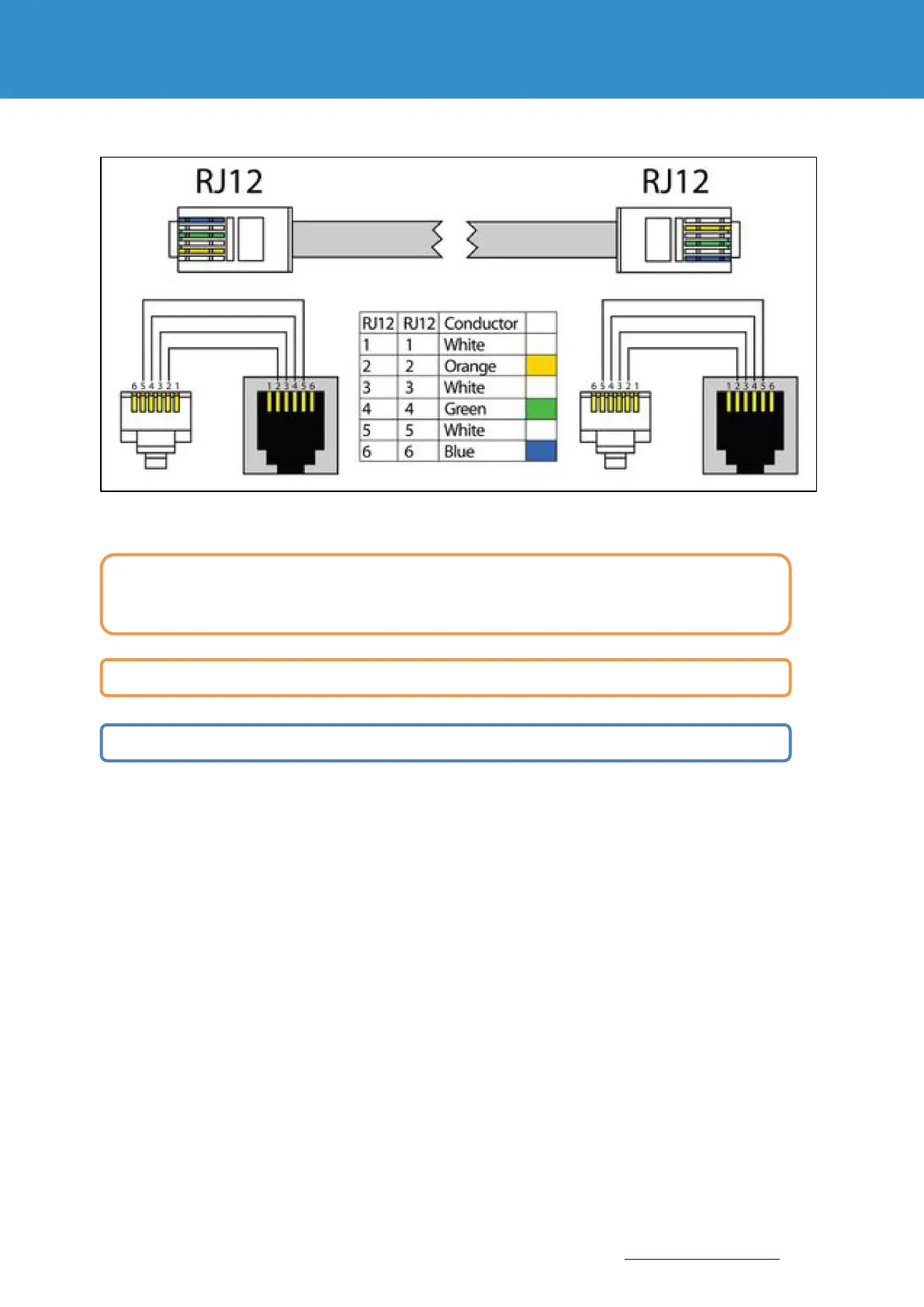

5.1.2 Pin assignment
5.1.3. TR termination switch
5.1.4. Add CAN modules
To connect the module to the CAN bus of the system, select the interface -> CAN configuration ->
select tab CAN1 or CAN2 (select the connected physical CAN1 or CAN2 port on the master module).
Press the "Configure" button and wait. The system starts by querying the CAN bus, displaying the data
strings and reporting the successful connection. The connection to the input CAN modules and sensors
appears in the tab in the list.
Press the "Apply" button and then the "Restart" button.
Press the "Apply" button and then the "Restart" button.
Update or wait in the "System tree" column until new devices or new sensors appear. The green LED
"CAN" lights up on the device.
If the poll is reset to "Refresh" after clicking the "Configure" button, the line is not connected or the
terminators on the tyre are not aligned. Check and change the status of the TR terminators on the
modules or check and change the connection cabling if necessary.
The TR switch on the last sensor on a CAN chain must always be terminated ("ON").
On all other sensors in the CAN chain, the TR switch must be set to "OFF".
FR should always be set to "OFF".
The TR switch is always the DP switch that is closest to the CAN bus.
