5.1.5. LED indicator light
CAN sensors have LEDs that indicate the following states:
 Steady red light, green flickering - no communication with the master module
 Steady red light, green is off - there is a connection to the master unit, but this is not configured
in the system.
 Red is off, green is on - function is OK
 All LEDs are off: no voltage or sensor is defective.

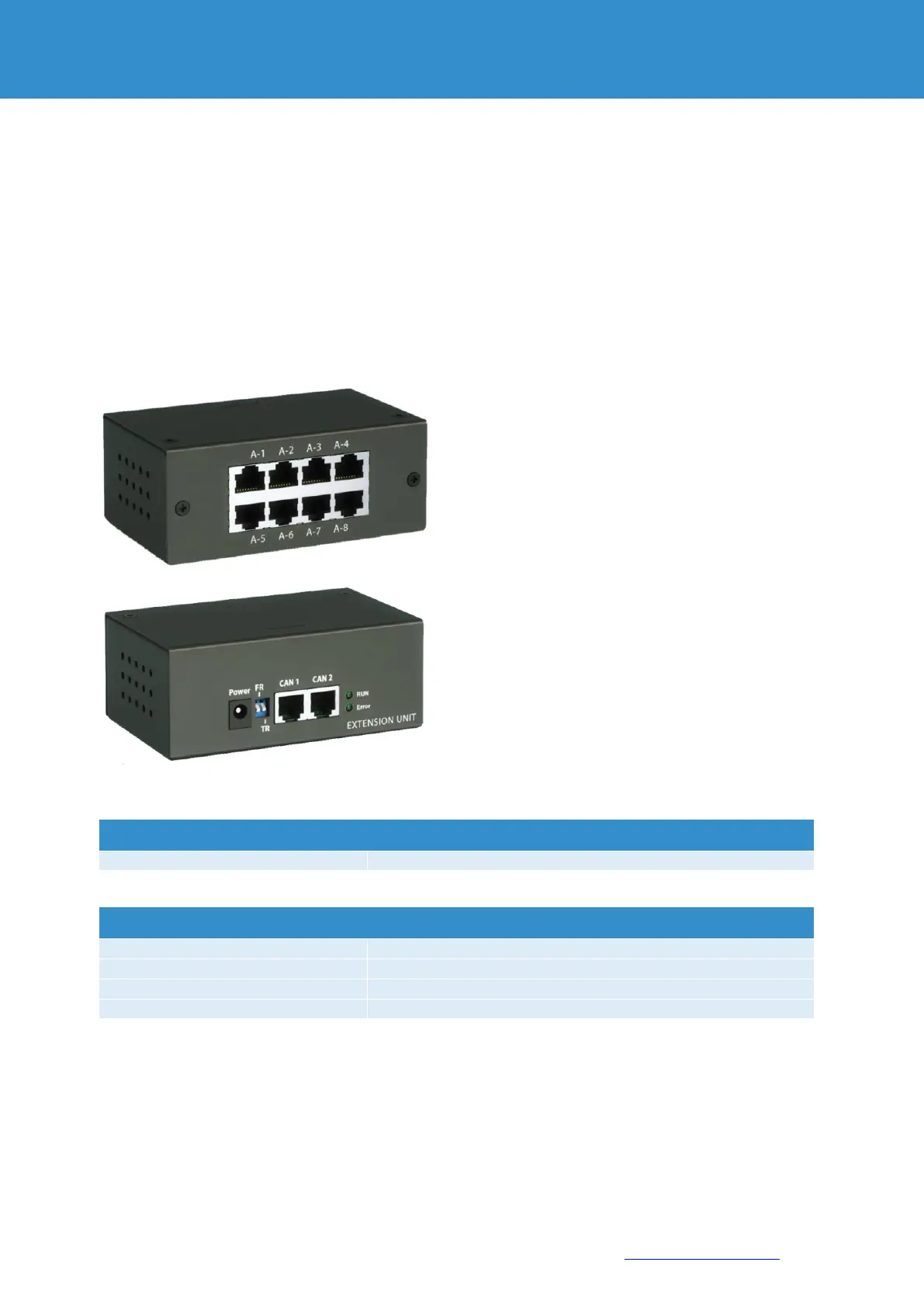

5.2. Extension unit
Article number
7808100
iQdata RMS extension unit
Dimensions / weight
Width (W):
110.00 mm
Depth (D):
68.00 mm
Height (H):
40.00 mm
Weight:
0.5 kg
With this module, the number of analogue
sensors per RMS is to be increased by 8
ports.
The module is connected to a free RMS
CAN port or a CAN sensor and
automatically recognised by the RMS
system.
The maximum distance on the CAN bus
must not exceed 305 metres.
Depending on the type, connected
sensors can be between 50 and 100 m
apart.
