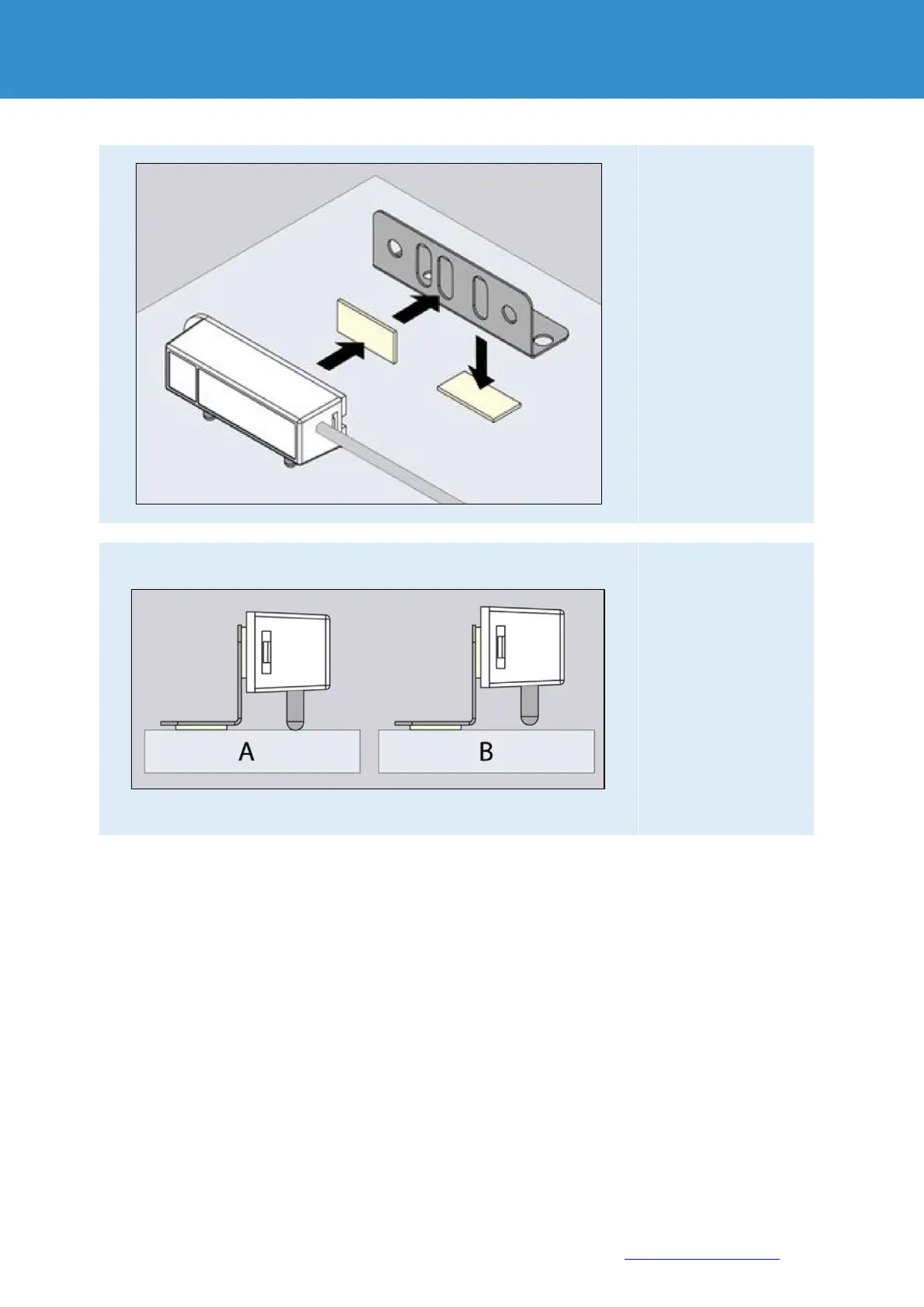

Glue the mounting
bracket to the bottom.
Glue the sensor to the
mounting bracket by
following the rule in the
next paragraph.
Depending on the
surface on which the
sensor is to be installed,
follow either A or B.
A) If the surface is not
conductive, mount the
sensor as close to the
surface as possible.
B) If the surface is
conductive, then the
circuit is bridged between
left and right contact.
Mount the sensor at a
distance from the
surface.
