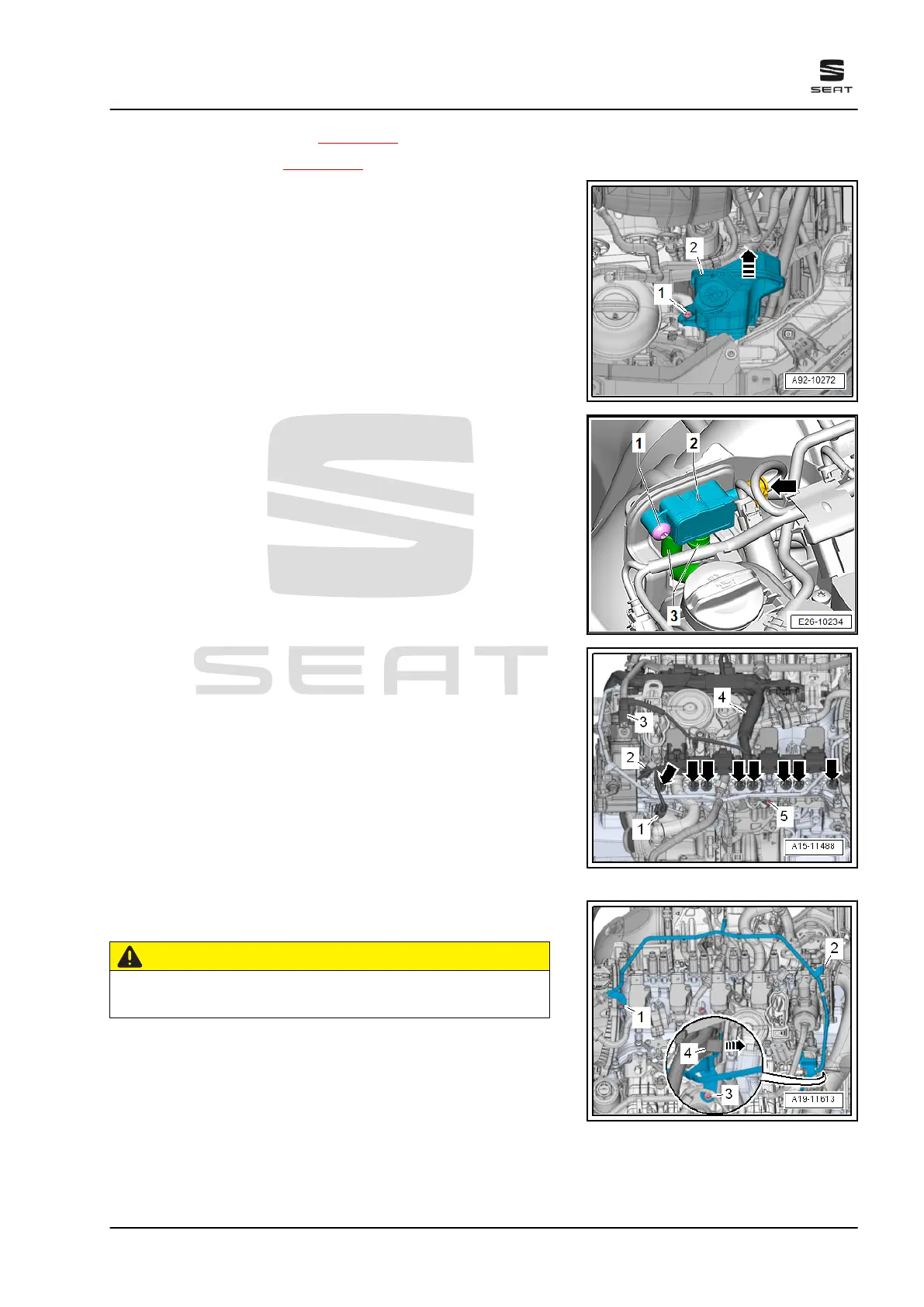

– Remove coolant pipe (top) ⇒ page 289 .
– Remove ignition coils ⇒ page 452 .
Vehicles with windscreen washer tank, right side:
– Remove windscreen washer tank filler -2- ⇒ Electrical system;
Rep. gr. 92 ; Windscreen washer system; Removing and in‐
stalling tank for windscreen washer system .
For vehicles with particulate filter
– Disconnect electrical connector -arrow-from pressure differ‐
ential sender for particulate filter - G1037- .
Continued for all vehicles
– Disconnect connectors:
1 - For turbocharger air recirculation valve - N249-
2 - For Hall sender 3 - G300-
3 - For the fuel metering valve - N290-
– Unplug electrical connectors -arrows- at actuators for cam‐
shaft adjustment.
– Remove bolt -5- and move earth wiring clear.
– Move electrical wiring harness clear at clip -4- and swivel it
forwards.
– Release fasteners -arrow-, detach wiring duct upwards from
bracket and press forwards.
CAUTION
Risk of damage to coolant pipes caused by deformation.
– Never attempt to reshape the coolant pipe.
– Remove bolts -1, 2, 3- and carefully swivel coolant line towards
rear slightly.
