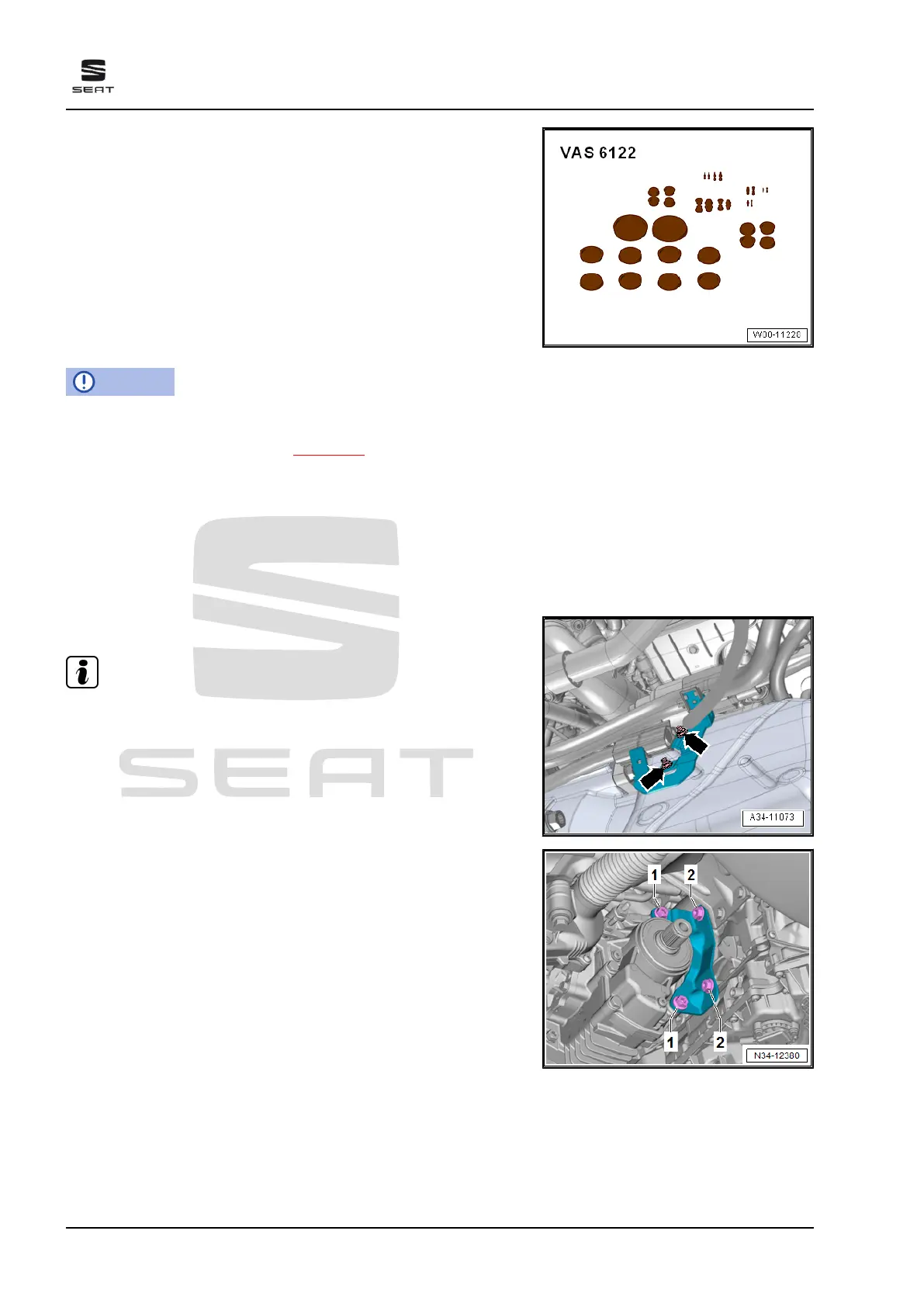

♦ Engine bung set - VAS 6122-
NOTICE
Secondary damage from defective needle bearing.
– If engine and gearbox are separated, needle bearing in
crankshaft must be renewed ⇒ page 82 .
Working sequence
• Engine/gearbox assembly removed and attached to engine
bracket - T10497- .
– Remove starter ⇒ Electrical system; Rep. gr. 27 ; Starter;
Removing and installing starter ,
– Unscrew coolant pipe from gearbox.
– Unscrew nuts -arrows-, and remove bracket at front of sump.
Note
The studs are welded on to the front of the oil pan.
Vehicles with four wheel drive:
– Unscrew bolts-1, 2- and remove the holders of the bevel box.
Ateca 2017 ➤ , León 2013 ➤ , León ST 2013 ➤
4 cyl. petrol engine (1.8 l and 2.0 l with direct injection, 4 V, exhaust gas turbocharger, timing chain,
EA 888 III. Gen) - Edition 10.2018
32 Rep. gr.10 - Removing and installing engine
