110 User’s Manual
6.5 DAQlink III Analog Output
The DAQlink III unit has a built in Digital to Analog convertor. This D to A unit allows
the DAQlink III to output “Test Waveforms” for testing of the DAQlink III unit.
WARNING: The Analog Output is designed for Advanced Users Only. From
Normal operation always set Analog Output to “NONE”

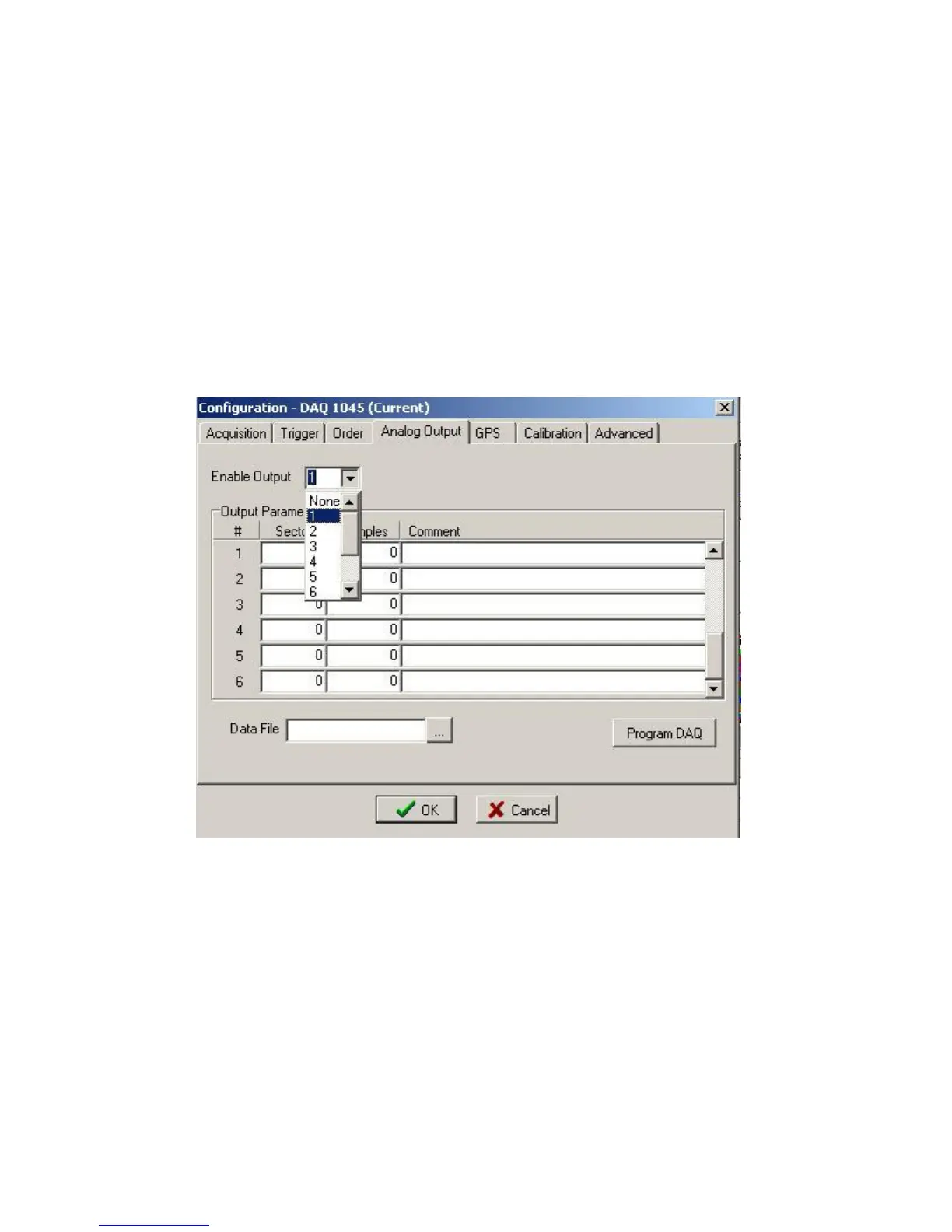

Various Test Waveforms are built into the DAQlink III unit.
Output #1 – Step Function (0.3 seconds Step at 0.75 volts)
Output #2 - 70 Hz sine wave (RMS = 0.078 volts)
Output #3 – Swept Frequency (10 to 500 Hz) (RMS = 0.078 volts)
To Next Page
