5.5.3 Plot Information
The plot information tab shows the status of the plot selections for the current record.

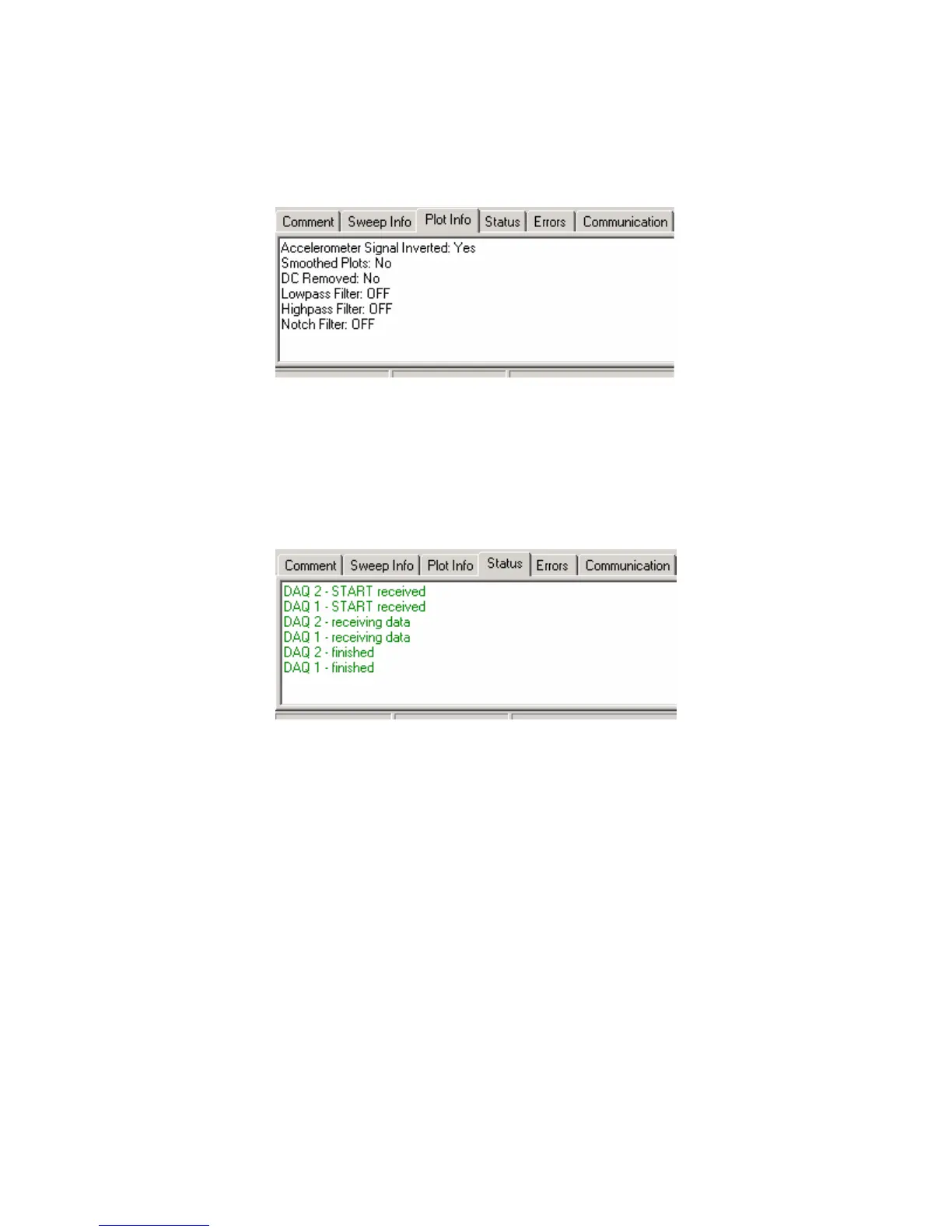

Figure 5.5.3 Plot Information
5.5.4 Status
The Status tab shows the status of the DAQlink IIIs connected to the system. This is very
useful in troubleshooting wireless Ethernet connections.
Figure 5.5.413 Status
5.5.5 Errors
The Error tab shows any communications error or error detected by the DAQlink III unit.
If an error occurs this tab is automatically displayed.
