Seismic Source DAQlink III - First Break Pick Feature

80 User’s Manual
5.7 First Break Pick Feature
The Edit -Picker menu or the button on the tool bar is used to enable the first break
pick feature. With this feature enabled go to the point on the screen and left click the mouse.

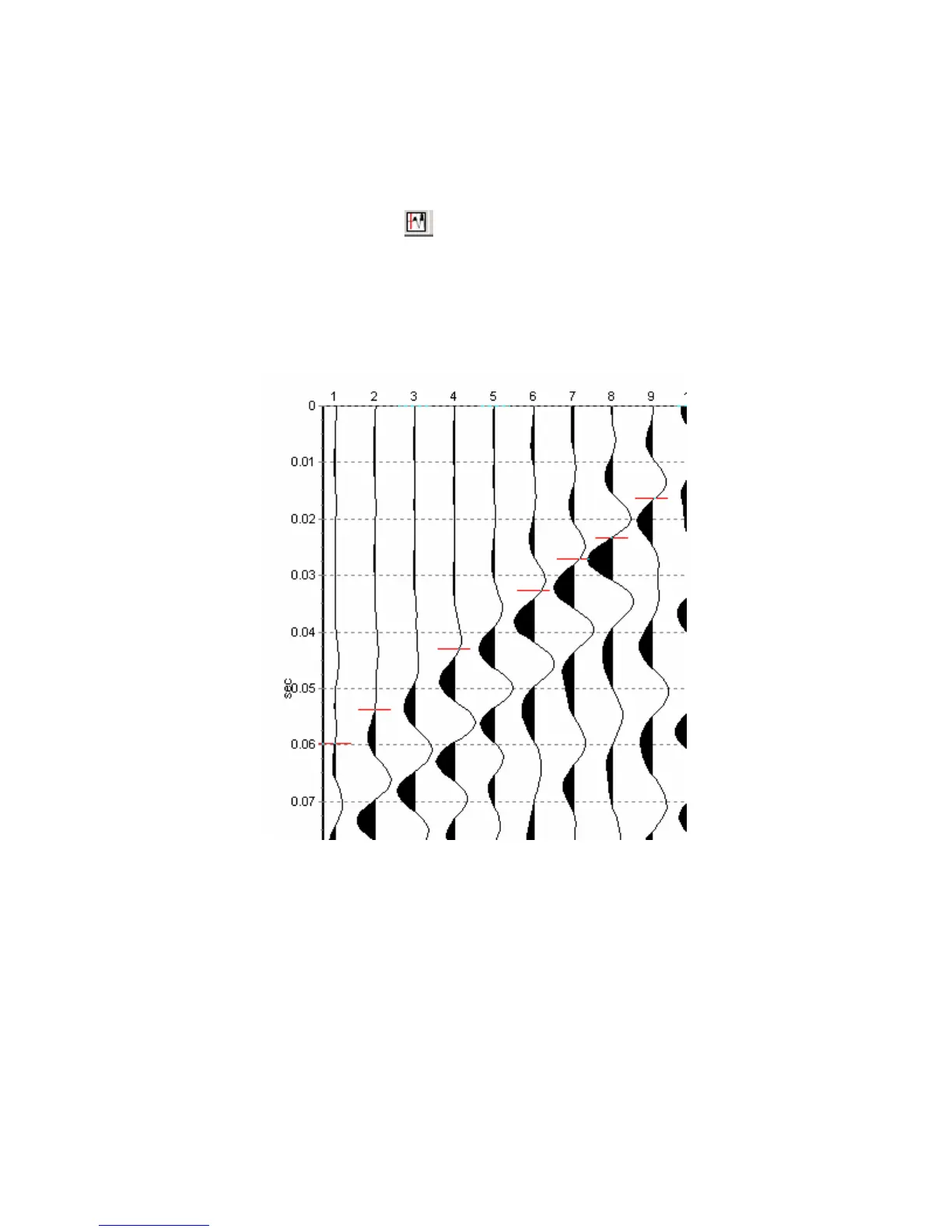

Figure 5.7.1 Picks on Seismic Plots
