Seismic Source DAQlink III - Page 42

42 User’s Manual
Optional Gains are available.

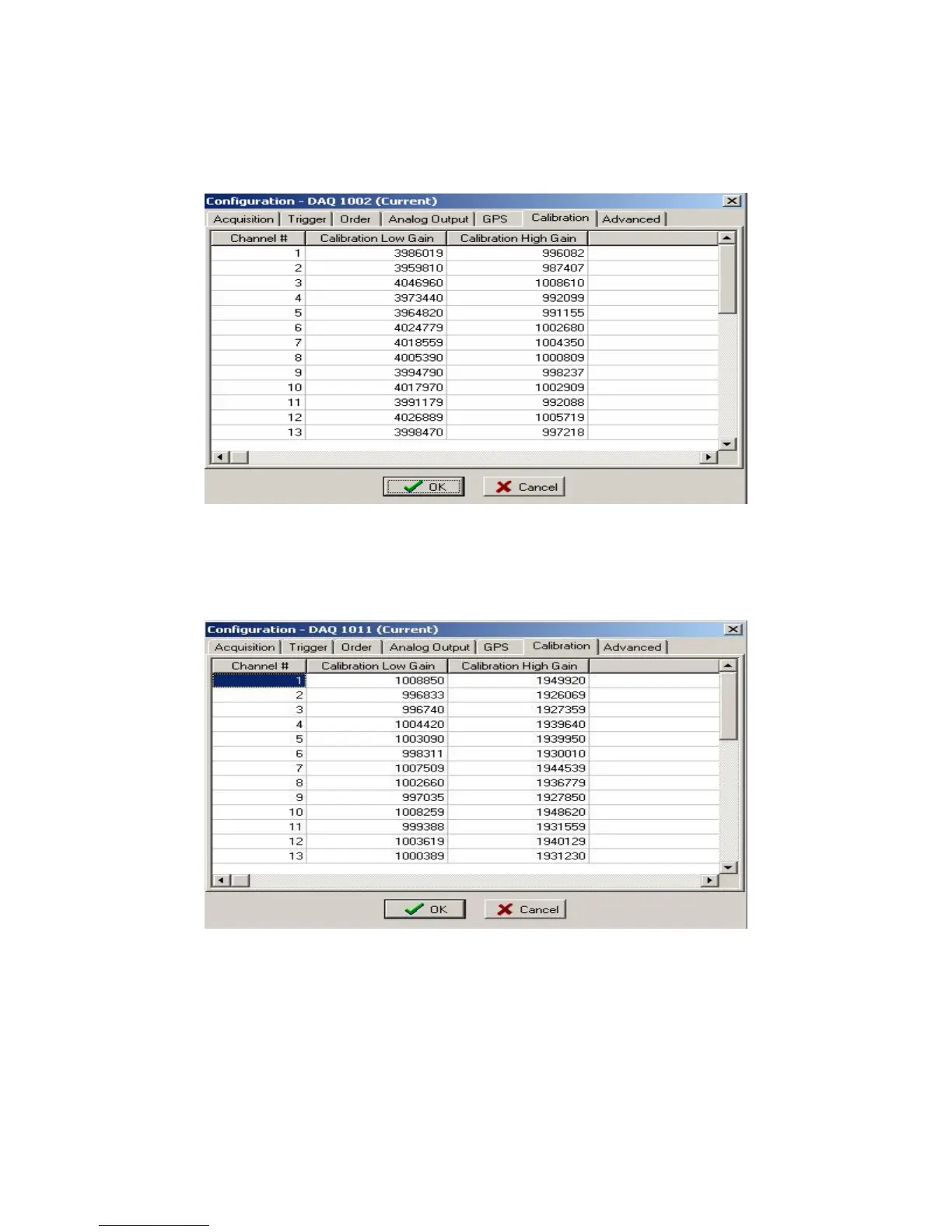

Calibration Table below shows:
• Low Gain at 1.79 volts peak to peak ( 2 x less than standard)
• High Gain is 0.22 volts peak to peak (about 2 x more than standard)
Figure 4.3.6a Device Calibration
Calibration Table below shows:
• Low Gain at 7.16 volts peak to peak ( 2 x more than standard)
• High Gain is 0.11 volts peak to peak (standard)
Figure 4.3.6b Device Calibration
