82 User’s Manual

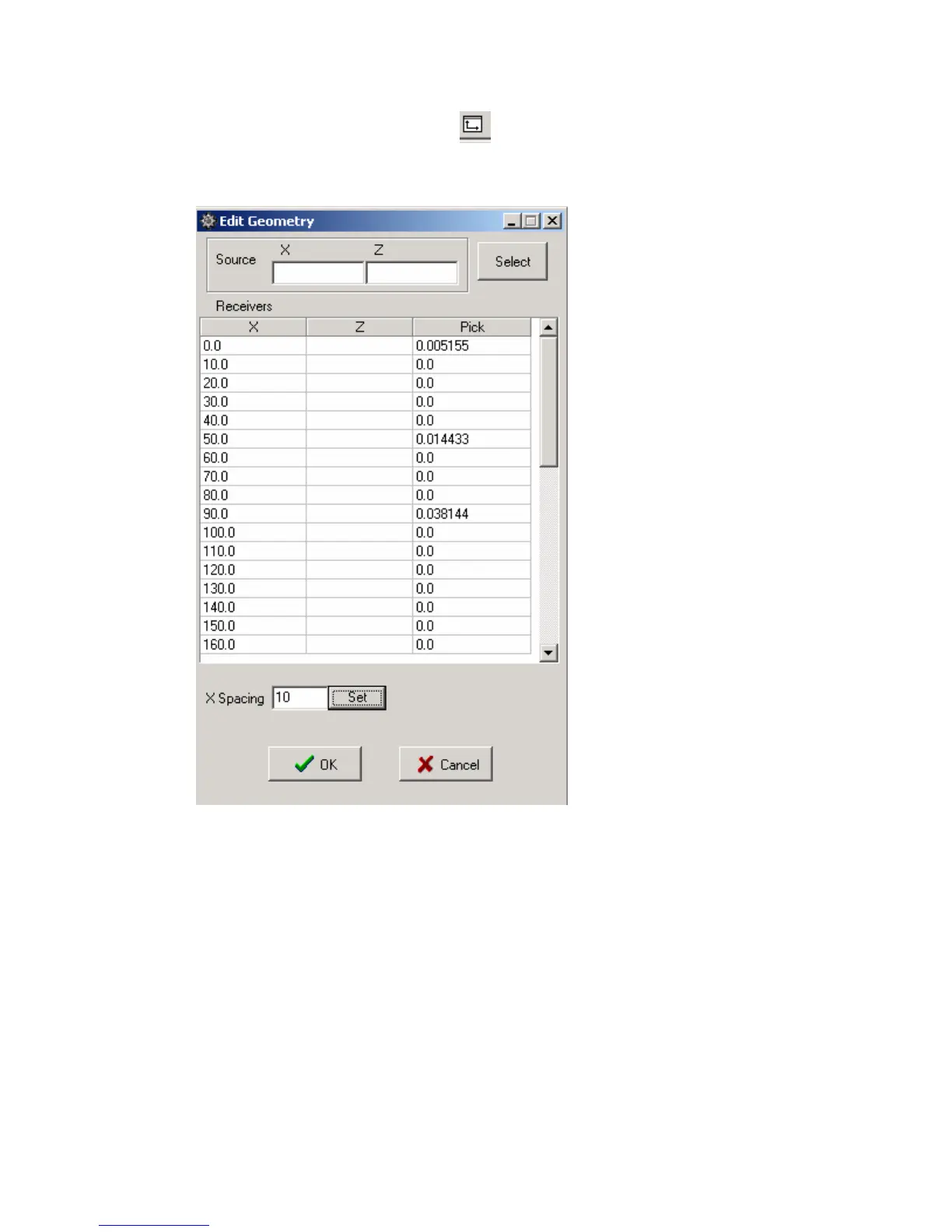

The Edit – Geometry selection or the on the toolbar is used to select the geometry
window.
The X (distance) and Z (elevation) of each geophone is entered in the table.
Figure 5.7.2 Edit Geometry Screen
The File –Save pick selection is used to save the picks to a File. This pick file is in a
standard format to be used by other processing software.
